G4V Crop Cruiser

The population is growing and the need for cheap, clean, green food is rising quickly.

Over the last 10 years, the number of vegetable growers in Australia fell by 37%, yet the area planted still increased substantially.* The result is farms are getting a lot bigger, and so is the requirement for machinery.


Introducing the all-new G4V
Goldacres has observed this trend and designed a purpose-built sophisticated sprayer that is suited to the horticultural industry. Whilst from a distance the sprayer may look similar to its dry land broadacre and cotton sprayer cousins, a closer look will show it’s much different. Horticultural operators require slower speeds, higher water rates, narrow wheel tracks and a tight turning radius.
The all-new G4V sprayer from Goldacres offers a new level of performance and efficiency not seen before. The design is centred around a 4000L main product tank complemented by booms with widths up to 36m. Riding on large diameter 46” wheels and tyres combined with four-wheel steering to provide an outstanding ride and sprayer maneuverability. Cummins power coupled to a four-wheel drive hydro mechanical driveline all adds up to give the G4V outstanding tractive performance and efficiency results in almost any situation.
The G4V has been packaged with an uncompromising level of quality components, integrated systems, operator ergonomics and high-end specifications.
If you are serious about farming, then look no further than the G4V for your spraying solution.


Long days and nights operating the sprayer can be demanding on the driver

That’s why the G4V Series Crop Cruiser features a premium cabin with essential features and comforts to help you get through. Goldacres designers have delivered a cabin that has everything you need, and nothing you don’t.

  1. Easy to use fully moulded operator side console featuring all sprayer function control switches, drink holder and storage area.
  2. Acceleration and braking controlled by a propulsion lever. Cruise speed adjusted by a rotary knob.
  3. Grammer air ride seat with adjustable arm rest and seat belt.
  4. Fold away passenger seat.
  5. Climate controlled air conditioner and heater with active carbon filtration. Ducted overhead storage box for drinks
  6. Curved front and rear glass, full length side glass and large front windscreen wiper.
  7. Engine monitor.
  8. Two way tilt adjustable and telescopic steering column.
  9. Twin USB charge points plus 12v power take off point for electronic accessories.
  10. Pull down front blind.
  11. Accessory mounting rail.
  12. Bluetooth AM/FM radio.

Stylish roof design with forward and rear facing lights (Not shown)

Hydro-mechanical drive & suspension system
Hydro-mechanical drive & suspension system

The G4V Crop Cruiser utilizes a combination of hydrostatic and mechanical drive systems to transfer maximum power to all four wheels with minimum fuel usage.

At the heart of the system is a single high capacity variable displacement hydraulic pump and motor. These two components form the hydrostatic part of the drive system and allow the operator to adjust the sprayer speed in smooth infinite amounts. In addition, the onboard computer adjusts the engine rpm to precisely match the required speed setting. The result is fuel usage averages as low as 14 l/hr and reduced cabin noise.

  1. 123kw (165hp) Cummins QSB 4.5L Tier 3 engine.
  2. Forward mounted vertically stacked cooling system for fuel, charge air, hydrostatic transmission, water jacket and air conditioning allows operation in the hottest of days.
  3. Single variable displacement hydraulic transmission and high capacity load sensing pumps.
  4. Single variable displacement hydraulic transmission motor. Motor features three-step displacement limiting to provide the right speed and torque for every situation.
  5. Two-speed transfer case with centre differential lock for full-time 4WD operation. Oil cooled gear set keeps operating temperatures under control for the most demanding work conditions.
  6. Both front and rear axles feature limited slip differentials to ensure all wheels receive the same torque in slippery conditions. Inboard wet multi-disc brakes on the front axle provide long life, service free operation, even in muddy conditions. Final drive legs feature gear reductions to enable large diameter wheels to be fitted.
  7. Using both the propulsion lever and the speed limiter control knob the operator can set the desired maximum ground speed. A simple push of the lever to full speed and adjust the knob will set the ground speed. When required to slow the sprayer pull back the lever. When ready to resume the set speed simply push the lever to the fully forward position and the central computer will take care of the rest. It’s simple and precise.
  8. The speed mode switch enables three different driving modes depending on the ground conditions. Essentially the mode switch adjusts the displacement of the hydraulic motor which in turn increases or decreases the amount of torque available. Combine this feature with the two-speed transfer box and you have a sprayer capable of operating in just about any condition. The sprayer can be operated at speeds up to 40 km/hr.
  9. As a standard feature, the G4V is equipped with airbag suspension on all four corners. The axles are held in position using five high strength torque rods, these are strategically mounted to allow a very tight turning radius, even with large diameter wheels.

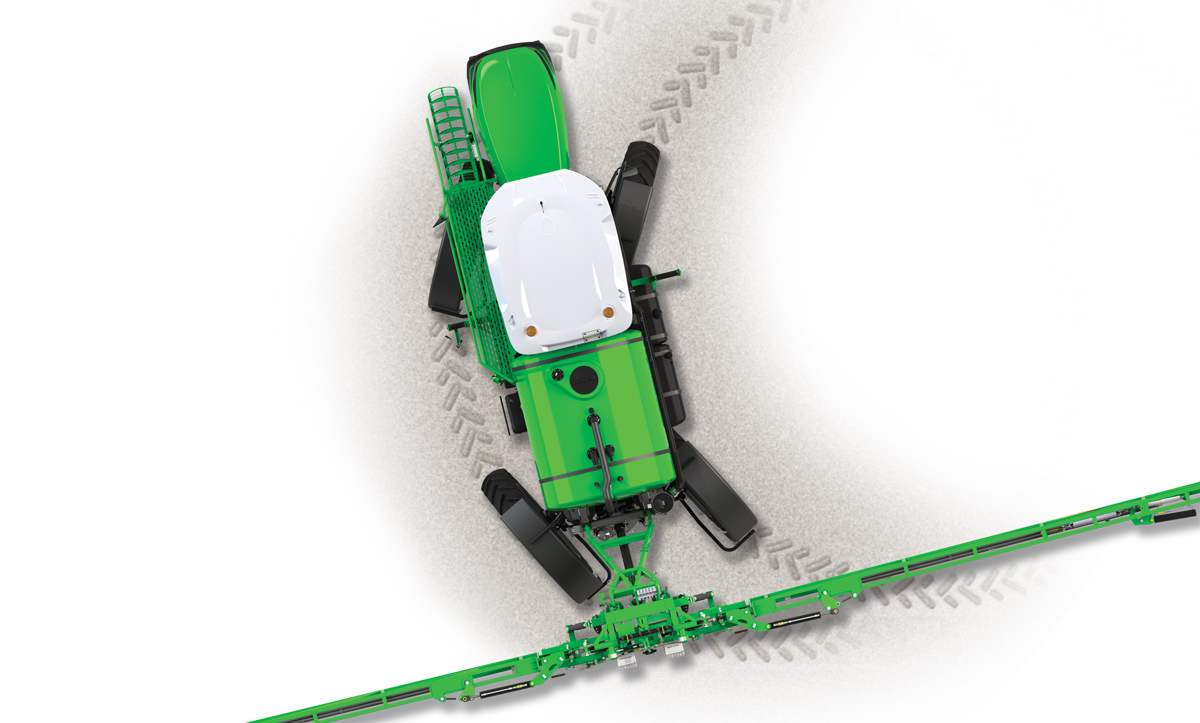

Tight headlands, no worries
Tight headlands, no worries

G4V four-wheel steering equals more hectares for cropping.

The fully welded semi truss rigid chassis features narrow frame rails, unique chassis and boom suspension system to allow very sharp steering angles even with large diameter wheels.
The switchable four-wheel steering (4WS) gives a turning radius of just 2.9m* (inside of tyre) when fitted with large diameter 380/90R46 tyres and a 1.81m wheel track.
The system is controlled using angle sensors fitted to both front and rear axles in conjunction with the central sprayer controller. When switching back to two-wheel steering (2WS) the rear wheels will automatically self-centre.
At speeds above 15km/h the 4WS will automatically disengage and revert back to 2WS. This greatly improves stability and safety at these higher speeds.

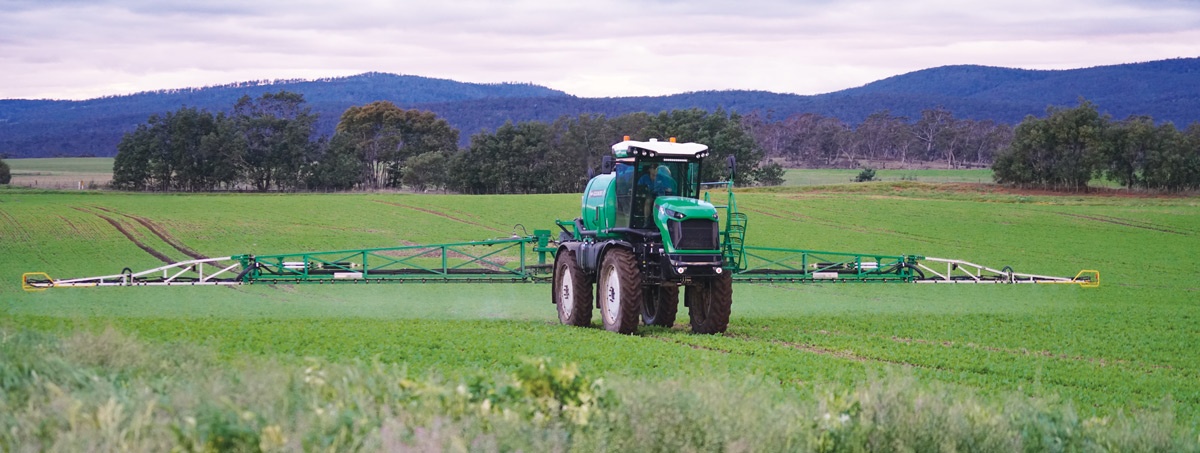

Wheel track options
Wheel track options

Designed to suit many Rowcrop applications the G4V sprayers feature track width adjustment by changing the dish and rim configuration.

Wheel tracks from 1.81m – 2.36m can be achieved by reversing the bolted rim and disk to allow up to 16 track width variations. Tyre size 380/90R46.
Special wheel tracks are available upon request.

Wheel track Offset

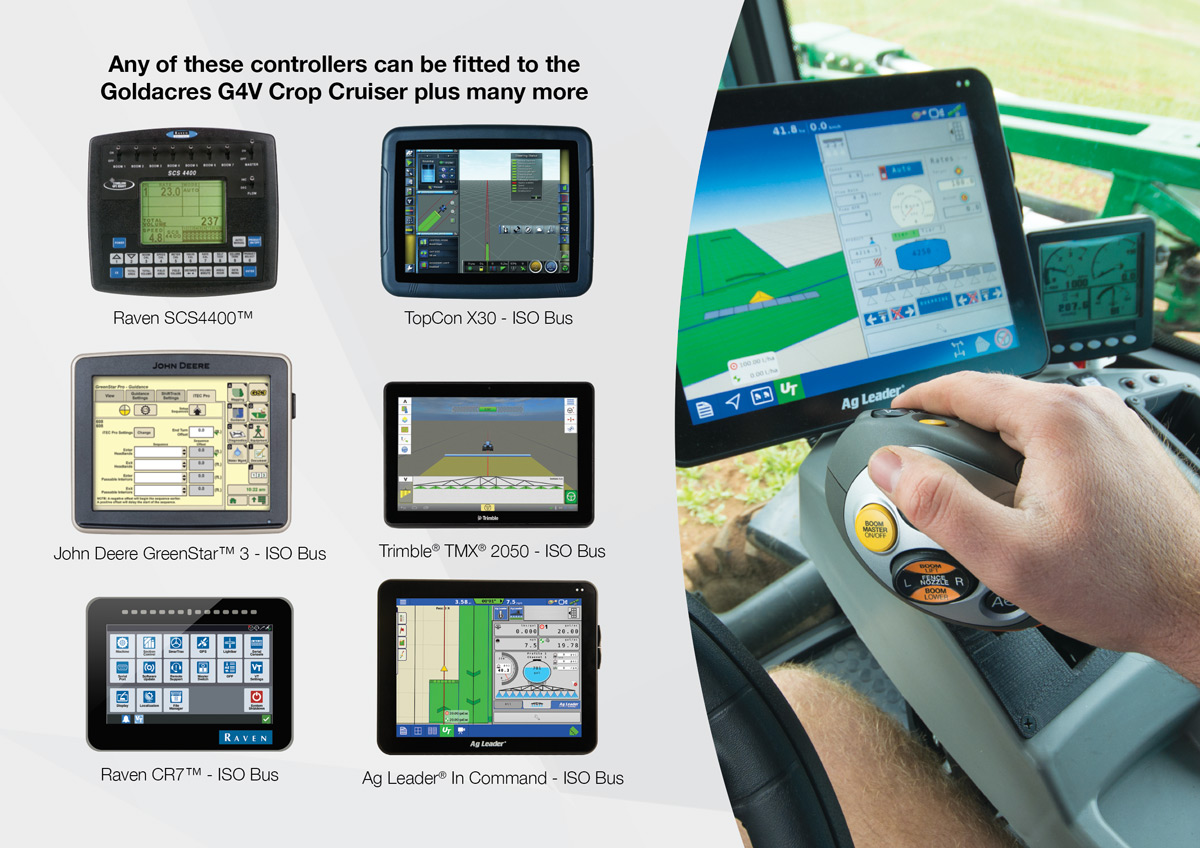

Control freaks!
Control freaks!

In today’s fast-changing precision farming landscape it is easy to be left behind in the technology stakes

That’s why Goldacres make it easy, with multiple solutions from the basic requirements to the top end needs.
For more than 2 decades Goldacres have relied on Raven to provide complete flow control systems with matched components to give, quite simply, unmatched flow control accuracy and stability.
At the heart of the control system is a high flow multistage centrifugal pump operated at consistent rpm. This multistage centrifugal pump provides high flow rates across a wide working pressure range compared to a single stage unit. This is essential for stable and accurate flow control. In addition, two system critical components, a flow meter and three-way regulator valve, combine to help achieve fast “on target rate” and greater flow stability.

ISO BUS systems
Sprayer cabins can get pretty busy with the vast range of systems requiring individual control consoles. The ISO BUS standard brings all the systems together into the one display, called a virtual terminal (VT). Essentially each system contains the brains, while the VT is simply the interface between the two. This means only one operator console is required. Goldacres offer the option for ISO BUS compatibility, allowing numerous leading VT displays to take over the sprayer control duties. Features like 3TS, pump speed readout, ultrasonic boom levelling plus sprayer steering and task control applications can all be all monitored by the one display.

SCS4400 systems
The SCS4400 sprayer console fuss-free simple, fuss free control of the liquid flow duties. The SCS4400 features up to 7 boom section control switches (expandable to 10), manual pump speed readout, ground speed, three tier system (3TS) as well as several counters such as area and volume. If you are looking to further expand the capabilities, then the SCS4400 is compatible with most leading automatic section controllers on the market.

A sprayer is only as good as its boom
A sprayer is only as good as its boom

Today’s sprayers are full of bells and whistles which makes spraying a whole lot easier, comfortable and efficient

It’s easy to forget what the end goal is. Precise chemical application.
Boom control can be the difference between a good spray result, and no result at all. Goldacres understand this and it is why all our sprayer designs are centred around the boom first and foremost.

Why do Goldacres booms ride so well?
Goldacres pioneered the use of lightweight aluminium in the outer boom wings over two decades ago. The philosophy was, and still is today that mass on a boom is fine so long as it is as close to the centre as possible. Reduced mass on the boom extremities reduces boom forces in both yaw and roll. This combined with the unique boom suspension results in a very stable boom ride, regardless of the terrain.
TriTech booms are contour following, meaning that the boom level will be referenced to the sprayer chassis and not purely on gravity such as a pendulum boom. This allows the sprayer to transverse the sides of hills and contours whilst keeping the boom level to the ground at all times. This results in placing the nozzle at the optimum height above the target.

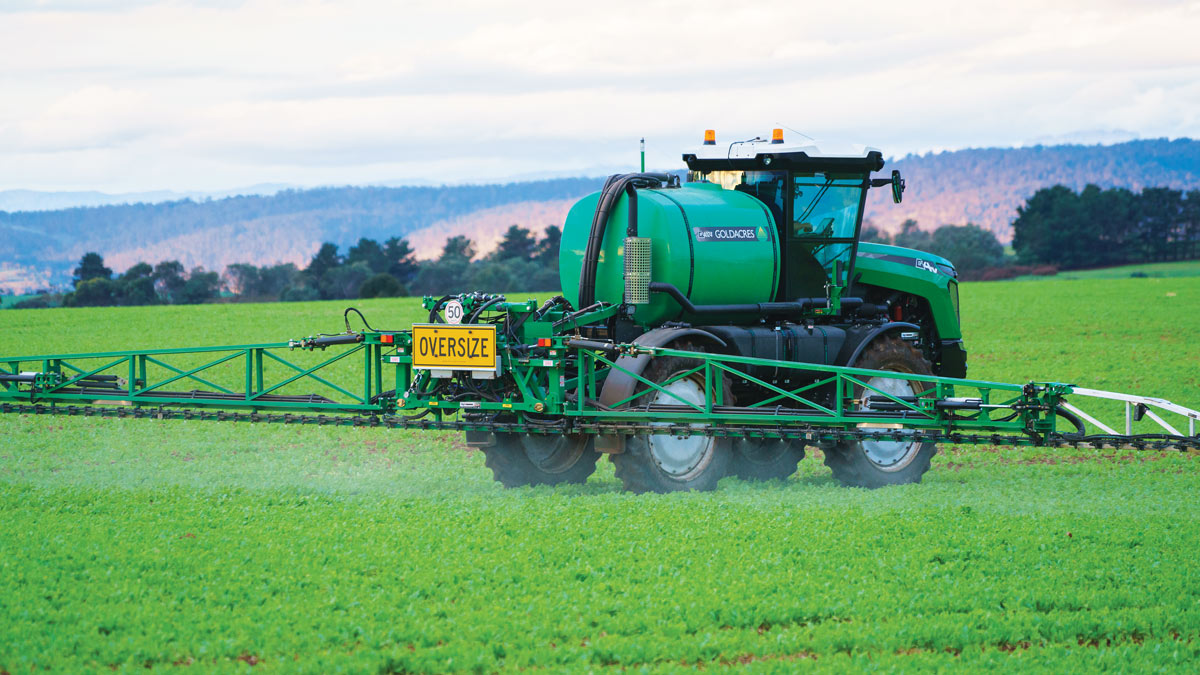

TriTech V Series boom
TriTech V Series boom

Strength, Stability, Reliability & Control

The TriTech boom range is designed for operators who demand the utmost performance, reliability and control. Time and time again the TriTech boom has been named “No.1 for boom stability”*, which at the end of the day, gives a superior spray result.
Features such as hydraulic yaw which precisely controls the forwards and backward movement of the boom wings to minimise the under and over applying of chemical are now standard on all widths.
The strategically placed centre section suspension links help isolate the sprayer chassis movement over rough terrain. Combined with the tuned damping characteristics allows precise roll control enabling an optimal and consistent nozzle height to be maintained, even without the use of electronic height control systems**.
All TriTech booms are constructed using lightweight trussing techniques, which allows for a stronger design without weight, the enemy of boom agility.

*Kondinin group’s Farming Ahead magazine 2012, 2014 & 2017. **Height control systems may be required in some extreme situations ^42m TriTech boom tested

TriTech Boom IFS (Independant Fold System)
TriTech Boom IFS (Independant Fold System)

The ultimate in flexibility, control and spraying precision.

The TriTech IFS is a product of 2 years of extensive engineering and design to give the operator the most flexible spraying solutions available.
Up to 14 different spraying configurations can be achieved with the IFS boom while retaining the TriTech 3 way suspension system for the ultimate control.
TriTech 3 way suspension dampens the forces of Yaw ( forwards / backwards movement ), Pitch ( up / down movement ) and Roll of the boom centre section. This provides a very stable platform for accurate spray distribution.

Boom suspension
Boom suspension

Why is boom ride and stability so important?

A boom which bounces, sways or yaws deposits chemical unevenly on the target. This can result in weed escapes and may even contribute to resistant weeds.
The Goldacres TriTech suspension system has been developed to provide you with the best boom ride possible and assist in an accurate application. Working in conjunction with the chassis airbags three-way suspension that works to reduce boom pitch, roll and yaw – the three enemies of accurate application. A combination of springs and shock absorbers, as well hydraulic cylinders and accumulators all work together to provide the best boom ride possible. The TriTech suspension system has contributed to Goldacres consistently having the best boom ride when measured against
competitor machines.

Hydraulic yaw – Two opposing hydraulic cylinders are mechanically connected together either side of the pivoting boom centre section.
As the centre yaws one cylinder is retracted, the other is extended.
This results in oil movement which compresses in a nitrogen charged accumulator. The result is precise boom yaw control.

Delta links – The key to the superior boom ride is the strategically placed delta links. In all there are four links. Each link features spherical ball ends which allow the centre to move in all directions.
Roll centre point – The roll centre point is the location at which the boom pivots around, both in roll & yaw.
Roll dampeners – Reduces high frequency oscillation of the boom roll.

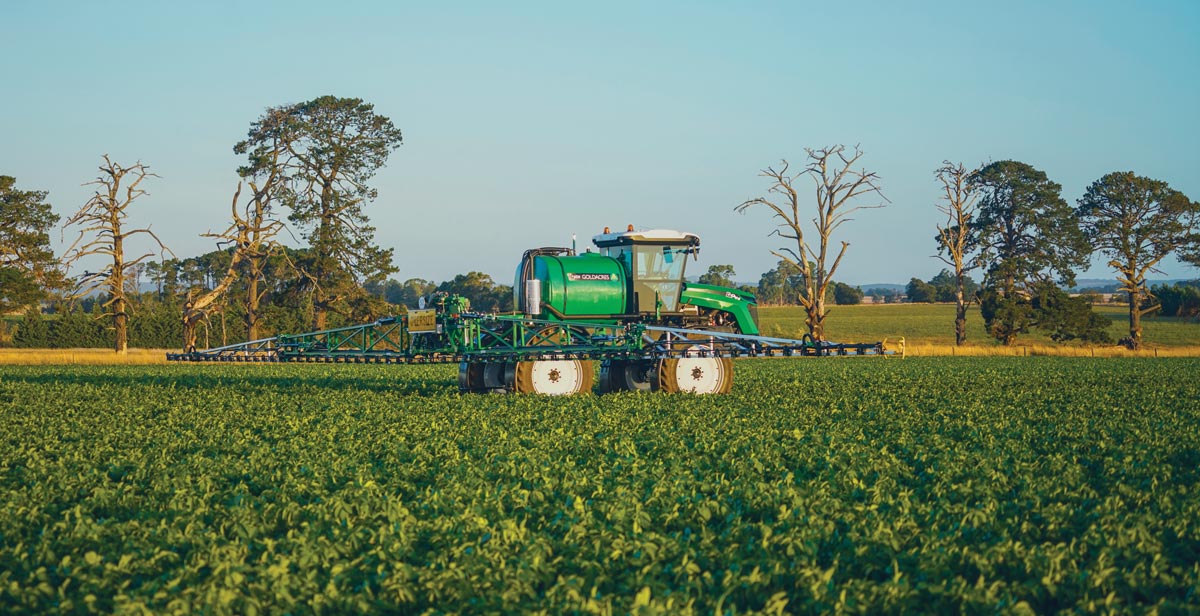

Boom configurations
Boom configurations

Many farms and crop varieties have different requirements when it comes to chemical application systems.

The new V Series TriTech boom utilities a five chord layout on the inner wing with the main boom folding pivot points above the nozzles. This layout allows virtually any nozzle configuration and spacing width to be achieved.
Goldacres are able to configure the boom to include single, double, clock face 3-5 nozzles bodies, droppers and high volume air sleeve systems just to name a few.
Wide choice of nozzles available from leading brands such as TeeJet and Lechler.

RapidFire and RapidFlow nozzle switching technology
Goldacres pioneered the use of pneumatic nozzle switching technology and boom recirculation in Australia more than a decade ago. In that time this technology has become the standard method for reducing chemical waste.
The pneumatic nozzle switching replaces traditional boom section valves to control water flow to the nozzles, with the trend moving to wider booms in conjunction with a greater number of spray sections meant that the traditional system simply became “ too busy“ with the number of hoses on the boom required. The Goldacres RapdiFire and RapidFlow system uses a single common feed spray line with the nozzles switching on and off using a number of small pneumatic hoses.
The result is significantly reduced amount of spray hoses, reduced volume of chemical in the boom lines, quick on / off times for the nozzle, easy to reconfigure section spray widths and number of sections and of course the ability to flush the spray line back to tank without the need to physically spray on the ground.

Application technology - 3TS
Application technology - 3TS

Nozzle technology has advanced in leaps and bounds over the years and a strong emphasis on drift control has influenced many nozzle designs,
including air induction (AI) technology

The spray nozzles operating pressure range and size determine the application rate and speed band at which the driver must adhere to. This band is usually quite narrow. To overcome this Goldacres offer a 3 tier system (3TS) which effectively gives the driver a much wider operating band whilst still maintaining optimum droplet size. Think of 3TS as a three step gearbox. Each nozzle type has an operating pressure band for a given droplet size. As the first nozzle reaches the top of the pressure band it switches off and the next larger size nozzle switches on. When that nozzle reaches the top of that pressure band the first nozzle will switch on again, effectively giving three operating bands.

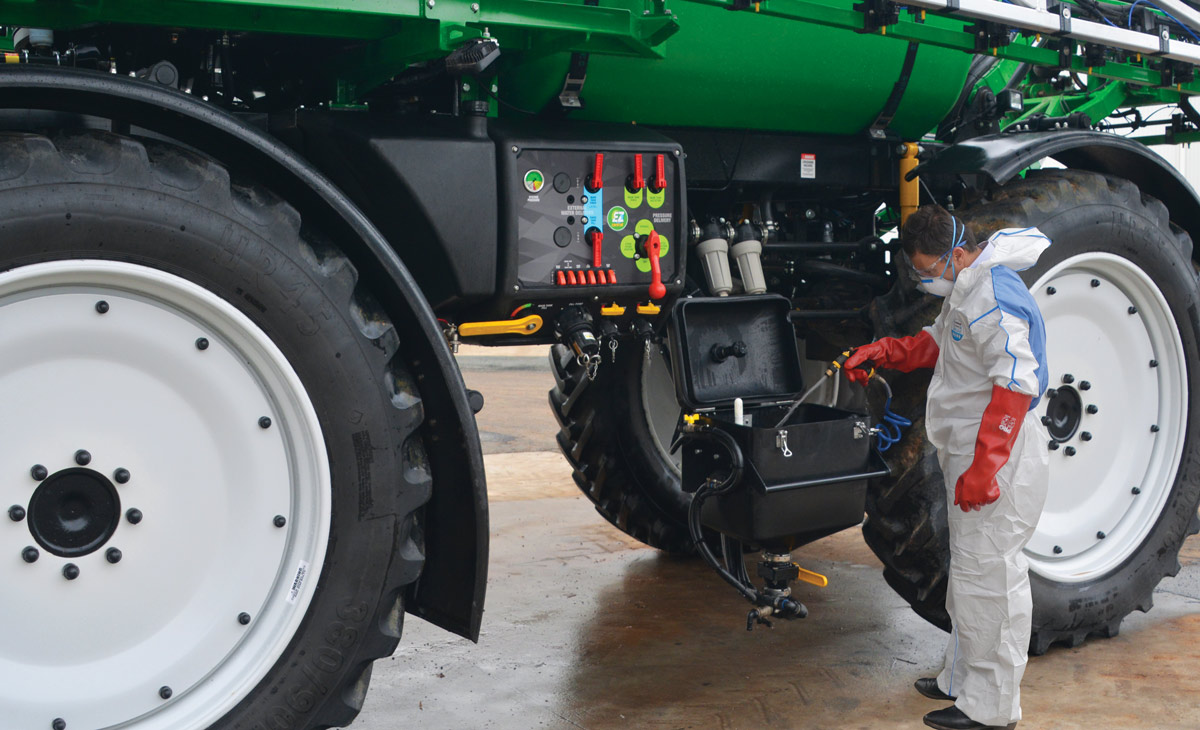

Chemical handling & fluid systems
Chemical handling & fluid systems

When your sprayer is sitting idle being reloaded with water and chemical it’s not making you money. That’s why Goldacres fit filling solutions that minimise the reload time to get you back in the paddock sooner.

The G4V Crop Cruiser has been designed and built with all the best fully integrated water and chemical transfer systems. This allows the sprayer to be reloaded quickly, safely and efficiently.
Fluid System
Central to the G4V’s fluid system is the high flow centrifugal pump. The pump is constructed using five impellors mounted to a common shaft which provides a more linear flow over a wide pressure range. The pump is rated to 400 l/min at 8 bar pressure.
RPM sensor and oversize suction filter means the operator can be confident that adequate pump performance is being achieved.

EZ Control Station
Todays tough OH&S requirements are there to ensure everyone finishes the day like they started, safe and well. At Goldacres we not only take care of our own employees, but we ensure operators of our products are also looked after. The G4V features an all-new EZ control operator station with well laid out colour coded connection points and valves at correct working heights, 70L hand wash tank and a wash down gun for rinsing out empty containers and fill station areas. External switches with protective covers allow the operator to switch on functions like the fill, chemical transfer and spray pump, external lighting, wash down gun and switch the suction between the main or 300L rinse tank.

Water transfer

Transfer water into the sprayer quickly and conveniently using the integrated 3” self-priming centrifugal fill pump. The pump is plumbed from the fill point to the tank using 3” hose with minimal restrictions, this allows fill rates of up to 700 l/min. Because the fill pump is fully integrated through the EZ control station the water can be distributed to not only the main tank but also rinse water tank, main tank flush sprinklers, induction hopper flush and micromatic coupler.

SuperFlow Chemical Induction Hopper
The SuperFlow chemical induction hopper is an integrated chemical transfer system that allows liquids, granular and powdered products to be measured and transferred into the main tank. The hopper has 60L capacity with both drum and internal rinsing capabilities. The high flow 2” venturi is mounted at the base of the hopper which draws the chemical into the water stream at that point, minimising the chance of blockages.

Liquid chemical Transfer Systems
The G4V is equipped with two types of chemical transfer systems. Venturi and electric

When large quantities of neat chemical need to be transferred into the sprayer from either a 1000L intermediate bulk container (IBC), 110L enviro drum or just a standard 20L drum then the chemical enviro drum coupler or venturi probe can be used. This connection point uses a venturi mounted in the top of the tank to create a vacuum to draw the chemical straight in. At no stage does the neat chemical come into contact with any pumps.

If precise amounts of chemical need to be measured into the sprayer then this can be achieved using the 12-volt electric 12 volt transfer pump. This pump is plumbed directly to the 60L super flow induction hopper where the chemical volume can be measured. Once the desired volume is met then the chemical can be transferred to the main tank using the venturi at the base of the hopper.

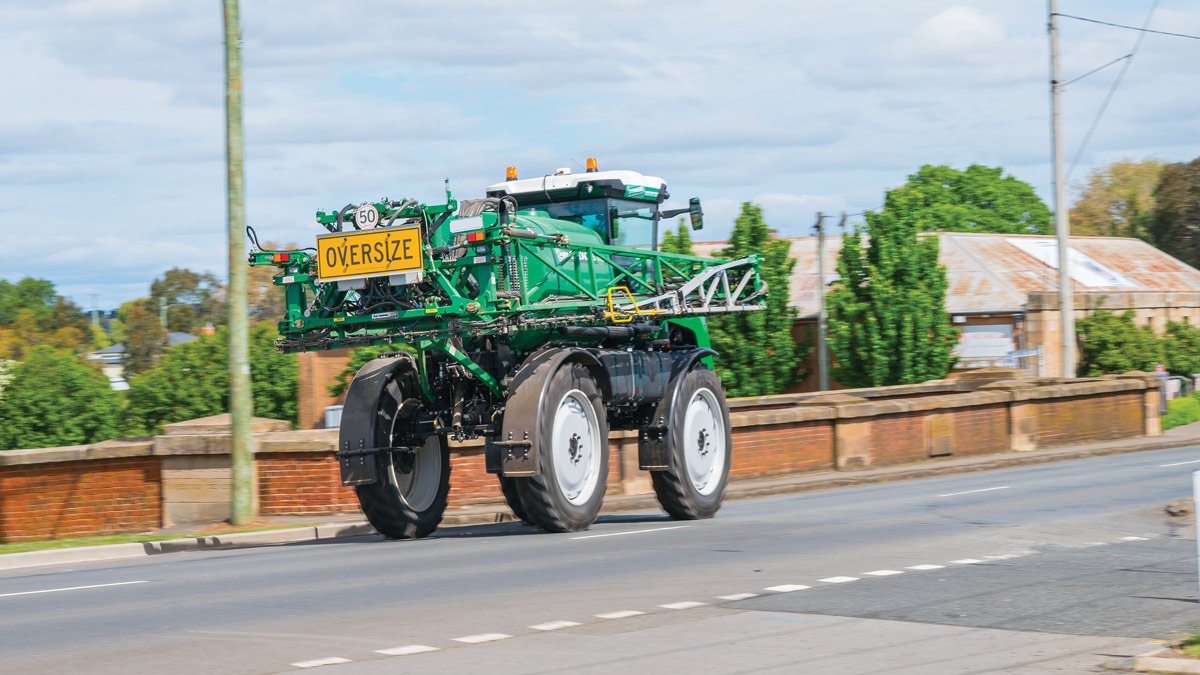

Ease of transport
Ease of transport

Whether you are spraying in the field or driving down the road, uninterrupted vision around the sprayer is essential for the safety
of you and others.

Features like the flat folding boom wings so the operator’s line of sight is uninterrupted. Adjustable side mirrors provide a clear view of the road behind. Compact folded booms provides the operator with easy access to the cabin yet brings the overall transport width down to under 3.5m*, eliminating the need for an escort vehicle. Internal wet disc brakes fitted as standard if the unthinkable should happen. LED daytime running lamps, turn indicators, projector style halogen headlights and rotating warning beacons round out the package. The G4V Crop Cruiser really is one for the road.

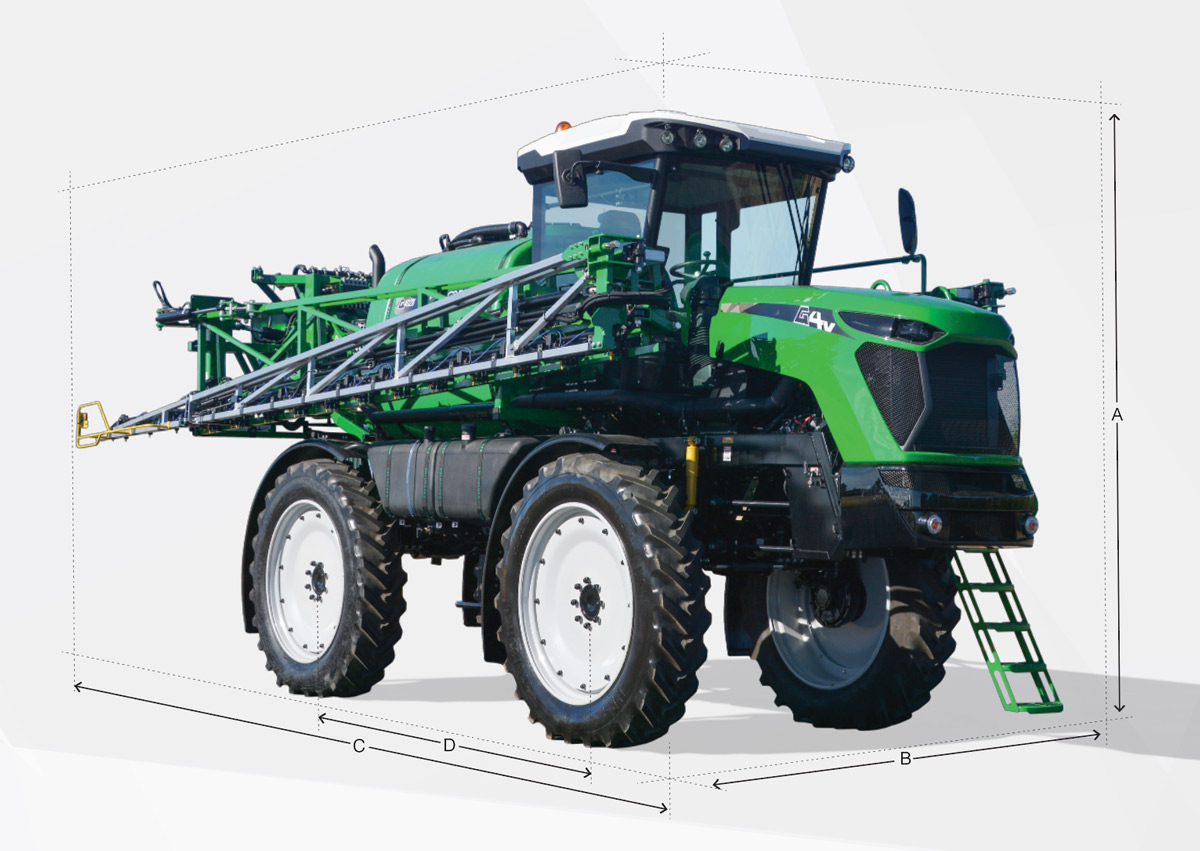

A (m)

B (m)

C (m)

D (m)

18m boom





24m boom





30m boom





33m boom





36m boom





Feature Description G4V
Engine Cummins QSB 4.5L 4 cylinder, Tier 3 emission. 119kw (160hp), 622N.m (459lb-ft) Standard
Charge air, water jacket, hydraulic oil and fuel combination cooling package by Innotherm Standard
Transmission Hydro-mechanical Transmission and Drive Line:
Danfoss Hydraulic Transmission Pump 115cc
Motor 160cc (Single) Full automotive control
Drive system Constant 4 wheel drive 2 Speed hydraulic drive transfer case with centre diff lock, forced lubricated and 12v oil cooler. Standard
Fixed width mechanical drive axles with limited slip differentials front and rear. Standard
300mm gear drive Drop legs Standard
Steering 2 wheel steer and 4 wheel steer modes switchable from cabin 4WS is speed limited to <15Km/h Standard
Turning Radius – 1.8m track – 380 wide tyres – 2.9m (inside of tyre) Standard
Hydraulics Danfoss 75cc load sense piston pump Standard
3.9cc gear pump for transfer case lubrication and cooling Standard
90L hydraulic reservoir with return oil filtration Standard
Electrical system 12V – 160amp electrical capacity Standard
Dual batteries with master isolator Standard
Fully sealed connectors with colour coded wires used throughout the wiring harness Standard
Light Front mounted egress roof work lights Standard
Night Pro (DFO) Option
LED light bar Option
Braking system 4 wheel braking via a hydraulic transmission system. Standard
Independent emergency braking system controlled via foot pedal. Internal hydraulic wet brakes. Front axle only. Standard
Chassis Fully welded semi truss rigid mild steel Standard
200 x 100 x 6mm main rails Standard
Suspension 5 link torque rods with rear sway bar. 4 x rolling lobe air springs with ride height levelling. Shock absorbers on all corners. Standard
Paint system Grit blasted steel work followed by high build primer. All unwelded sections seam sealed Standard
Wet top coat paint system with high temperature baked finish Standard
Wheel Equipment 380/90R46 – ground clearance 1000mm Standard
Axle tracks Wheel tracks, 1.81 – 2.36m using bolted adjustable rims Standard
Mudguards 4 x full-length axle mounted polyethylene mudguards Standard
Cabin Premium cabin with curved front and rear glass Standard
Dual tilt and telescopic steering column Standard
Air suspension seat with seat belt. Fully adjustable Standard
Training seat Standard
Accessory mounting rail on RHS Standard
Carbon filtration with positive cab pressurisation Standard
Bluetooth equipped radio Standard
Engine diagnostic display Standard
Main cabin access Full-length LHS access platform with auto folding ladder. Standard
Boom TriTech V Series boom. Mild steel inner wings with aluminium outer wings and breakaway. Available in the following widths. 24, 28, 30 & 36m. Option
TriTech Boom IFS (Independent Fold System) 24-30m Option
7 boom sections Standard
8 boom sections Option
9 boom sections Option
10 boom sections Option
RapidFire single line in 500mm spacing Option
3 tier system (3TS) Option
Trijet nozzle bodies Option
Crossfire 3TS (3TS capability with nozzles staggered every 250mm) Option
Custom nozzle spacing and configurations on request Option
Hydraulic wing tilt Standard
Hydraulic bi-fold (TriTech booms only) Standard
Hydraulic yaw system (TriTech booms only) Standard
Automatic boom height control system (TriTech booms only) Option
Remote fence line jets Standard
Air sleeve system Option
Spray control system Raven SCS4400 Standard
ISO BUS control system (no VT supplied) Option
Solution Tanks UV stable Polyethylene heavy walled tank. Standard
Main tank – 4000L Standard
Rinse tank – 300L side mount Standard
Wet sight tube mounted to the tank Standard
Pump High flow centrifugal pump Standard
Suction filter plus twin pressure filters Standard
Chemical handling and transfer Chemical suction probe Standard
60L induction hopper Standard
Electric chemical transfer pump Standard
Micromatic rinse socket and coupler Standard
3” integrated water transfer pump Standard
Service / Maintenance Remote grease nipple bank Option
Auto grease system Option
Turning circle 2.9m (min) Standard
Weight Tare weight (kg) – 30m TriTech boom 9450
Gross weight (kg) 14,000
