AutoSteer

The Raven SC1 is designed to provide cutting-edge, hands-free machine steering.

The system offers incredible accuracy at both low and high speeds up to 46km/h with quick line acquire which improves efficiency.

The SC1 uses the Raven Viper 4 field computer and a GPS receiver of your choice from Raven, John Deere or Trimble just to name a few.

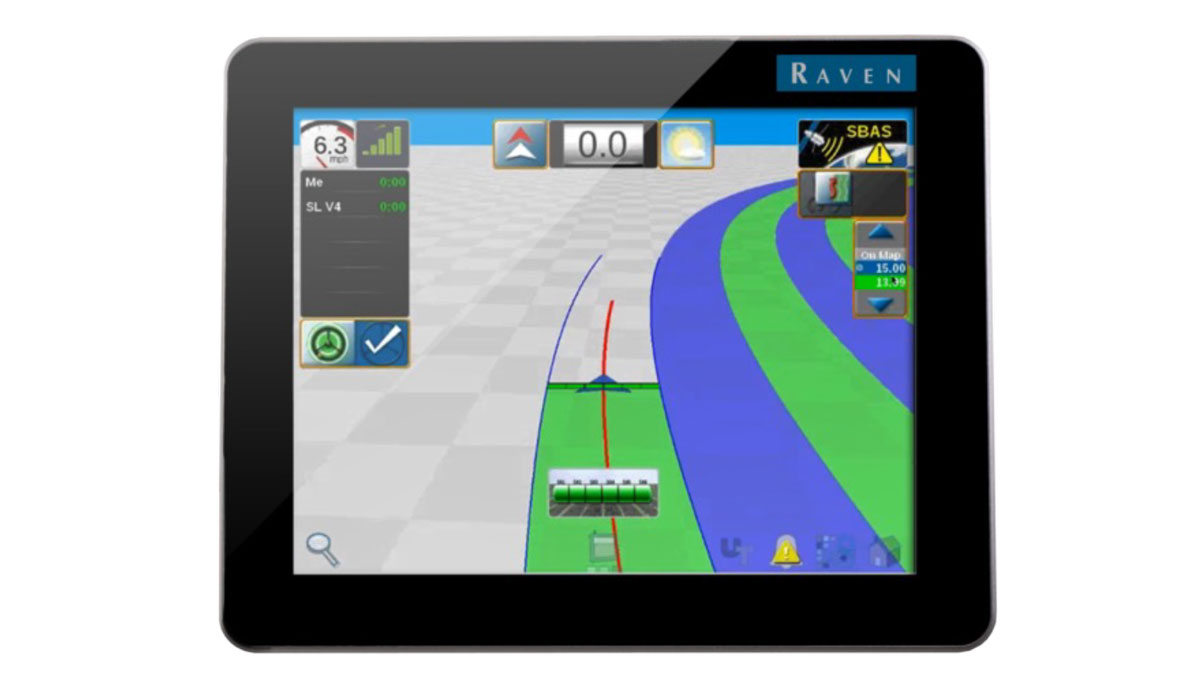

Viper 4 integrates with Raven’s full line of products into one networked platform that offers a 12.1” touchscreen and an intuitive, tablet-style interface with swiping features and horizontal or vertical orientation.

The SC1 and Viper 4 allow a custom vehicle profile completely tailored to Goldacres Crop Cruiser sprayers, we can now offer the ability to utilise an existing GPS receiver with a raven autosteering solution completely factory fitted as a total raven operating platform.

The system uses a compact ECU which can easily be installed in the cab and out of sight.

Features & benefits:

  • Single product node footprint with temperature compensated internals
  • Compatible with ISOBUS 11783 Curvature Messages for both ISO Steer-Ready and Raven aftermarket steering controllers
  • Ability to configure third-party radio on field computer; tested and supported solutions include 450/900 Mhz AG715 radios; additional radio configurations may be compatible but require additional validation
  • Optional upgrade to RTK – 2.5cm accuracy
  • Optional upgrade to Raven slingshot.
