Pasture Spray King

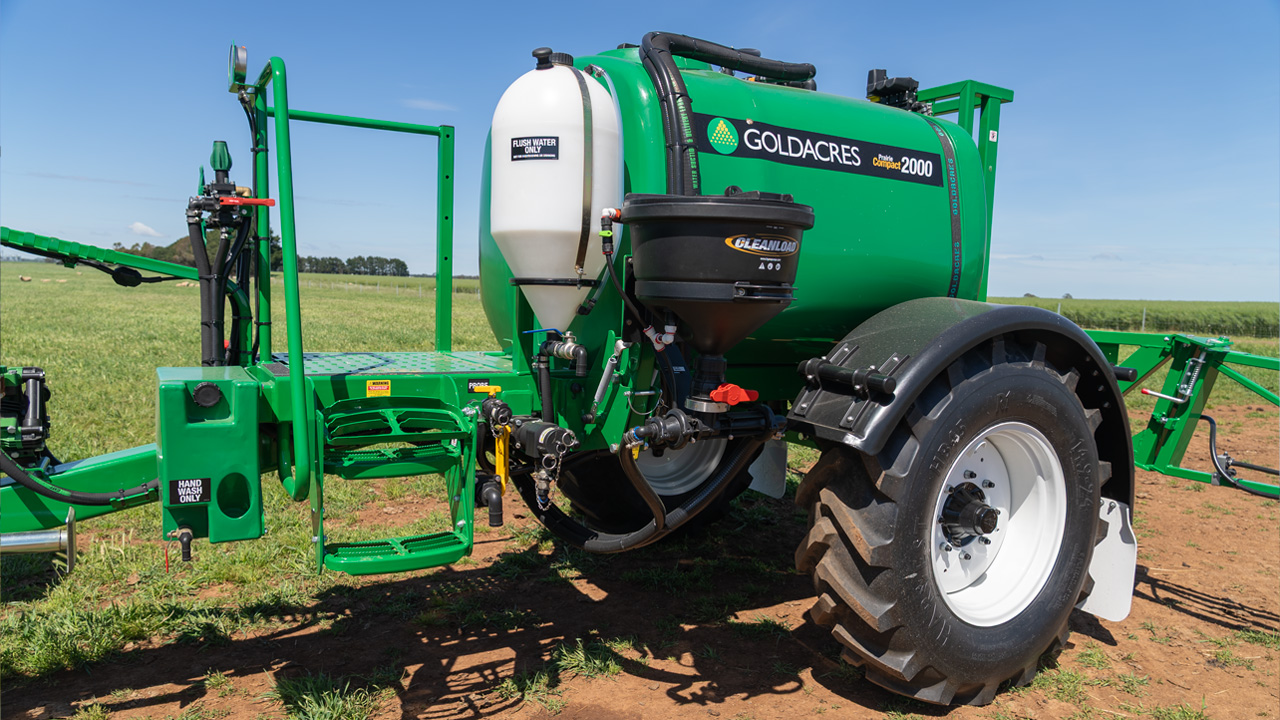

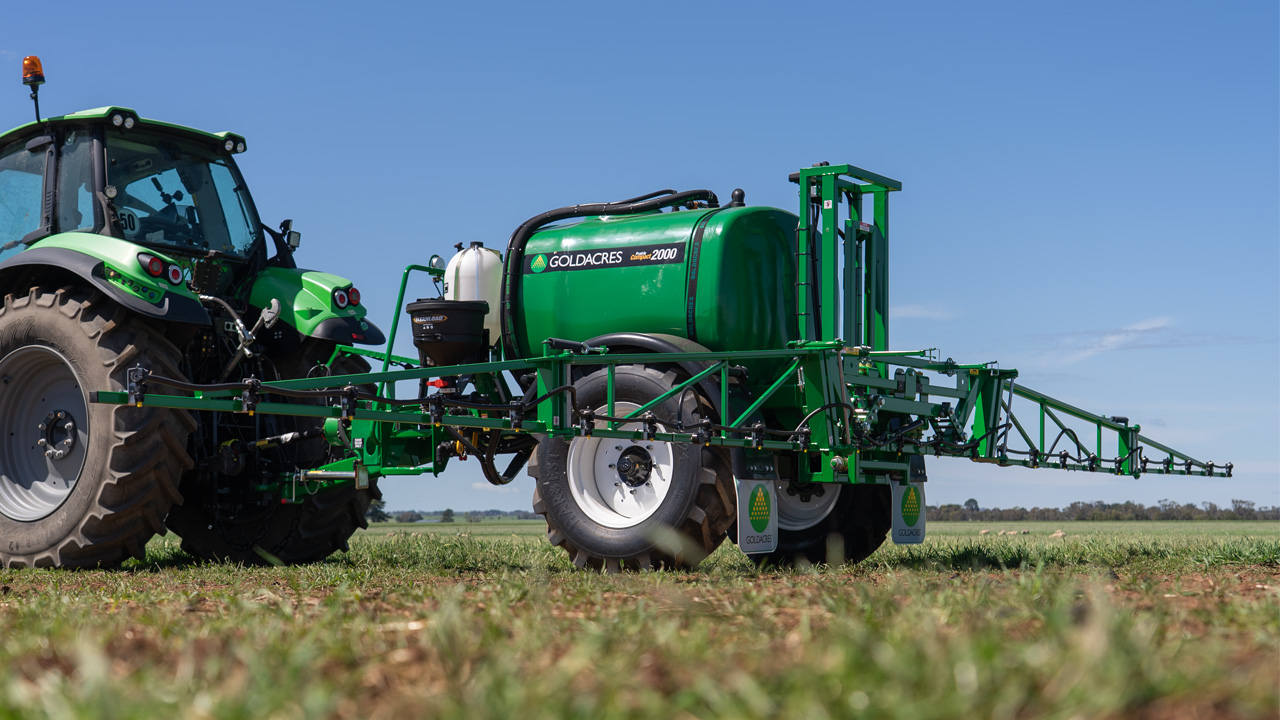

Built for Australian conditions, the Compact 2000 combines rugged durability with high productivity. Its 2000 L tank, adjustable axle, and versatile boom options deliver efficient, precise spraying across any paddock. Colour-coded controls and a premium Udor Zeta 85 pump make operation simple and low-maintenance, while a 45 L flush tank ensures safe, quick cleaning. Designed for reliability, ease of use, and minimal downtime, the Compact 2000 keeps your spraying operation running smoothly.
Typical uses
| Features | 2000L |
|---|---|
| Broadacre spraying | ✓ |
| Rowcrop spraying | ✓ |
| Vegetable spraying | ✓ |
| Horticultural spraying | ✓ |
| Weed control | ✓ |
| Pest control | ✓ |
| Industrial spraying | ✓ |
| Municipal spraying | ✓ |
| Contracting | ✓ |
| Fertiliser application | ✓ |

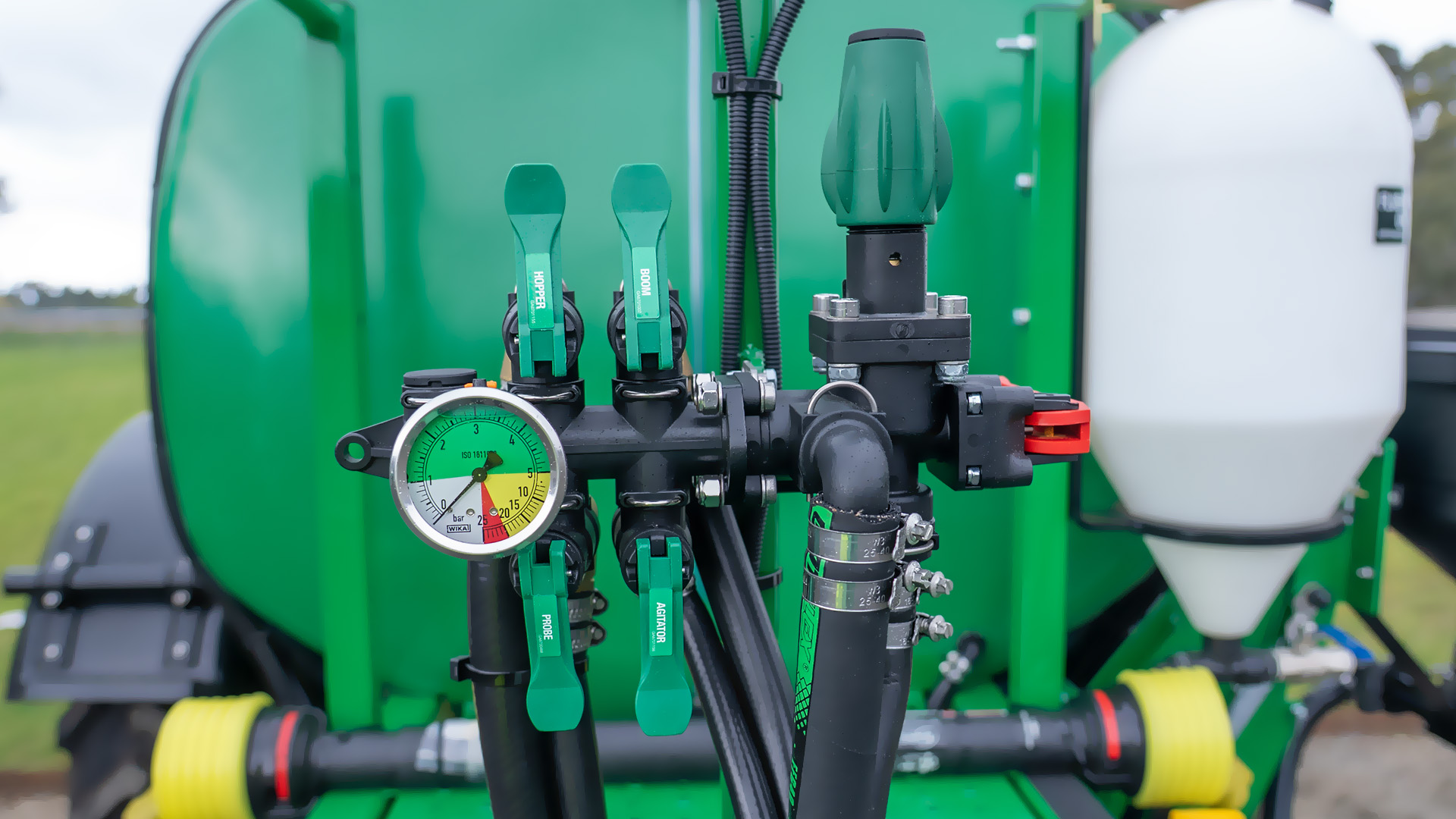

Pressure manifold control station
All key controls are grouped at the colour-coded pressure manifold station, giving you faster set-up, simpler operation and fewer mistakes in the field.

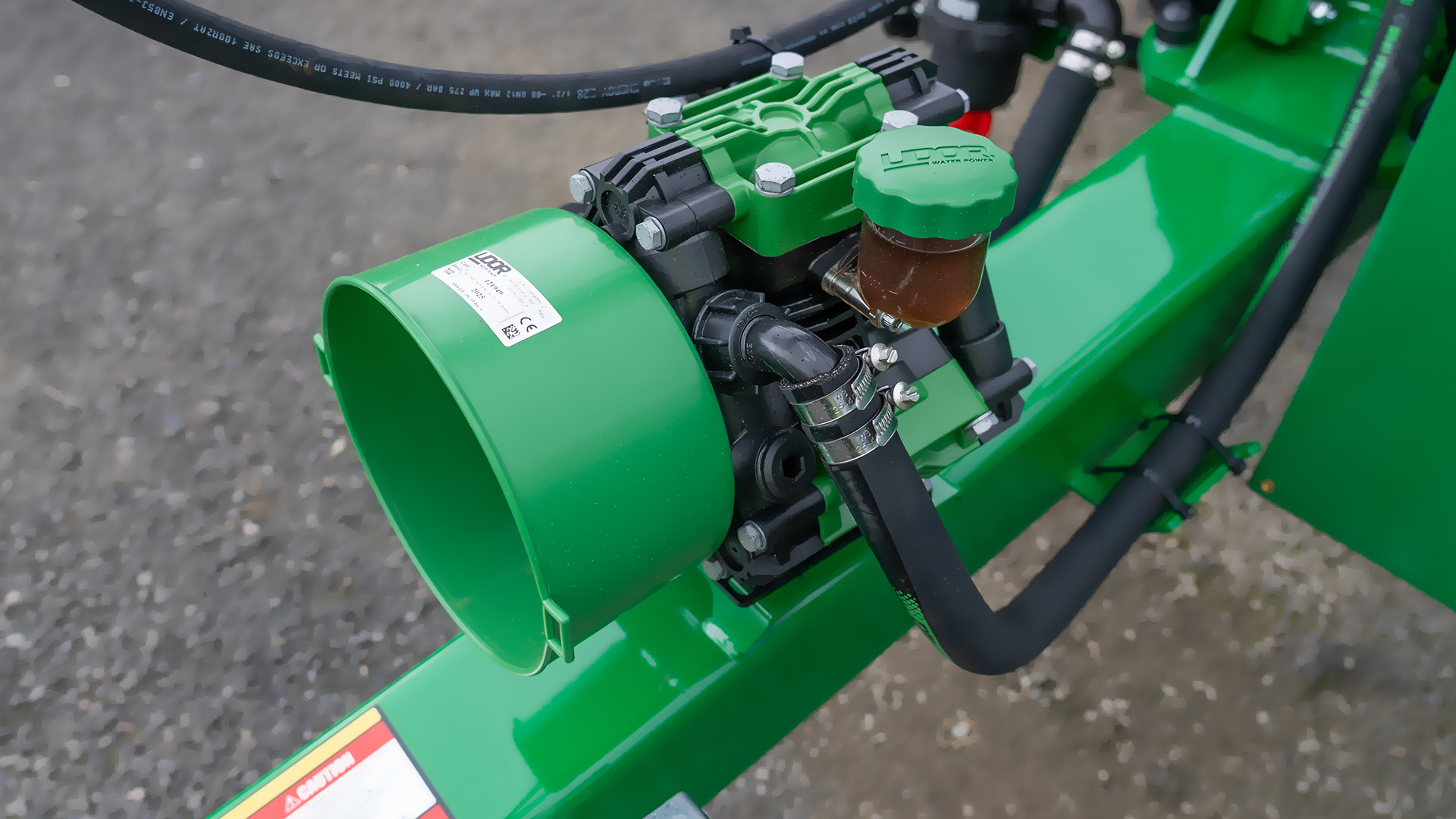

Udor Zeta 85
Equipped with a premium chemical-resistant Udor Zeta 85 diaphragm pump (with either PTO or hydraulic drive), which means longer service life and less maintenance.

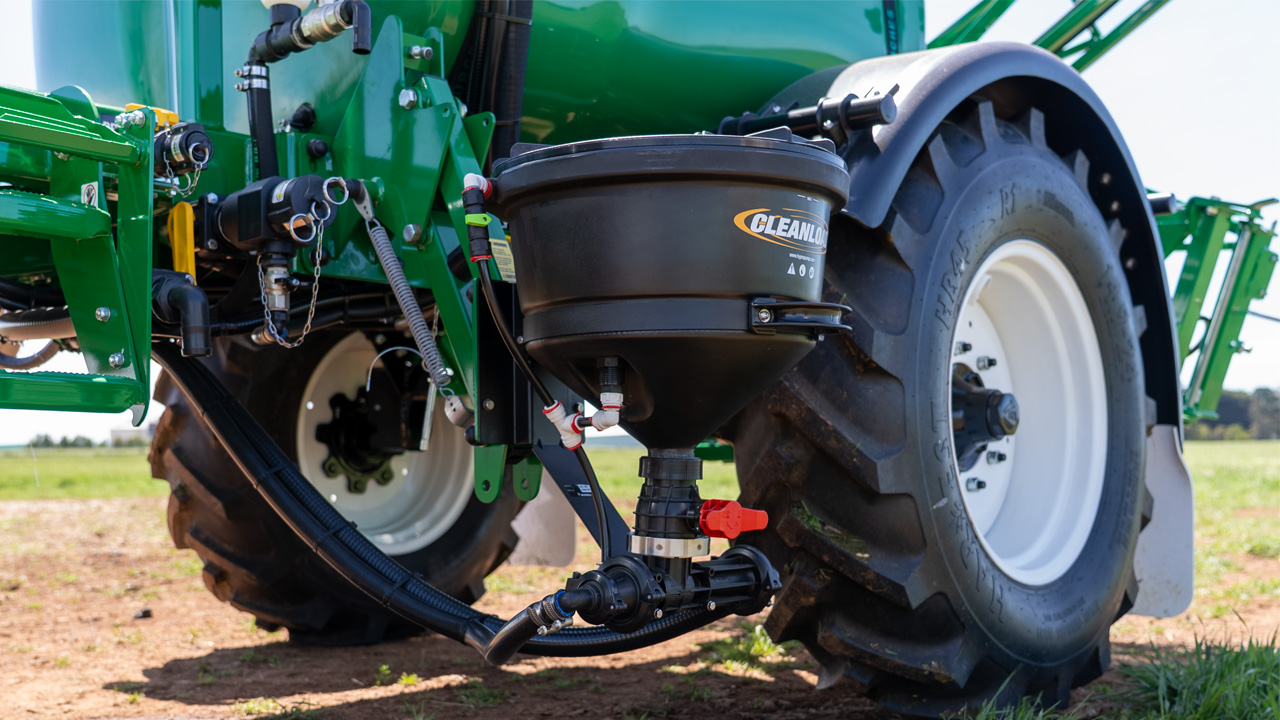

Hopper
26L Chemical Induction Hopper

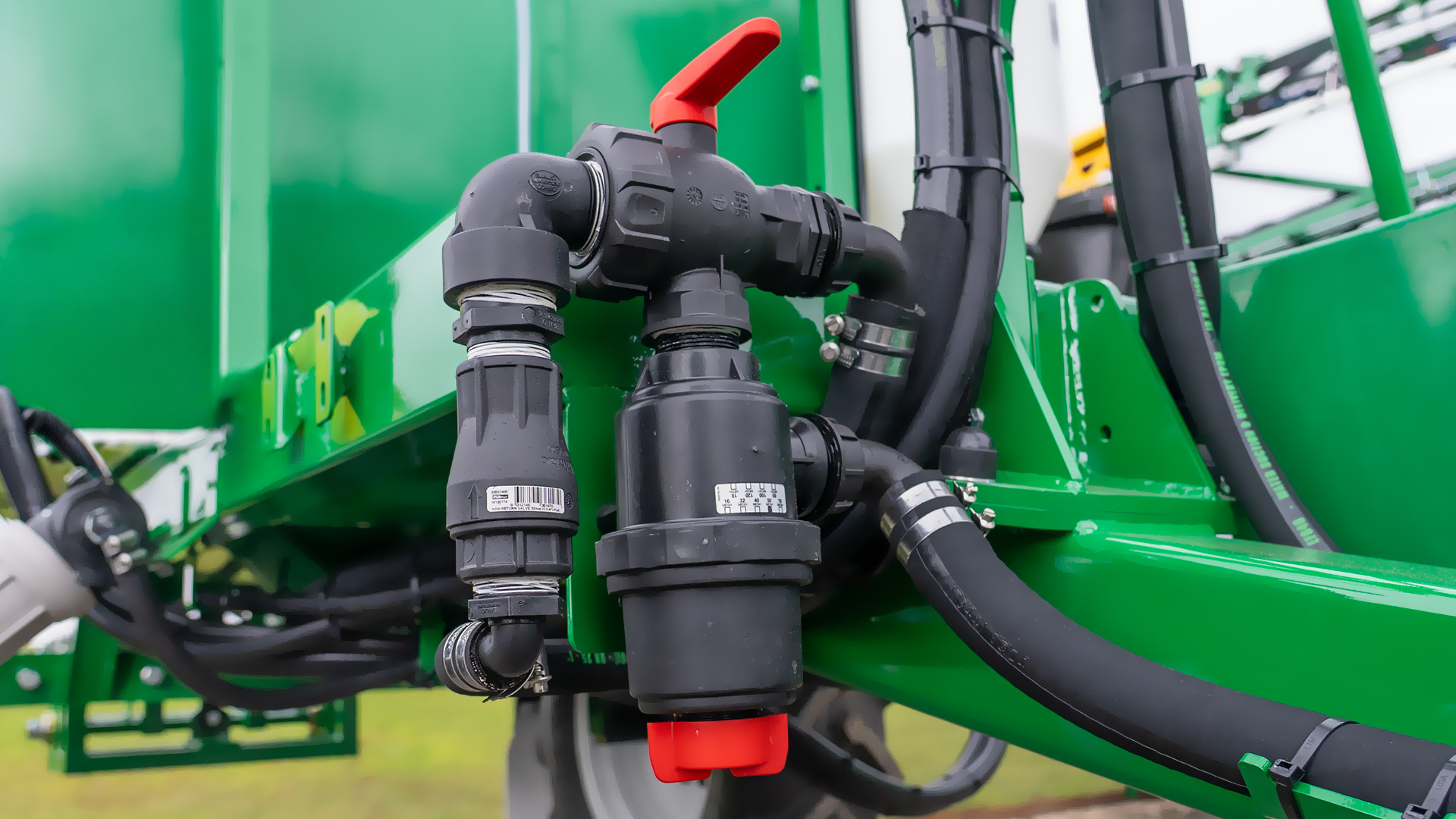

Suction filter
A high flow suction filter with 50 mesh screen is plumbed with a 3 way ball valve to allow suction from fresh water tank.

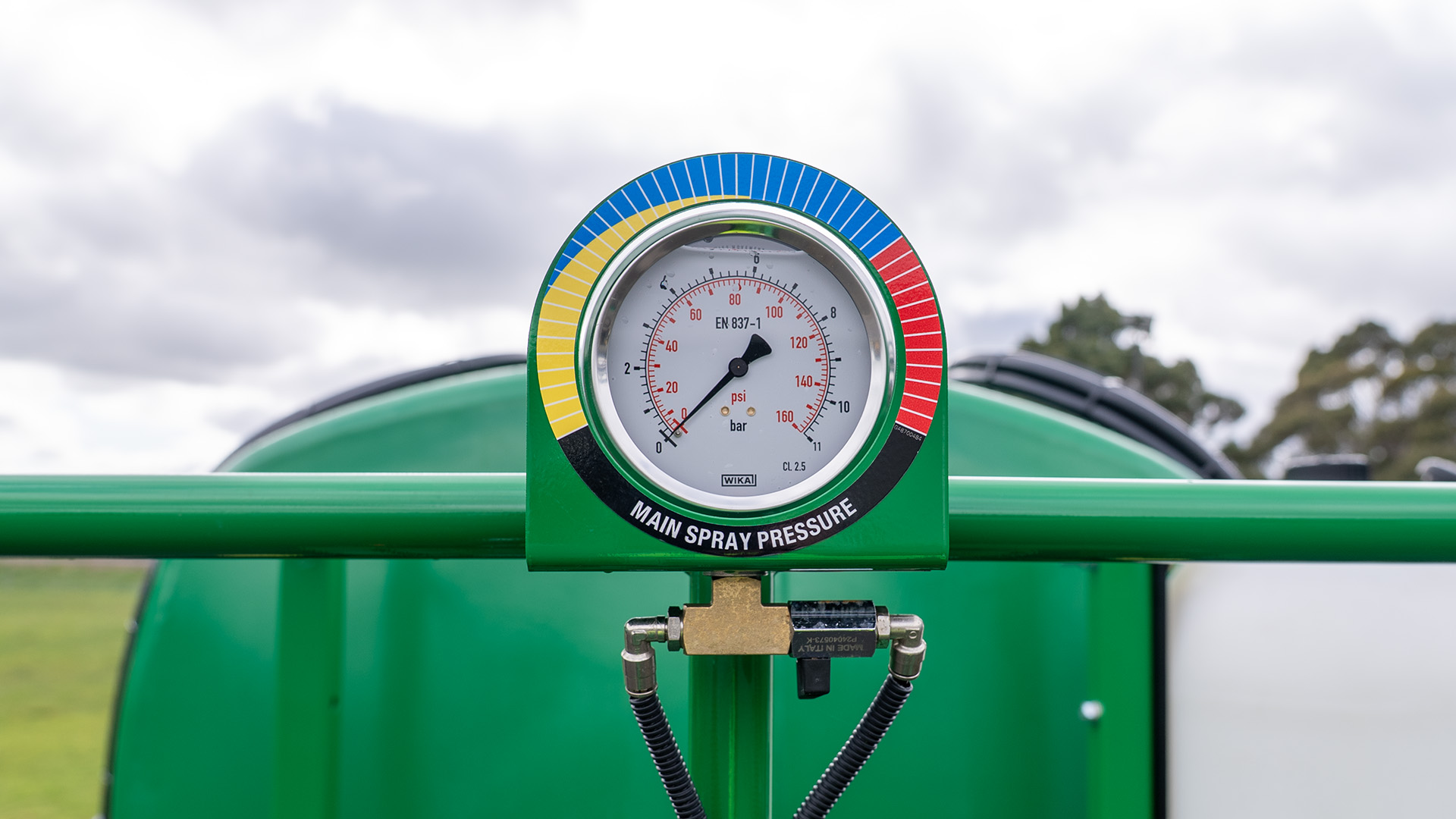

Spray pressure gauge
Centrally mounted with large face the pressure gauge allows the operator to keep an eye on system pressure easily.
Chassis
RHS construction, engineered for Aussie conditions.

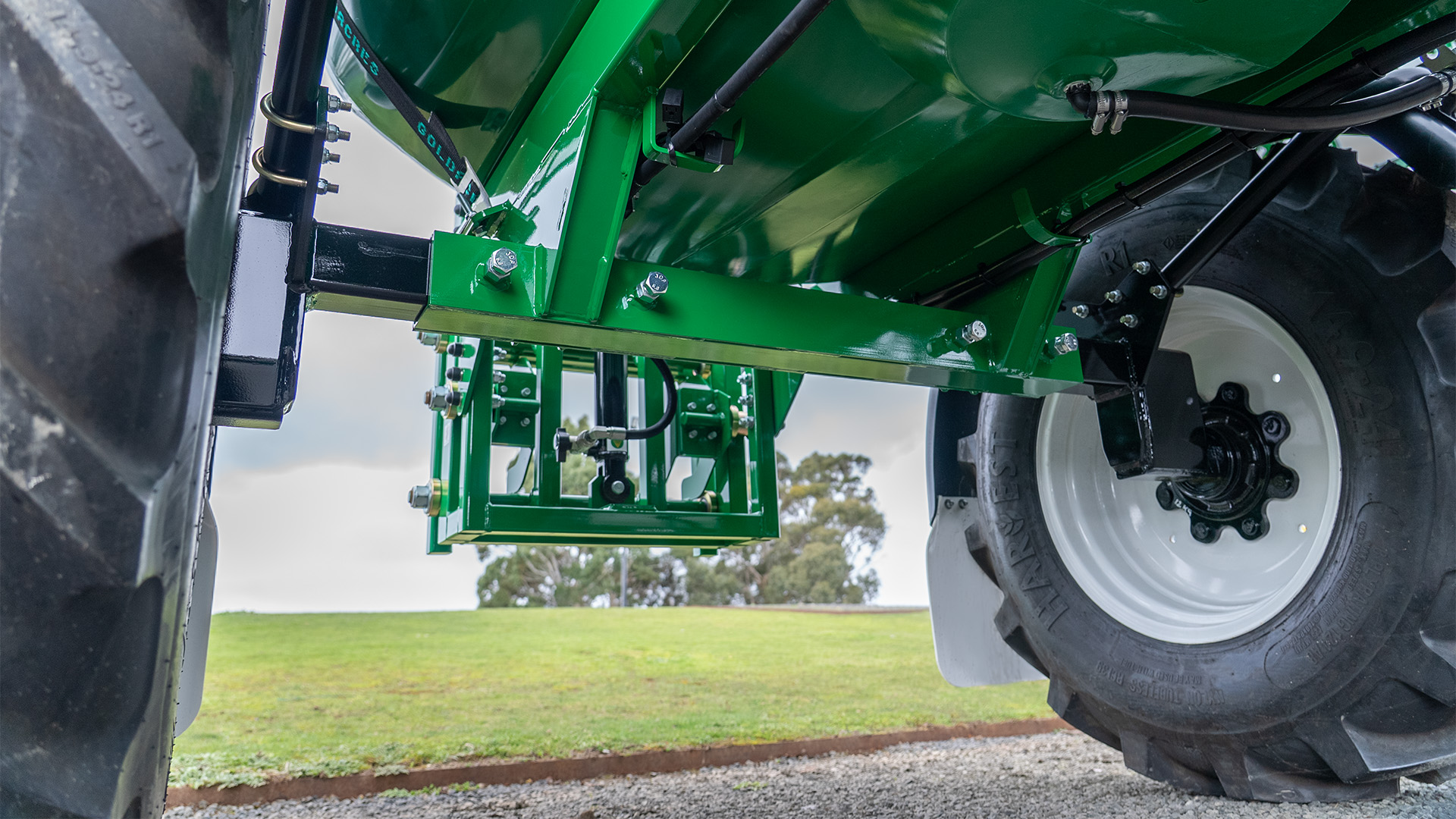

Axle

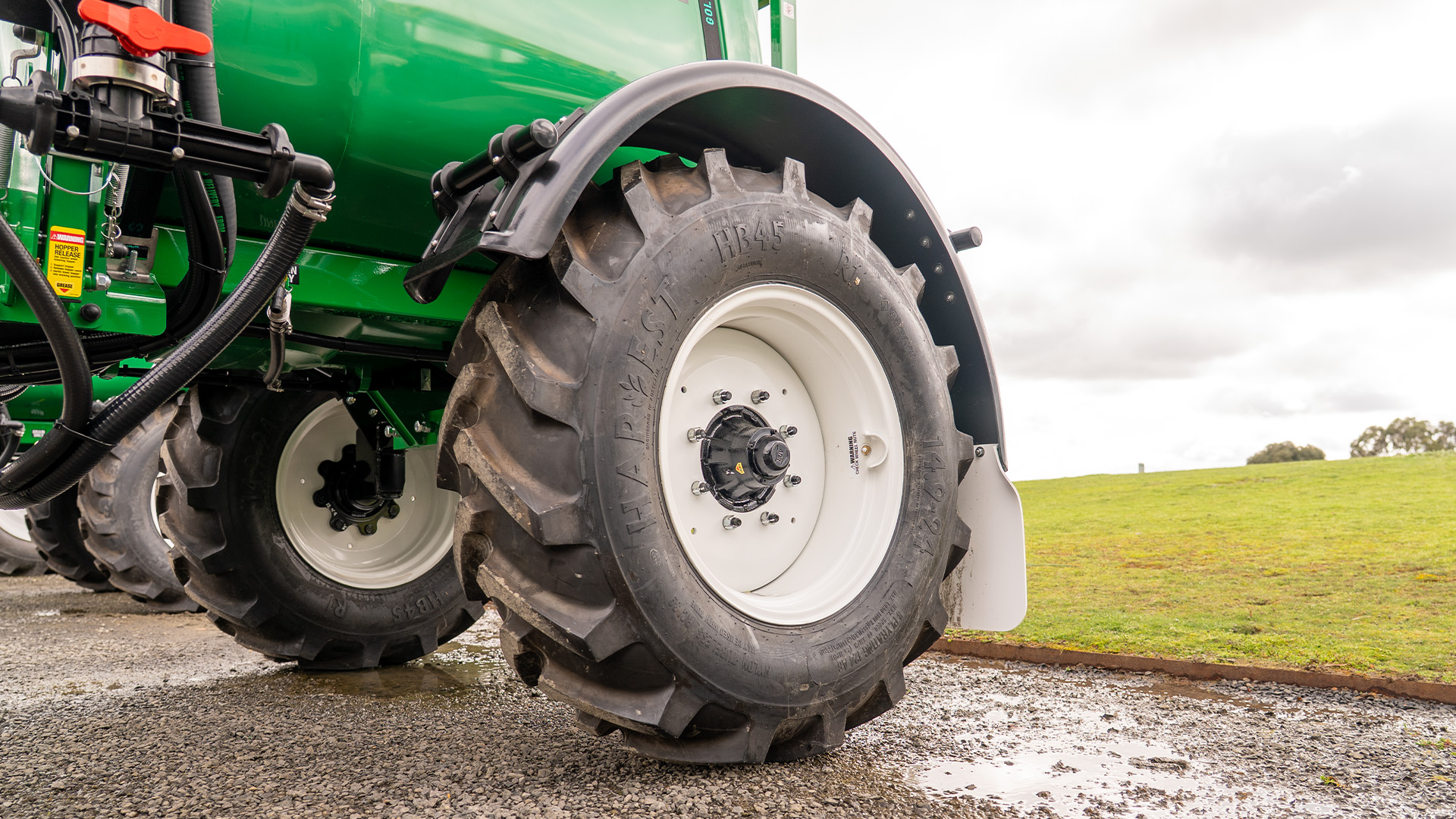

Adjustable width axle (with 14.9 × 24 wheels) lets you adapt to varying paddock widths and improves road transport flexibility.
| Feature | ||
|---|---|---|
| Tank capacity | 2000L | Std |
| Flush tank | 45L | Std |

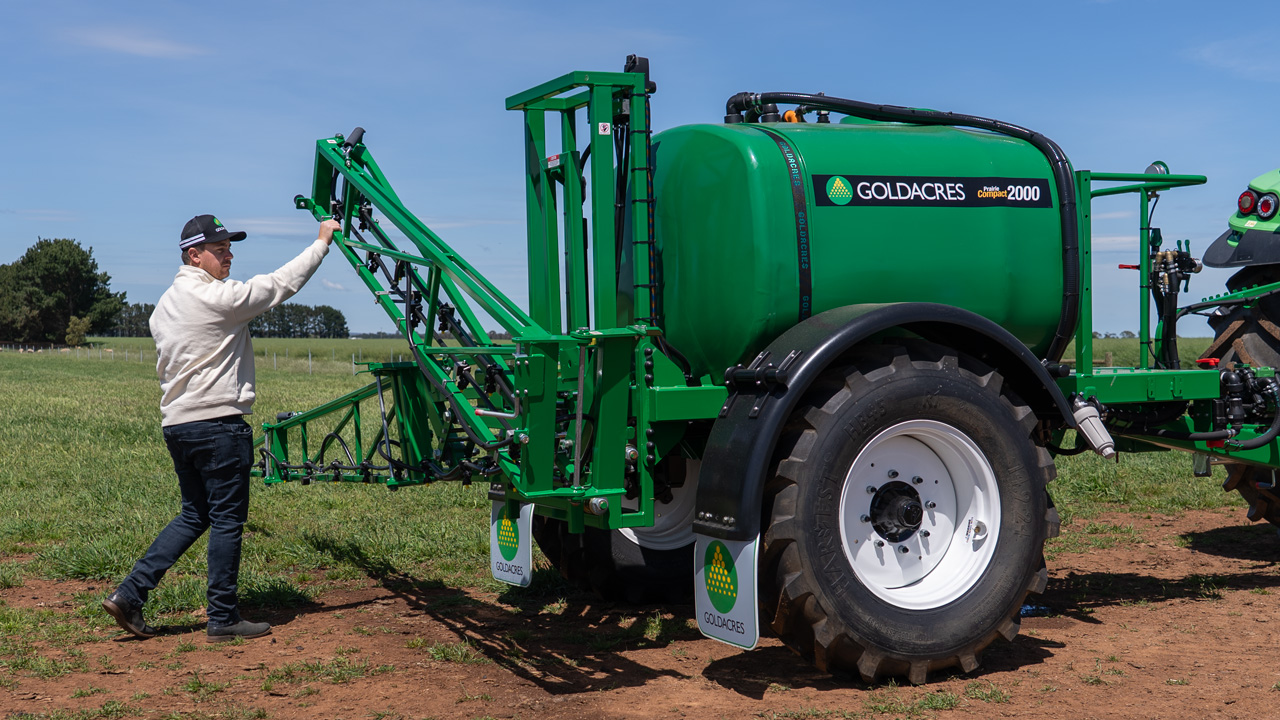

| Boom | 10m Boom, manual folding, twin link 12m Boom, manual folding, twin link | Opt Opt |
| Boom options | 22L Foam marker Single sided manual or electric fenceline nozzle | Opt Opt |
| Boom suspension & control | Manual boom height adjustment Hydraulic boom height adjustment Twin link levelling Chemical Induction probe | Opt Opt Opt Std |
| Induction | 26L Induction hopper Chemical induction probe | Std Std |
| Controls | 3 section electric Raven SCS440 | Std Opt |
| Pump | Zeta 85 pto Zeta 85 hydraulic | Std Opt |
| Filtration | Suction – 50 mesh screen Pressure – 100 mesh screen | |
| Hose reel | 30m hose reel with AA30 gunjet | Opt |
| Wheel & axle | Wheel 14.9 x 24 with manual width adjustable axle | Std |
Because it’s designed with standardised controls and robust components, your operators will learn it fast and you’ll spend less on servicing and training.
Ready to optimise your spraying capabilities? Contact one of our Dealers for a personalised consultation.
