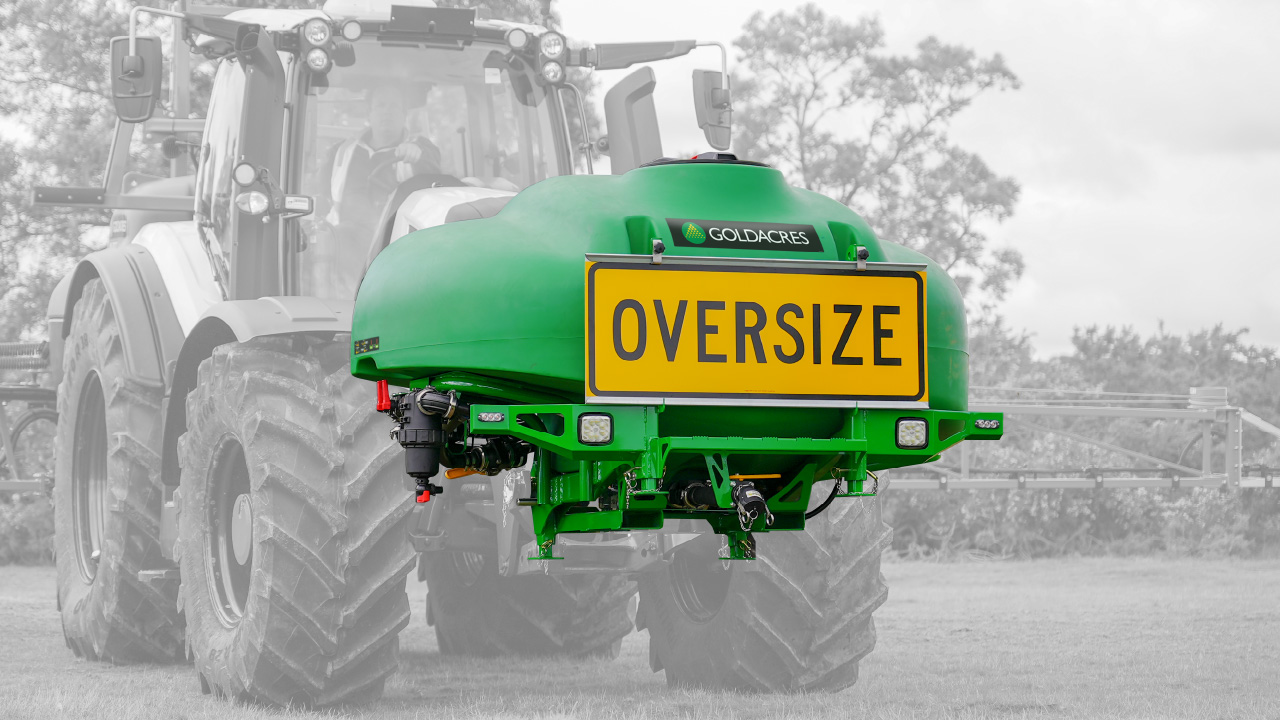

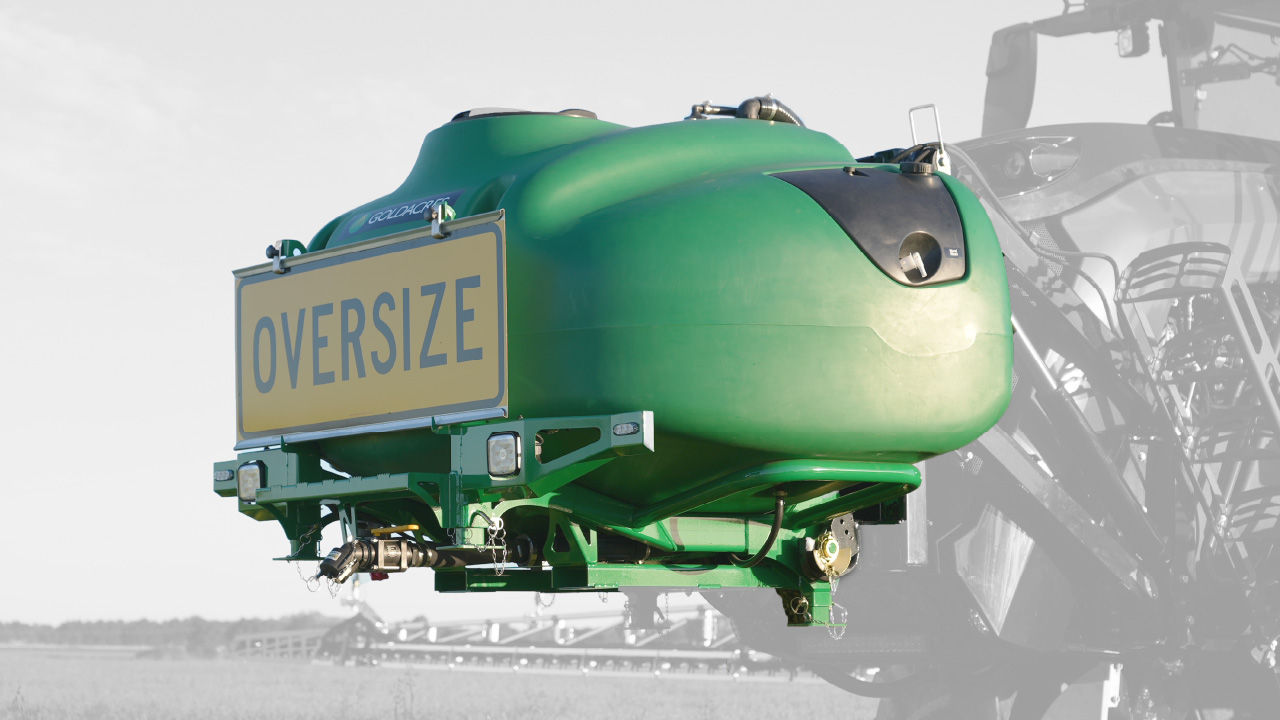

Goldacres Front Mount extends a sprayer’s capabilities by providing either increased capacity or dual-product application options. Designed to integrate seamlessly with the G-Hub 2.0 (G8 Crop Cruiser Series 3) providing practical, flexible spraying solutions.
Fitted with a large opening lid for easy access and configured as a fully standalone sprayer complete with a centrifugal spray pump, pressure filtration, rinsing, agitation and an electronic tank level sensor visible on the internal G-Hub screen.

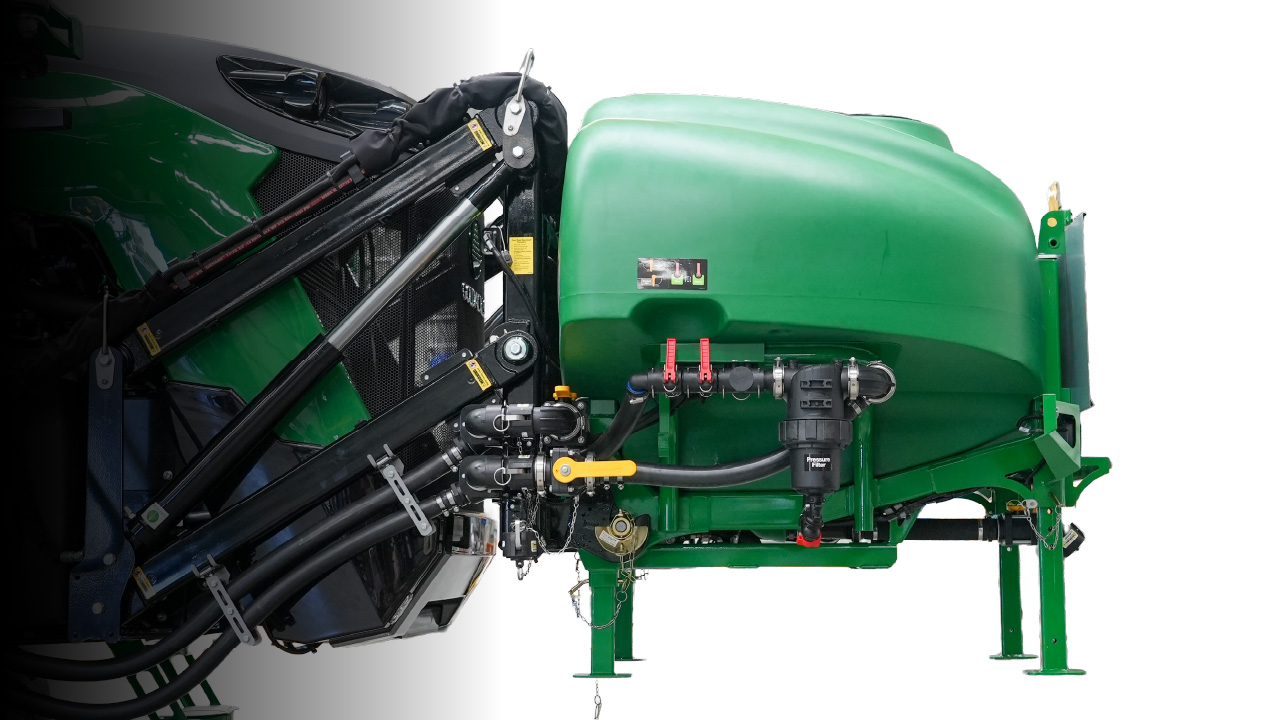

Storage Legs
The frame is complete with retractable storage legs and fork tine pockets to aid moving and storage when not fitted to the sprayer.
Integration Features
- G-Hub 2.0 compatibility
- Electronic tank level monitoring

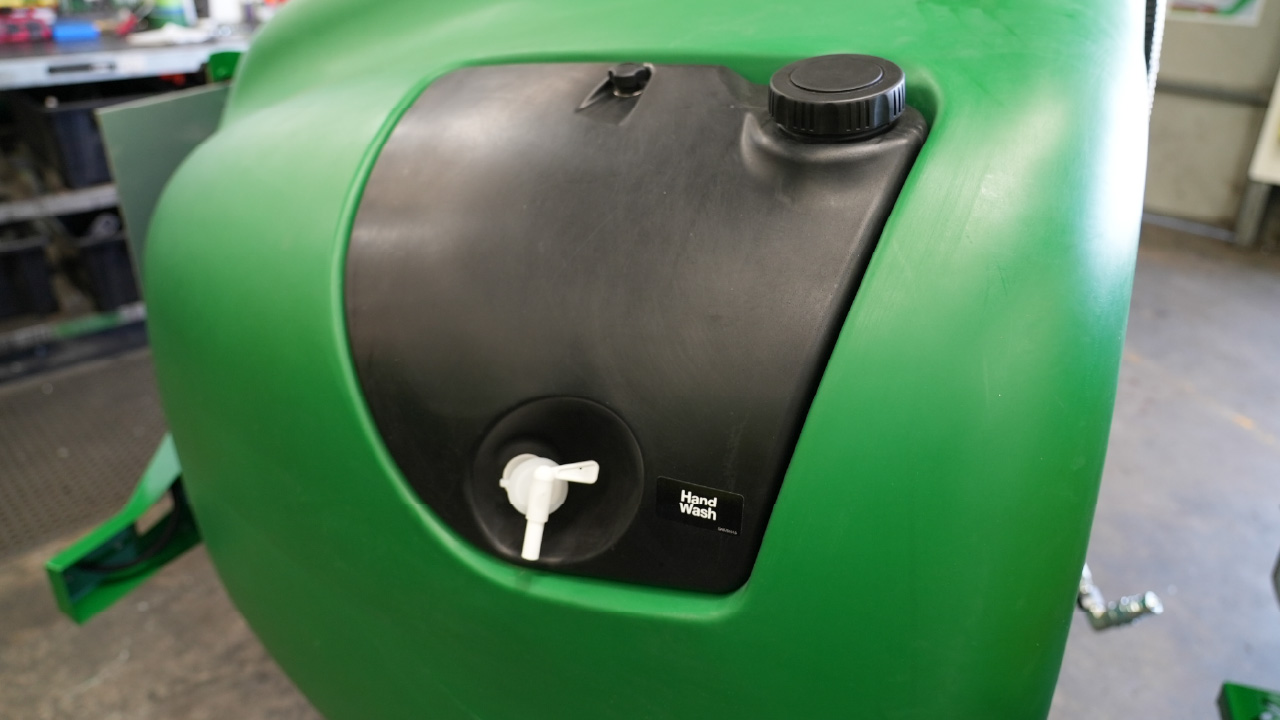

- 15L hand wash tank
- Large opening lid
- Retractable storage legs
- Fork tine pockets

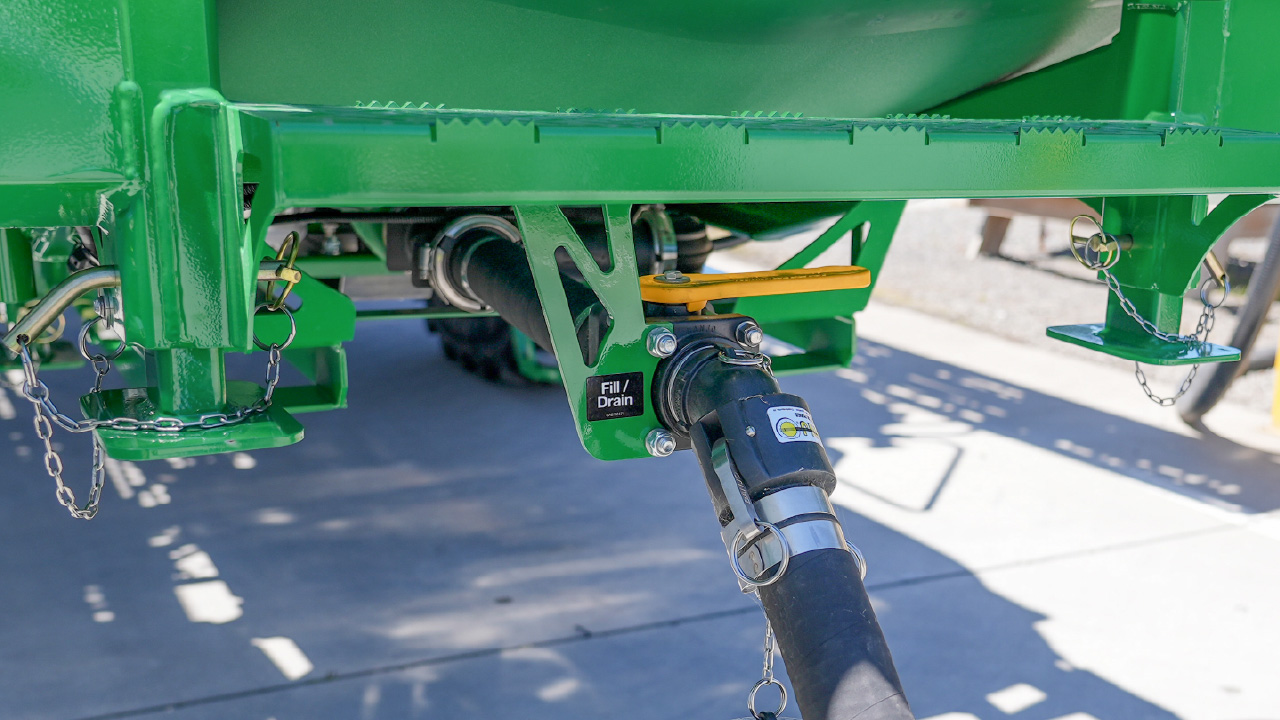

Front Fill
2″ Front fill

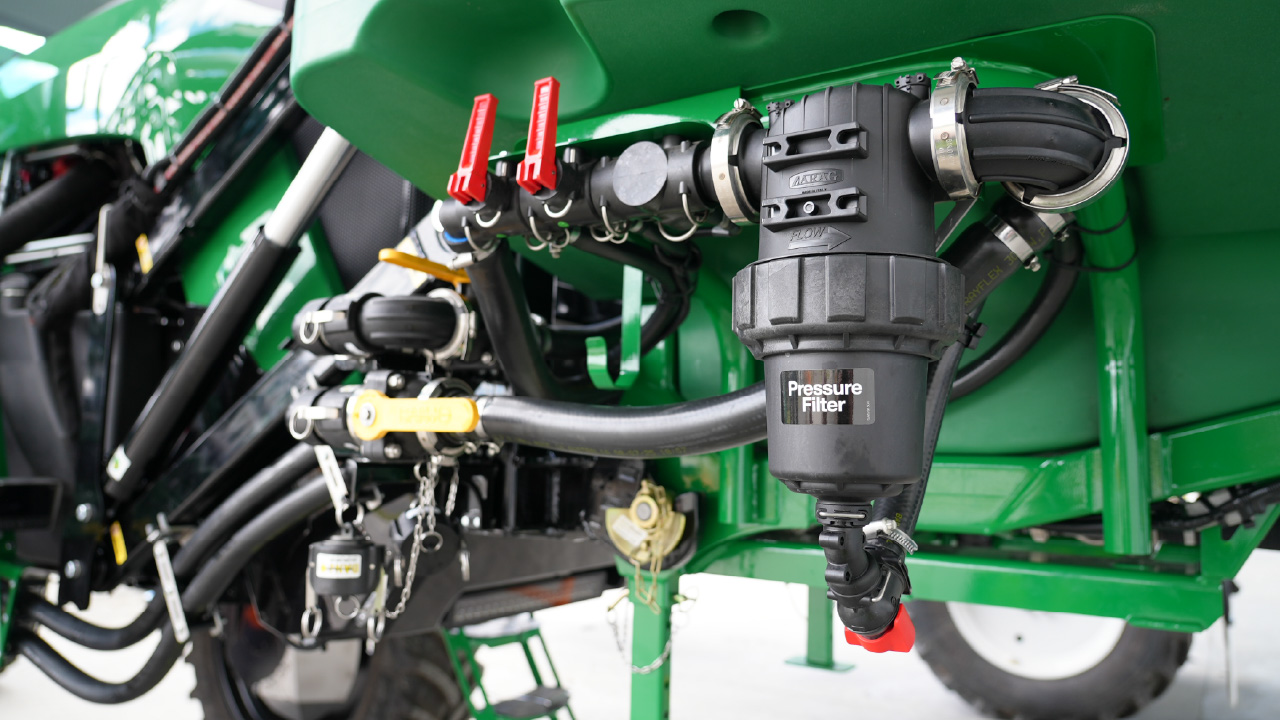

Complete standalone system
- Centrifugal spray pump
- Pressure filtration system
- Rinsing capability
- Agitation system
Dual functionality
- Extended capacity option
- Twin product spraying capability on G8 Crop Cruiser – Series 3
Specifications
| Features | |
|---|---|
| Product Tank | 1500L |
| Handwash Tank | 15L |
| Chassis | Heavy duty fully welded mild steel RHS with integrated fork lift pockets |
| Spray Pump | 650 l/min / 160 psi, centrifugal spray pump |
| Sprayer Controls | Right-hand side pressure manifold. 2” front fill / 2” inlet / outlet. |
| Filtration | 1 x Pressure with self-cleaning function |
| Lights | LED Ultra beam S Series Hella lights and indicators |
Dimensions
| Dimensions | Length (mm) | Width (mm) | Height (mm) | weight (kg) |
|---|---|---|---|---|
| 1500L | 1430 | 220 | 1440 | 316 |
