3, 4, 6, 8, 10 & 12m – Manual Booms

Goldacres booms have forged a reputation in the spraying industry as the strongest design with great standard features.

3m folding
3m folding

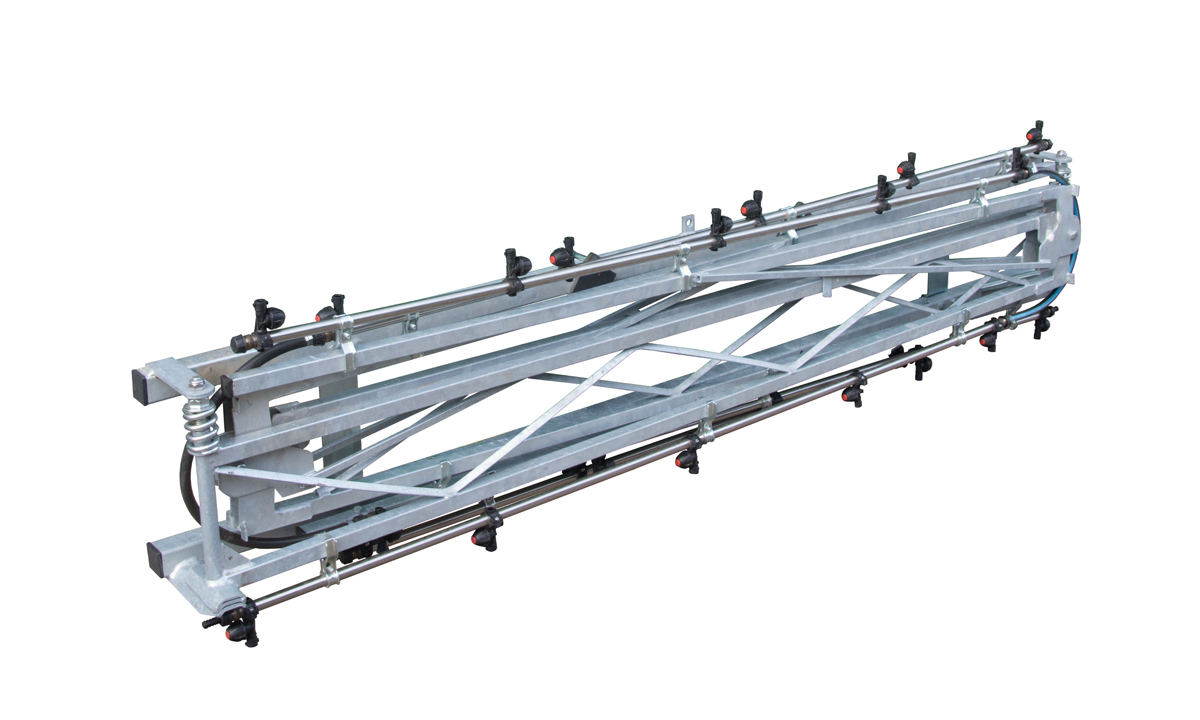

Vertical folding full aluminum boom. Can be mounted to any vehicle using the supplied mounting hardware or optional boom mount.

Specifications

Construction Lightweight aluminum
Nozzles 6 x IDK120-02 (yellow)
Nozzle bodies Mounted to stainless steel brackets behind the boom for added protection. TeeJet non-drip.
Fittings Supplied with u bolts and nuts for mounting to your vehicle
Weight 6 kg net
Part No GA4900093
4m folding
4m folding

Using aluminum outer wings to reduce overall weight. Crossfold design acts as a breakaway feature in the event of a collision with an object.

Specifications

Construction Mild steel and aluminum
Nozzles 8 x IDK120-02 (yellow)
Nozzle bodies Mounted to stainless steel brackets behind the boom for added protection. TeeJet non-drip.
Fittings Supplied with u bolts and nuts for mounting to your vehicle or optional boom mount frame
Weight 19 kg net
Part No GA4900096
6m folding
6m folding

Constructed from mild steel and finished using the Goldacres four stage paint process for the ultimate corrosion resistance. Outer wings feature flip over end section which reduces the overall folded width.
Crossfold design acts as a breakaway feature in the event of a collision with an object.

Specifications

Construction Mild steel
Nozzles 12 x IDK120-02 (yellow)
Nozzle bodies Mounted to stainless steel brackets behind the boom for added protection. TeeJet non-drip.
Fittings Supplied with u bolts and nuts for mounting to your vehicle or optional boom mount frame
Weight 37 kg net
Part No GA4907140
8m folding
8m folding

Constructed from mild steel and finished using the Goldacres four stage paint process for the ultimate corrosion resistance. Outer wings feature flip over end section which reduces the overall folded width.
Crossfold design acts as a breakaway feature in the event of a collision with an object.

Specifications

Construction Mild steel
Nozzles 16 x IDK120-02 (yellow)
Nozzle bodies Mounted to stainless steel brackets behind the boom for added protection. TeeJet non-drip.
Fittings Supplied with u bolts and nuts for mounting to your vehicle or optional boom mount frame
Weight 45 kg net
Part No GA4900105-MF-NS
10m crossfold
10m crossfold

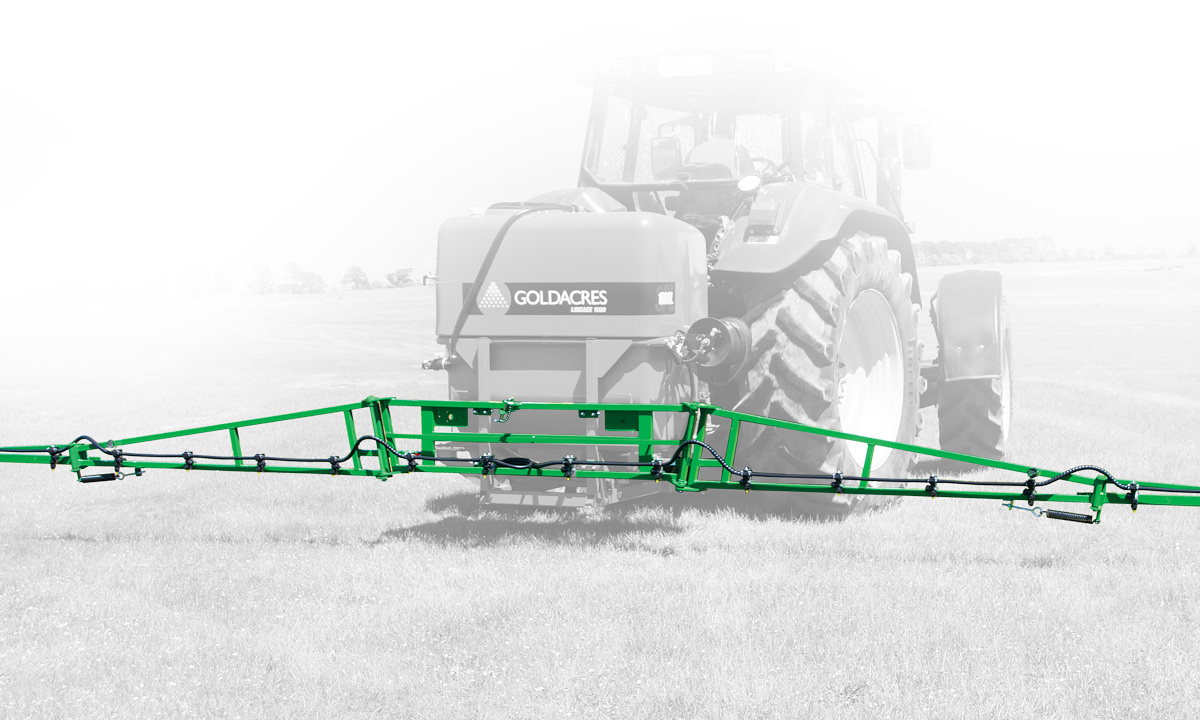

The manual-folding cross fold boom is constructed using Australian made mild steel in a fully trussed configuration. The trussing gives the boom superior strength and durability for when the going gets rough. The inner wing to centre section connection points are fully bushed and greasable to prolong its working life. The outer wings feature a spring back mechanism to protect the boom in the event of a collision. Non-drip nozzle bodies mounted behind the boom for added protection.


Hinge
Greaseable bushed hinges fitted throughout boom.


Breakaway

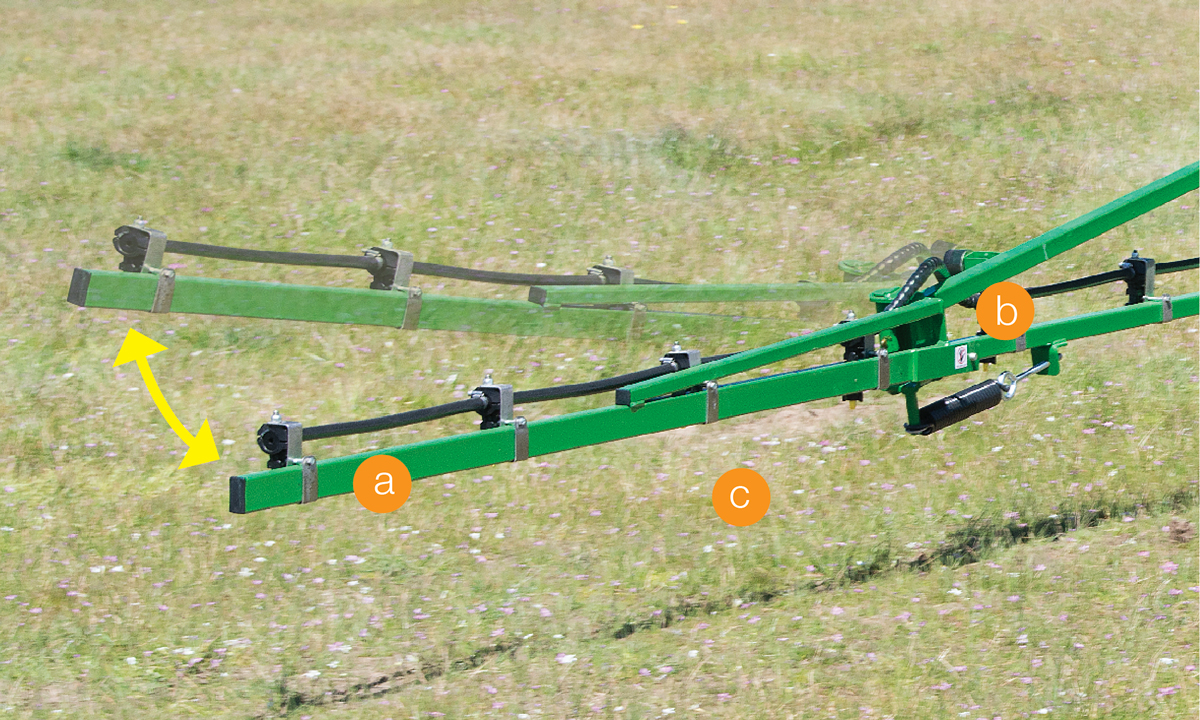

(a) 2D breakaway end tip with (b) rubber mounted stopper (Crossfold only). (c) Stainless steel nozzle brackets position behind boom wing.

Specifications

Construction Mild steel
Nozzles 20 x IDK120-02 (yellow)
Nozzle bodies TeeJet 3/4″ non-drip.
Fittings 2 x 50mm u bolts, 3m hose and hose clamps
Weight kg net
Part No GA4908470
10 & 12m crossover
10 & 12m crossover

The manual-folding crossover boom with twin link suspension allows the boom to float over the roughest terrain, keeping the boom level.
This is important as the quality of the spray job can be greatly affected by the boom being either too high or too low to the target. In addition, boom longevity is greatly improved because the roll stresses are absorbed by the suspension system.


Catch release handle

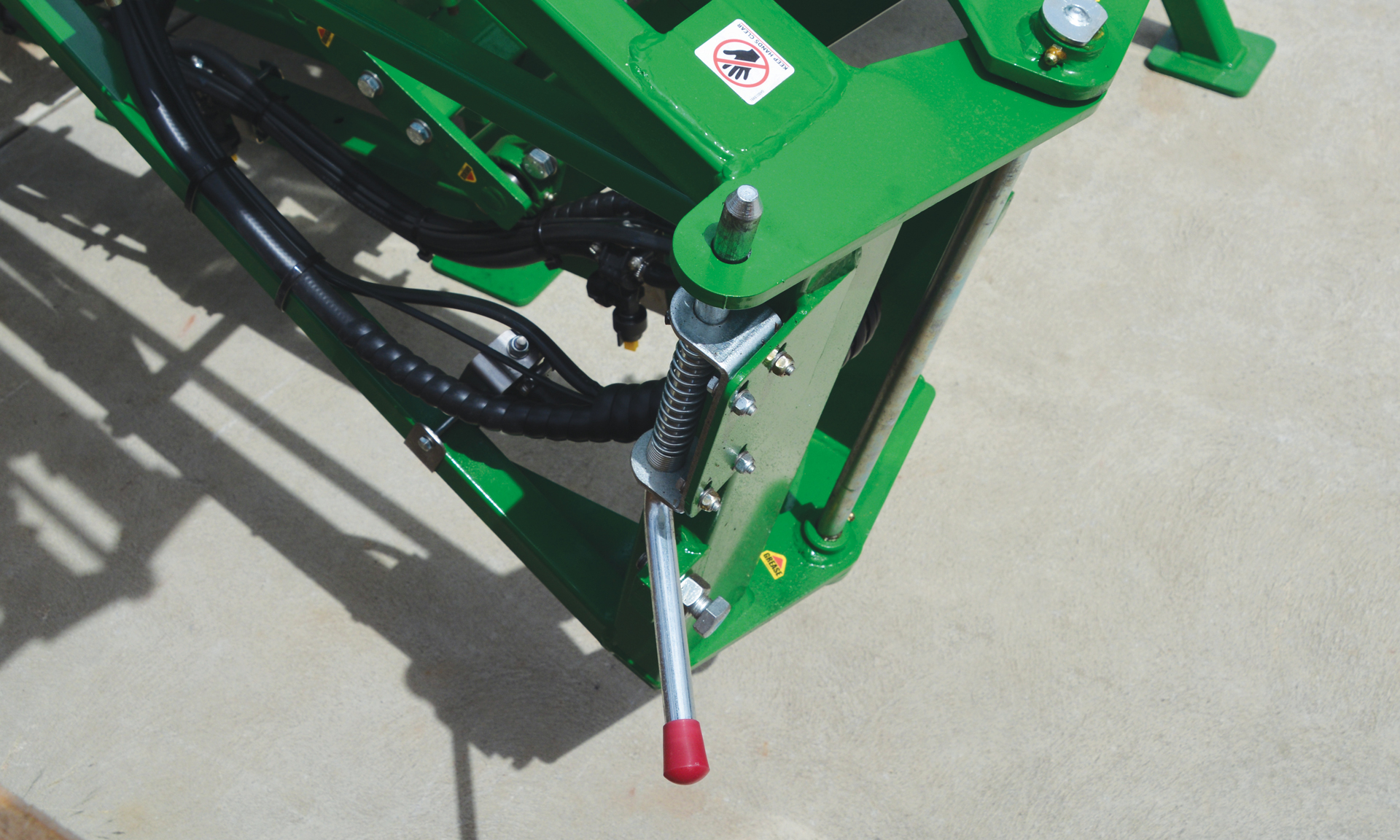

Spring loaded adjustable boom release handle ensures secure boom lock in open position.

Boom end
(a) 2D breakaway end tip with (b) rubber mounted stopper. (c) Stainless steel nozzle brackets position behind boom wing.


Centre boom section with Twinlink suspension

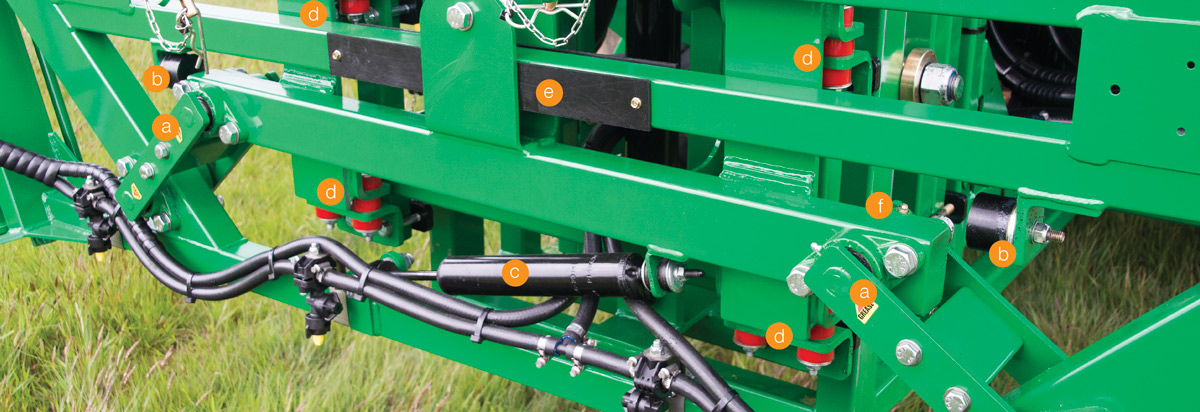

(a) The boom structure floats on twin links which are supported by greasable sealed roller bearings. The angled links provide self-levelling properties without the need for springs. (b) Rubber roll stoppers provide cushioning in the event of the boom reaching full travel. (c) A dampener connected between the mounting frame and boom limits rapid roll oscillation. (d) The connection between the suspension system and the three-point linkage is via polyurethane bushes. The bushes help maximise shock absorption. (e) Poly slide strip helps transfer yaw forces whilst still allowing the boom to roll freely

Specifications

Construction RHS mild steel
Nozzles IDK 120-02 (yellow)
Nozzle bodies 1/2″ Teejet non-drip
Fittings U-bolts & nuts
10m Weight 220kg
12m Weight 240kg
10m Part No GA4908480
12m Part No GA4908490
