Pro-Reel® RTV300 – 300L

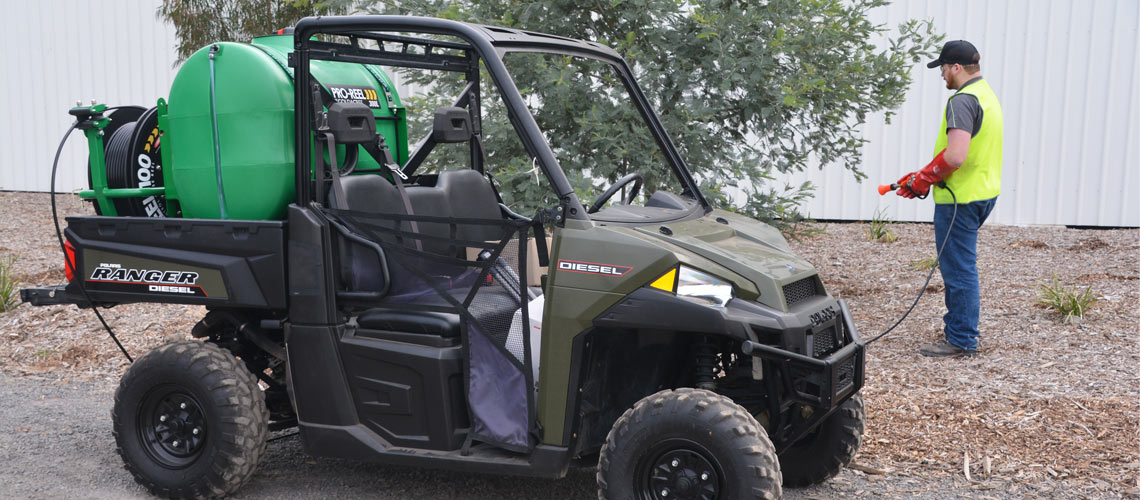

Got steep or rugged terrain you need to spray? The Pro-Reel® auto rewind Traymount sprayers allow you to spray wherever you may roam. Take the work out of hose reel spraying.

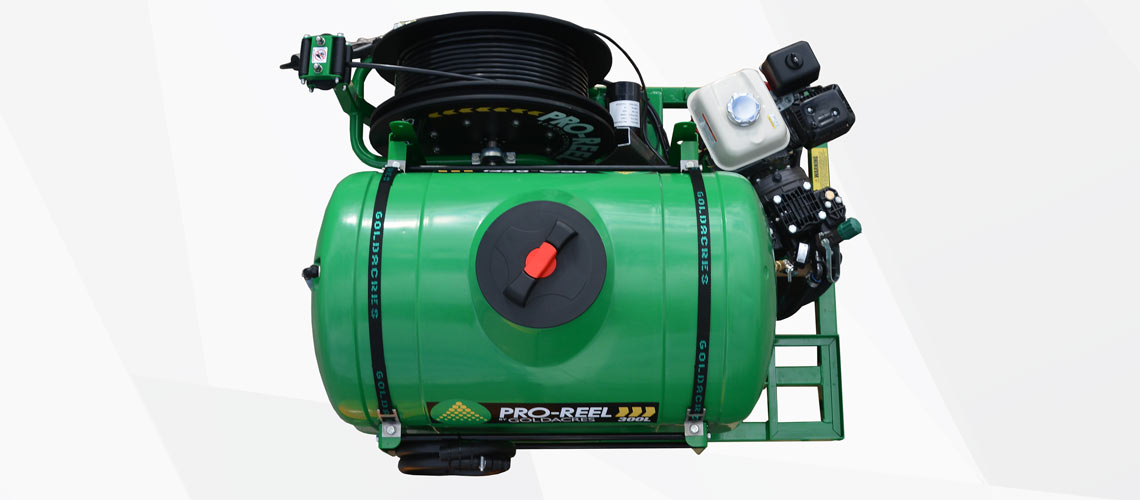

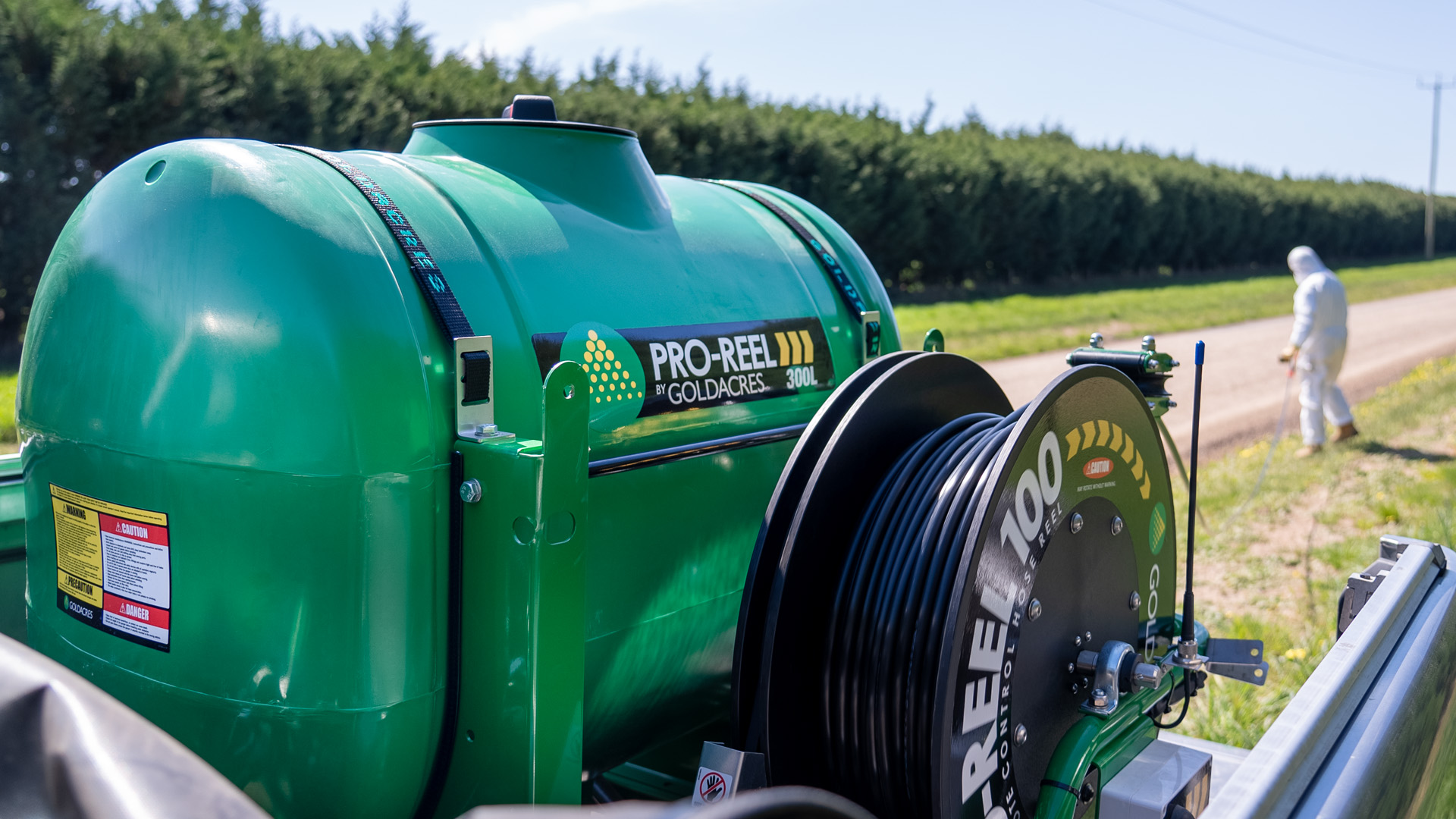

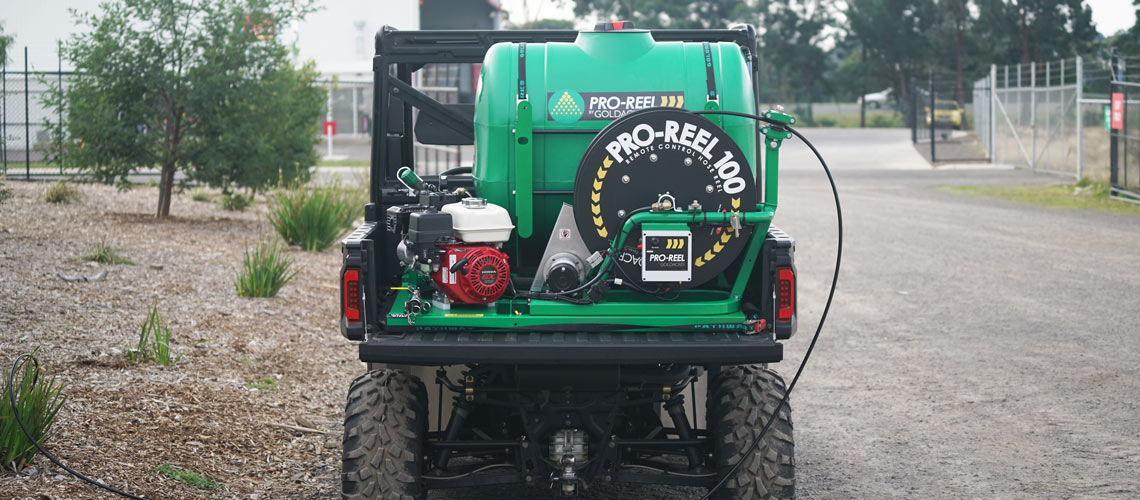

Designed with operator safety and convenience in mind the RTV300 features a forward mounted 300L chemical tank for extra stability. In addition, a rear mounted single 100m Pro-Reel® is fitted and provides a compact layout suited to most RTV vehicle tubs.

The petrol engine driven pump is rated at 40 l/min @ 40 bar (580psi), this allows the operator to apply large volumes of chemical over a large area in a very short amount of time. Excess flow from the pump is used to keep the chemical tank well agitated, ensuring a good even chemical to water mix at all times.

Typical uses

Features 300L
Broadacre spraying
Rowcrop spraying
Vegetable spraying
Horticultural spraying
Weed control
Pest control
Industrial spraying
Municipal spraying
Contracting
Specialised cleaning
Inoculant spraying
Fertiliser application
Fire Fighting
Water transfer
Irrigation
Washdown
Hose Reel
Hose Reel

The Pro-Reel® is a remote-controlled automatic rewind hose reel that is powered by a 12-volt motor, completely removing the need to manually wind up the hose after completing your spraying tasks. The Pro-Reel® will make your spraying simpler, safer and quicker.

Features

  • 2 channel radio receiver (200m range)
  • 12dc motor with adjustable v-belt
  • Anti-corrosion poly reel plates
  • A swivel hose feeder with 360º rollers evenly distribute the nylon hose
  • High-flow stainless steel internal inlet shaft with stainless external hardware ensure the reel can withstand the harshest environments
Control system
Control system

A powerful two-channel radio receiver (433 MHz FM) with a 200m range controls the Pro-Reel® rewind function. The remote features a single button motor shutdown for emergencies while a manual override switch allows the hose to be rewound if the remote loses power, is damaged or lost.

Nylon 12 hose
Nylon 12 hose

Nylon 12 hose is the toughest, anti-kink hose available. With an OD of 8mm and a thin wall, it enables 50, 100 or 150 metres of hose to neatly fit the reel while providing minimal pressure loss. This hose is Ideally suited to the pro reel due to its high-pressure rating and smooth outer surface.

Motor
Motor

A simple 12 volt, 150w high torque motor is used which draws 16amps and drives at 450 rpm. The motor drives the reel via a simple V belt configuration at around 6 km/h which is a comfortable walking speed.

Controller
Controller

A quality Udor 3 way manual controller is used, featuring pressure regulation and a complete bypass flow dump valve for easy engine starting and precise pressure adjustment. The controller will handle up to 120 l/min of flow and 580 psi pressure.

Turbo 400 gun
Turbo 400 gun

The turbo 400 gun is used across the range and it handles up to 70l/min of flow and 700 psi of pressure. It features a trigger lock handle with an easy adjustment lever from a straight stream to a fan. A hose swivel is fitted to eliminated hose tangles.

Fuel tray*
Fuel tray*

Handy Jerry can tray, holds a 5 litre Jerry can, max size of 270 x 190mm. *Jerry can not included.

Motor/pump
Motor/pump

Quality Udor high-pressure diaphragm pumps are used across the range. The pumps are perfectly matched to suit the desired tank size and sprayer configuration and are coupled to the Honda engine via a 6:1 reduction gearbox. This pump and motor combination delivers an excellent mix of reliability, pressure and spray volume. The engine has a 3-year warranty. (Jerry can not included)

Dimensions
Dimensions
Dimensions W (mm) L (mm) H (mm) w (kg)
300L 1346 1149 1010 160

Specifications "Work Ready"
Feature Description
Hose length 100m
Tank sizes 300L
Engine Honda GX200 pull start
Pump Udor 40 l/min 40 bar (580 psi) twin diaphragm
Controller Manual 3 way, manual pressure adjustment with dump valve
Hose reel 100m Pro-Reel® remote rewind
Remote shutoff Remote engine and pump shut-off 200m range
Tank sight tube Standard
Spray gun Turbo 400, adjustable spray pattern, 2.5mm nozzle
Suction filter 50 mesh with shut-off
Chassis Fully welded RHS / tubular construction
