Pro-Reel® Single Traymount Sprayer – 400-600L

Designed for the professional sprayer, fitted with a high-pressure diaphragm pump, 100m Pro-Reel® remote auto rewind hose reel, quality components and compact dimensions.

The Pro-Reel® traymount range of sprayers are ideal for operators who require maximum efficiency from their sprayer. Available in 400 & 600L chemical tank capacities, there is a size to suit just about every application.

Featuring the Pro-Reel® with 100m of hose, high-pressure twin diaphragm pump, rated to 40l/min @ 40 bar (580 psi) driven by a petrol engine and a spray pattern which is fully adjustable from the trigger jet gun, allows the operator to spray large volumes in a straight stream or fan spray pattern.

Typical uses

Features 400L 600L
Broadacre spraying
Rowcrop spraying
Vegetable spraying
Horticultural spraying
Weed control
Pest control
Industrial spraying
Municipal spraying
Contracting
Specialised cleaning
Inoculant spraying
Fertiliser application
Fire Fighting
Water transfer
Irrigation
Washdown

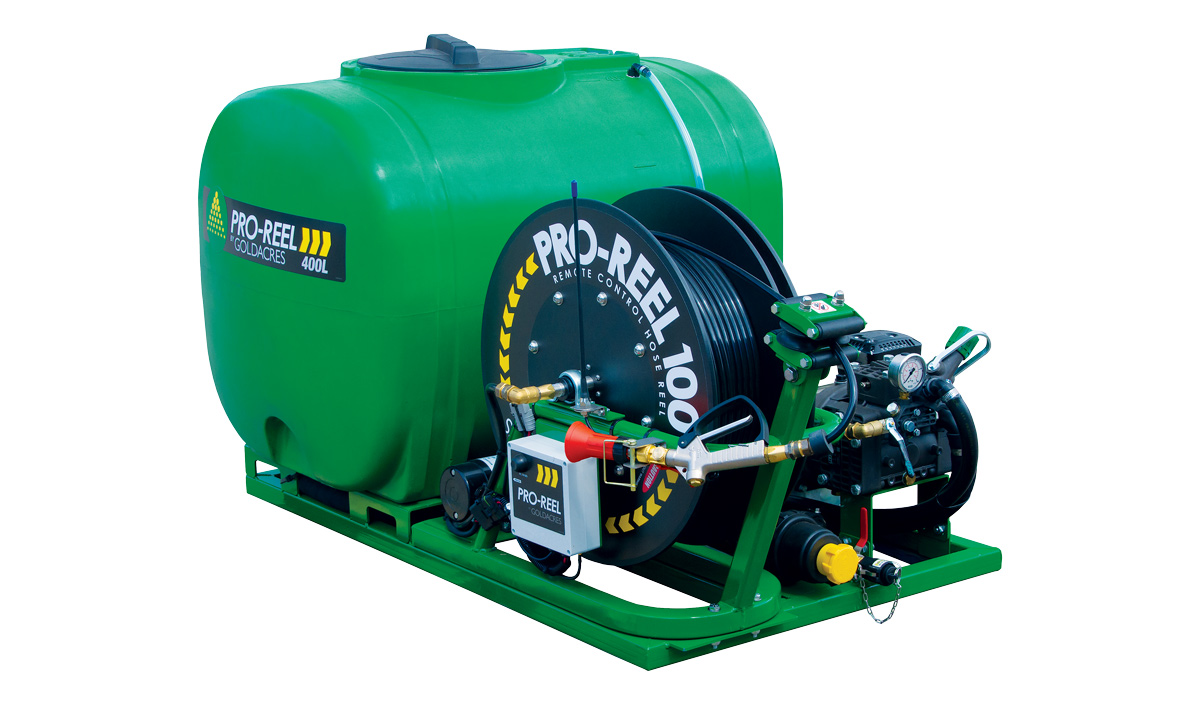

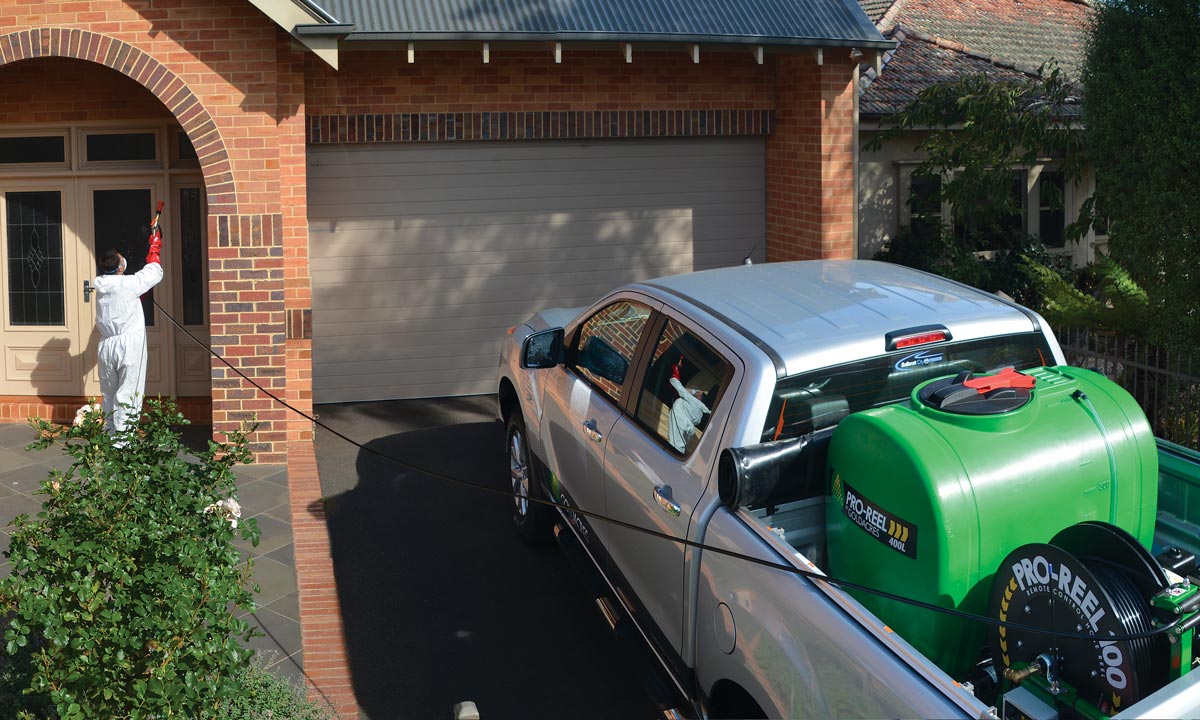

400L Pro-Reel® Single
400L Pro-Reel® Single

400L Pro-Reel® Single

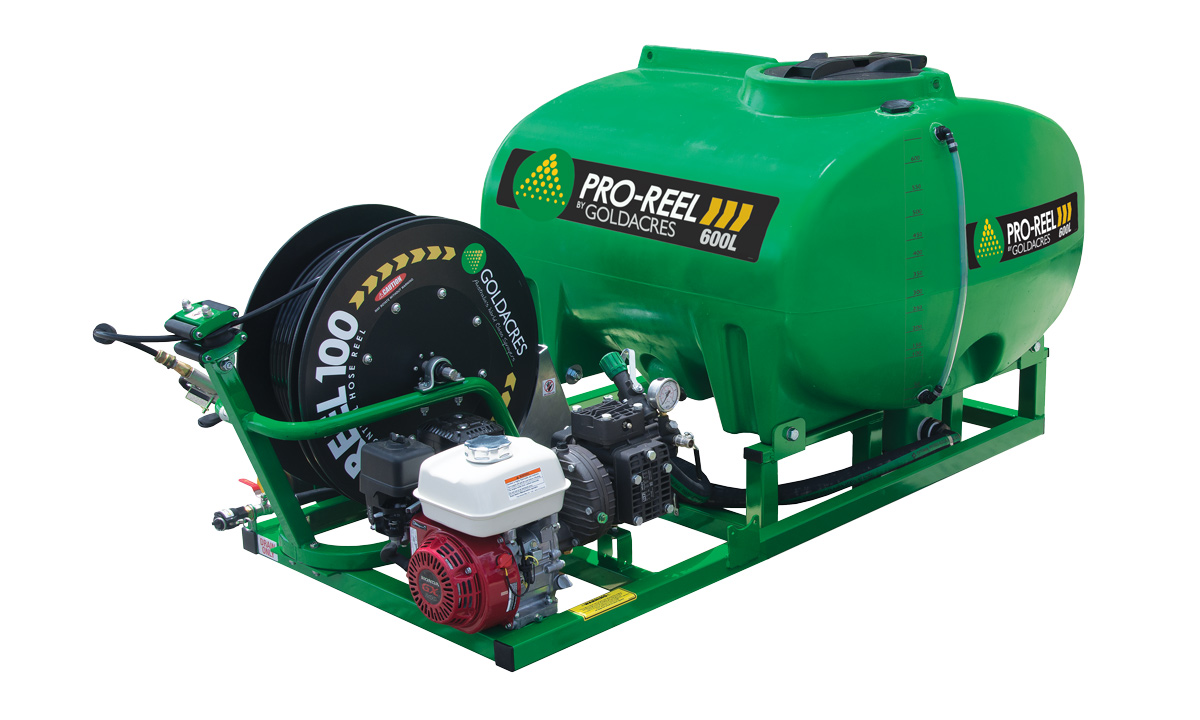

600L Pro-Reel® Single
600L Pro-Reel® Single

600L Pro-Reel® Single

Hose Reel
Hose Reel

The Pro-Reel® is a remote-controlled automatic rewind hose reel that is powered by a 12-volt motor, completely removing the need to manually wind up the hose after completing your spraying tasks. The Pro-Reel® will make your spraying simpler, safer and quicker.

Features

  • 2 channel radio receiver (200m range)
  • 12dc motor with adjustable v-belt
  • Anti-corrosion poly reel plates
  • A swivel hose feeder with 360º rollers evenly distribute the nylon hose
  • High-flow stainless steel internal inlet shaft with stainless external hardware ensure the reel can withstand the harshest environments
Control system
Control system

A powerful two-channel radio receiver (433 MHz FM) with a 200m range controls the Pro-Reel® rewind function. The remote features a single button motor shutdown for emergencies while a manual override switch allows the hose to be rewound if the remote loses power, is damaged lost.

Nylon 12 hose
Nylon 12 hose

Nylon 12 hose is the toughest, anti kink hose available. With an OD of 8mm and a thin wall it enables 50, 100 or 150 metres of hose to neatly fit to the reel while providing minimal pressure loss. This hose is Ideally suited to the pro reel due to it’s high pressure rating and smooth outer surface.

Hand wash tank
Hand wash tank

As an added safety and convenience the Pro-Reel units can be fitted with a hand wash tank which also incorporates a removable soap dispenser. (standard on Pro-Reel® Twin units)

Motor
Motor

A simple 12 volt, 150w high torque motor is used which draws 16amps and drives at 450 rpm. The motor drives the reel via a simple V belt configuration at around 6 km/h which is a comfortable walking speed.

Controller
Controller

A quality Udor 3 way manual controller is used which features pressure regulation and a complete bypass flow dump valve for easy engine starting and precise pressure adjustment. The controller will handle up to 120 l/min of flow and 580 psi pressure.

Turbo 400 gun
Turbo 400 gun

The turbo 400 gun is used across the range and it handles up to 70l/min of flow and 700 psi of pressure. It features a trigger lock handle with an easy adjustment lever from a straight stream to a fan. A hose swivel is fitted to eliminated hose tangles.

Motor/pump
Motor/pump

Quality Udor high-pressure diaphragm pumps are used across the range. The pumps are perfectly matched to suit the desired tank size and sprayer configuration and are coupled to the Honda engine via a 6:1 reduction gearbox. This pump and motor combination delivers an excellent mix of reliability, pressure and spray volume.

400L dimensions
400L dimensions
Dimensions W (mm) L (mm) H (mm) W (kg)
400L 1030 1390 885 178

600L dimensions
600L dimensions
Dimensions W (mm) L (mm) H (mm) W (kg)
600L 1400 2087 835 230

Specifications
Feature Description
Tank sizes 400 or 600L
Engine Honda GX200 manual start
Pump Udor 40 l/min 40 bar (580 psi) twin diaphragm
Controller Manual 3 way, manual pressure adjustment with dump valve
Hose reel 100m Pro-Reel® remote rewind (150m optional)
Remote shutoff Remote engine and pump shut-off 200m range
Tank sight tube Standard
Spray gun Turbo 400, adjustable spray pattern, 2.5mm nozzle
Suction filter 50 mesh with shut-off
Chassis Fully welded RHS / tubular construction
Nozzle sizes 1.5, 2.0, 2.5, 3.0 and 3.5mm (2.5mm standard)
