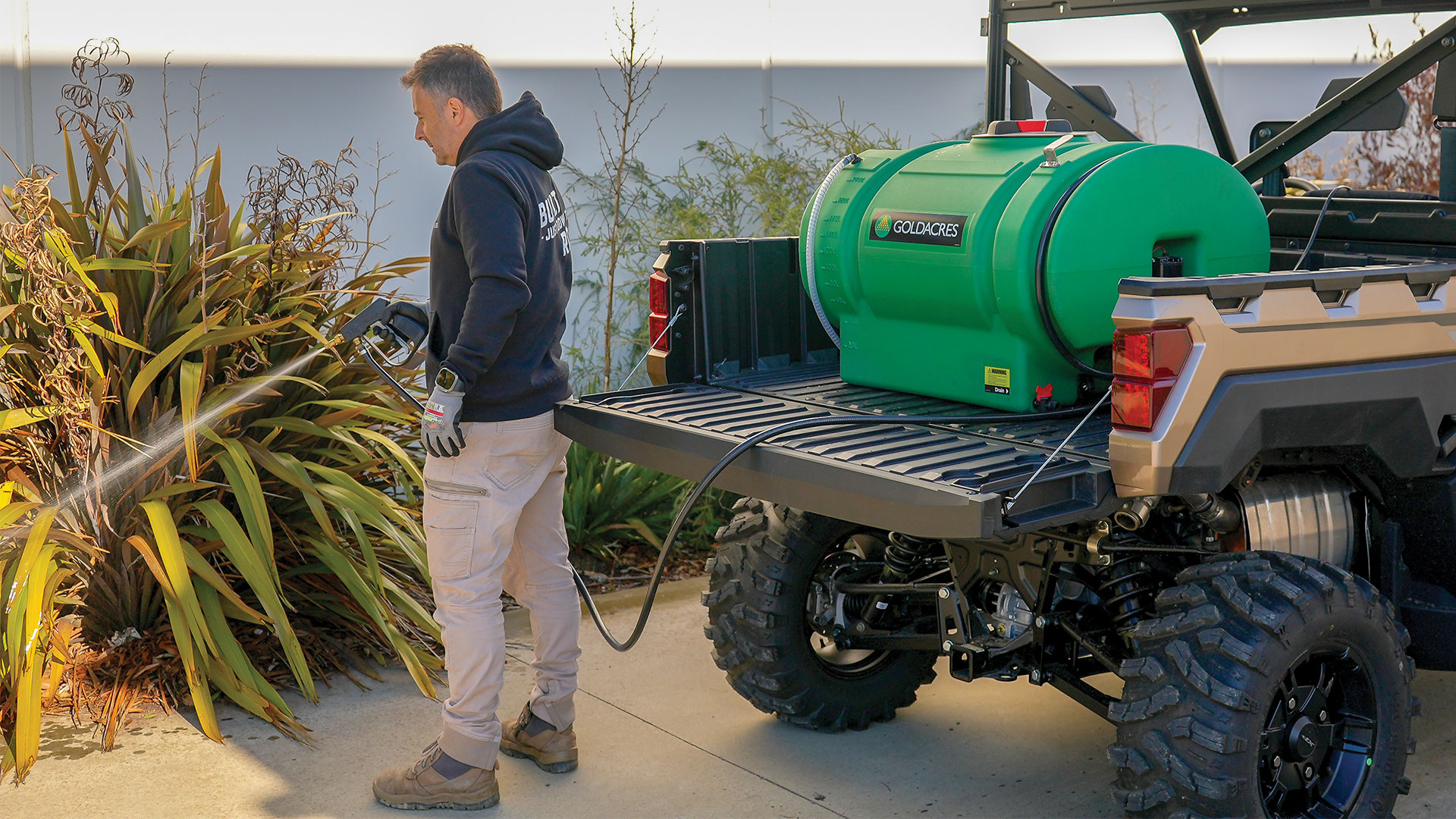

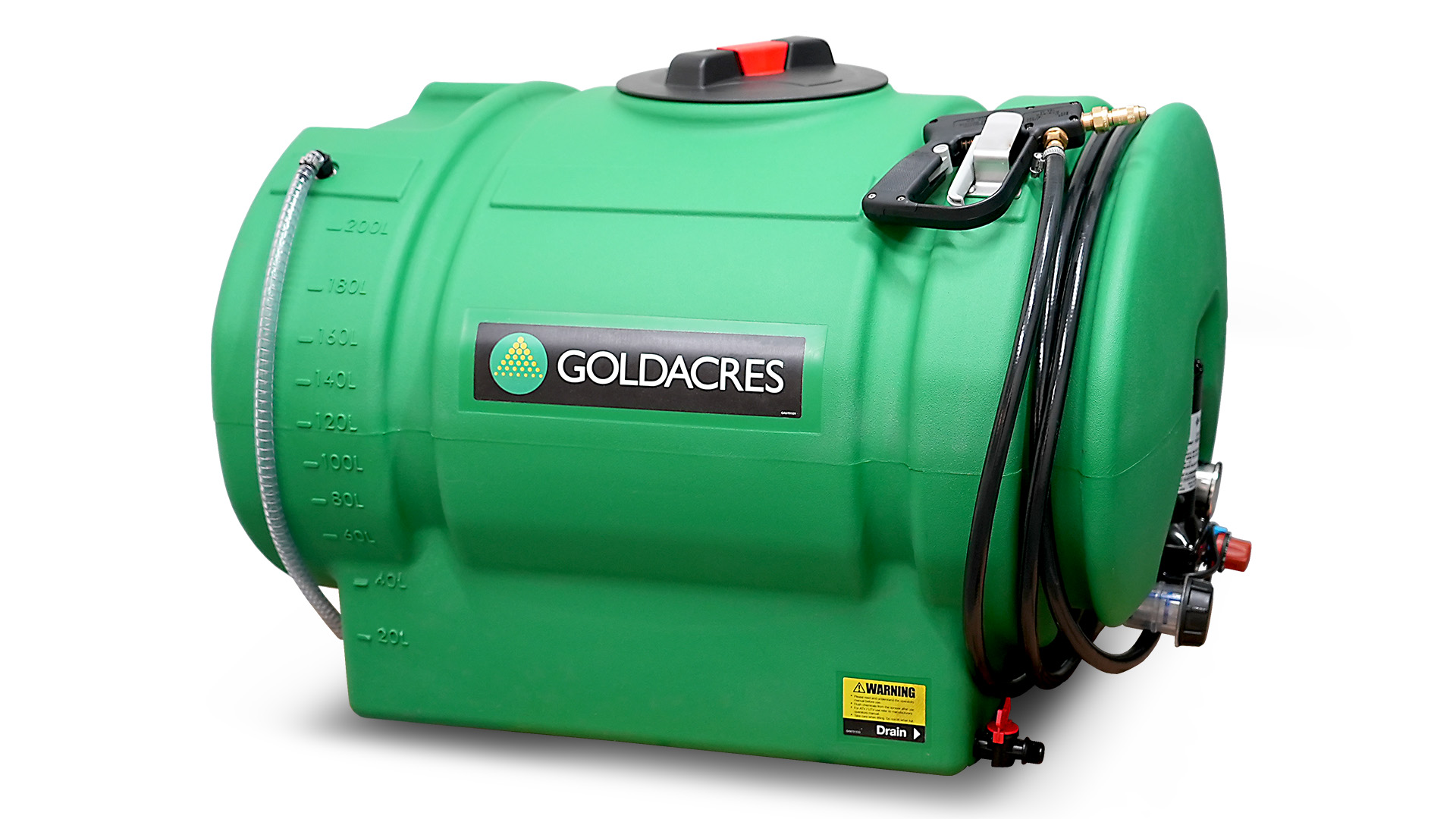

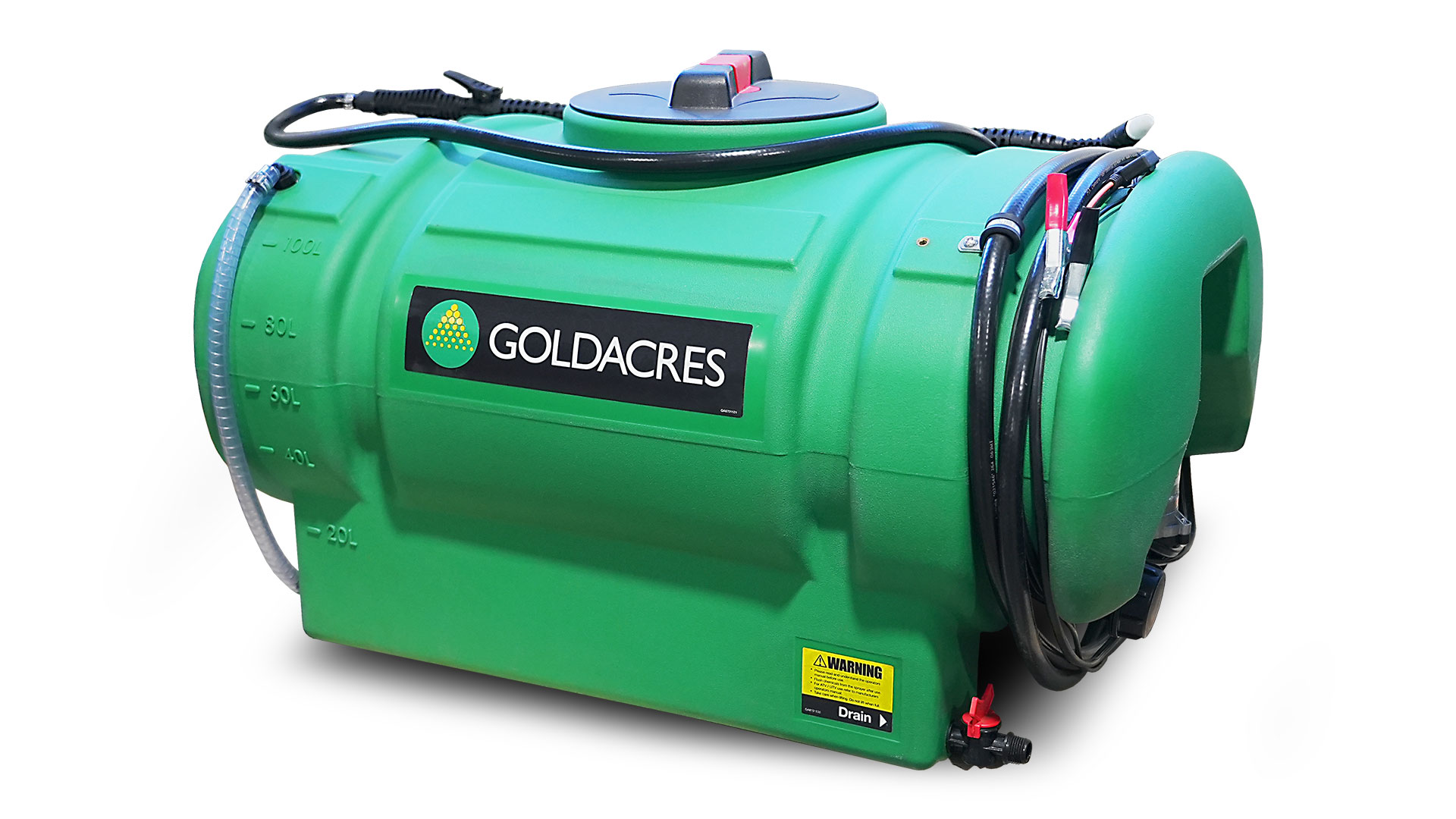

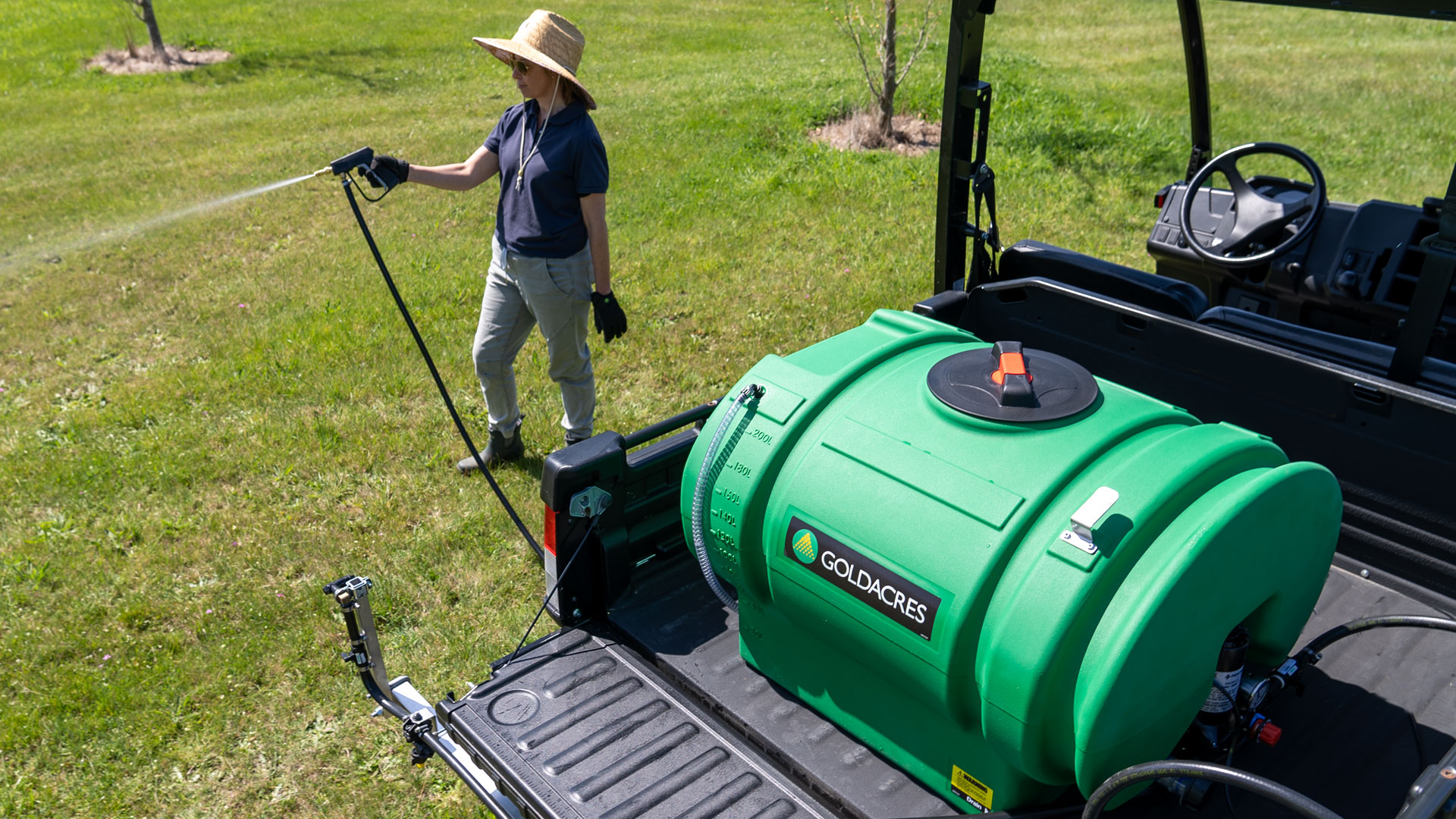

The Traymate is a heavy duty 12-volt sprayer designed for either spot spraying or adapting to operate a small boom.
Featuring a robust rotationally moulded UV resistant tank, high fl ow pump with pressure regulator and pistol type spray gun.
Typical uses
| Features | 100L | 200L | 400L |
|---|---|---|---|
| Broadacre spraying | |||
| Rowcrop spraying | |||
| Vegetable spraying | |||
| Horticultural spraying | |||
| Weed control | ✓ | ✓ | ✓ |
| Pest control | ✓ | ✓ | ✓ |
| Spraying | ✓ | ✓ | ✓ |
| Municipal spraying | ✓ | ✓ | ✓ |
| Contracting | ✓ | ✓ | ✓ |
| Specialised cleaning | |||
| Inoculant spraying | |||
| Fertiliser application | |||
| Fire Fighting | |||
| Water transfer | |||
| Irrigation | |||
| Washdown |
Dimensions
| Dimensions | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| 100L | 800 | 520 | 500 |
| 200L | 850 | 680 | 560 |
| 400L | 1150 | 900 | 900 |
Specifications
| Feature | 100L | 200L (Boom Ready) | 400L (Boom Ready) |
|---|---|---|---|
| Tank capacity | 100L | 200L | 400L |
| Pump | 6.8 l/min 107 psi 12v Shurflo pump | 20 l/min 90 psi 12v Shurflo pump | 20 l/min 90 psi 12v Shurflo pump |
| Spray gun | Pistol grip | Pistol grip | Pistol grip |
| Hose | 5m of nitrile lined chemical hose | 5m of nitrile lined chemical hose | 5m of nitrile lined chemical hose |
| Leads | Electrical leads with battery clips | Electrical leads with battery clips | Electrical leads with battery clips |
| Weight (unladen) | 26kg | 36kg | 56kg |
