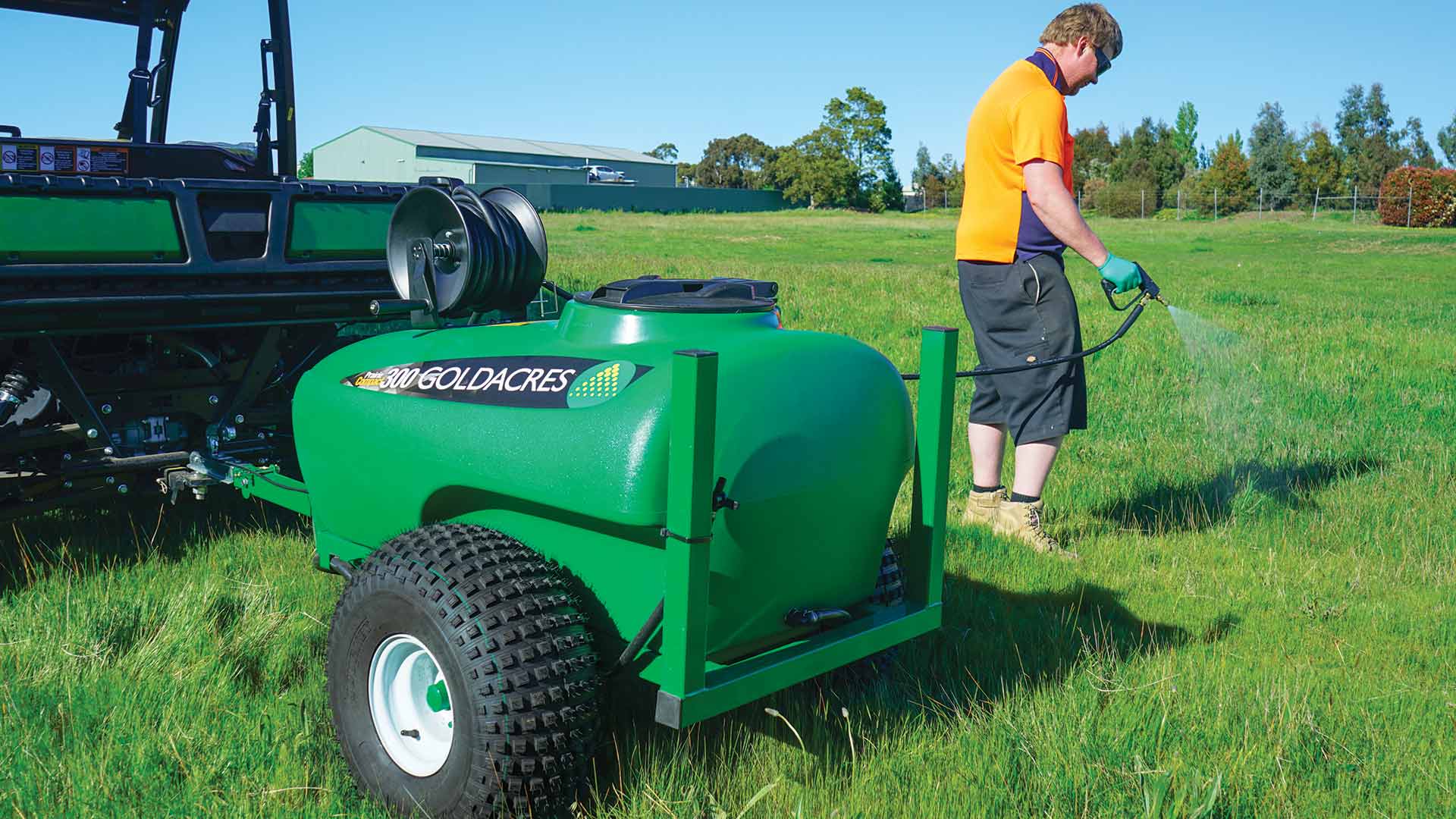

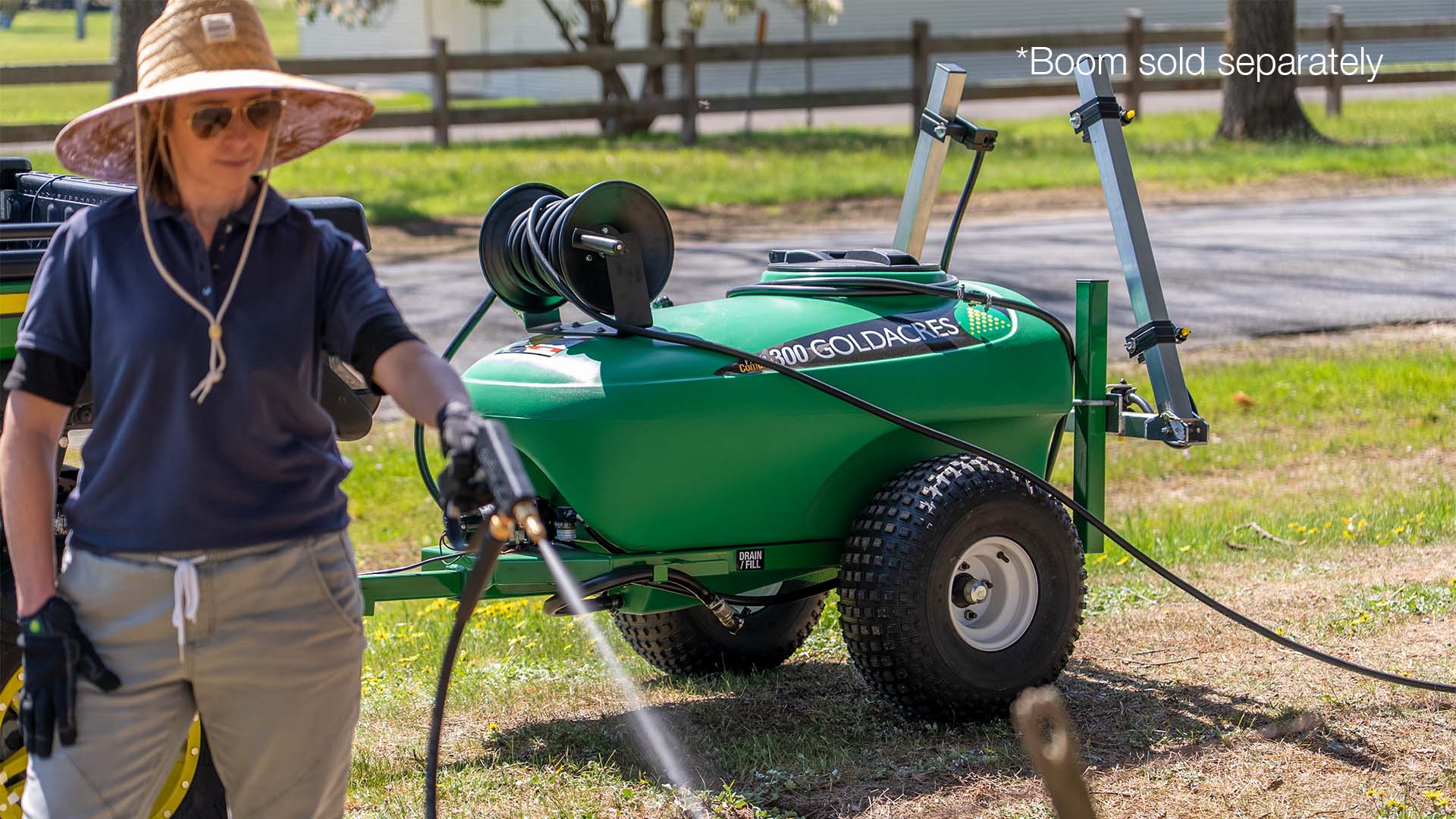

Compact Trailed Sprayer – 300L

The Compact 300L 12 volt trailer is ideal for use behind an ATV motorbike or utility vehicle.
The trailer features rotationally moulded UV resistant poly tanks with a complete drain sump, 8” (540mm OD) turf wheels, 4 stud mini hubs, 12v Shurflo 20 l/min 90 psi pump with a pressure regulator and gauge, 15m steel hose reel with quality pistol grip gun and adjustable nozzle with 50mm tow ball coupling.
All packaged on a robust full RHS frame. Compact 300L can be fitted with a 4m steel/aluminium folding boom.

Typical uses


Features 300L
Broadacre spraying
Rowcrop spraying
Vegetable spraying
Horticultural spraying
Weed control
Pest control
Industrial spraying
Municipal spraying
Specialised cleaning
Inoculant spraying
Fertiliser application
Fire Fighting
Water transfer


Dimensions & weight
Dimensions L (mm) W (mm) H (mm) Weight (kg)
300L 2450 1200 1400 125

Feature 300L
Tank Rotationally moulded UV resistant poly tanks
Wheels 8″ (540mm od) turf wheels, 4 stud mini hubs
Pump 20 l/min – 90 psi 12 volt Shurflo pumps with a pressure regulator & gauge
Hose reel 15m steel hose reel with quality pistol grip gun with an adjustable nozzle
Towing 50mm ball coupling

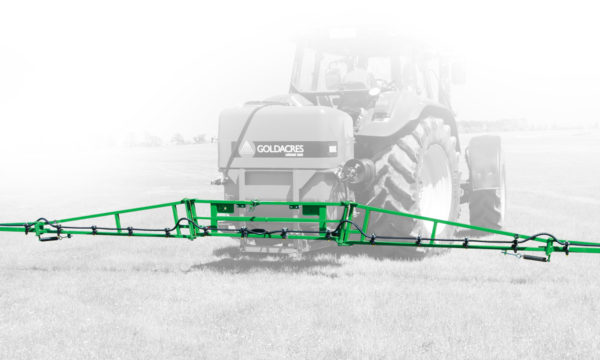

Boom 3m aluminium / steel manual folding boom
