Premium Vehicle Cabin

Cabin

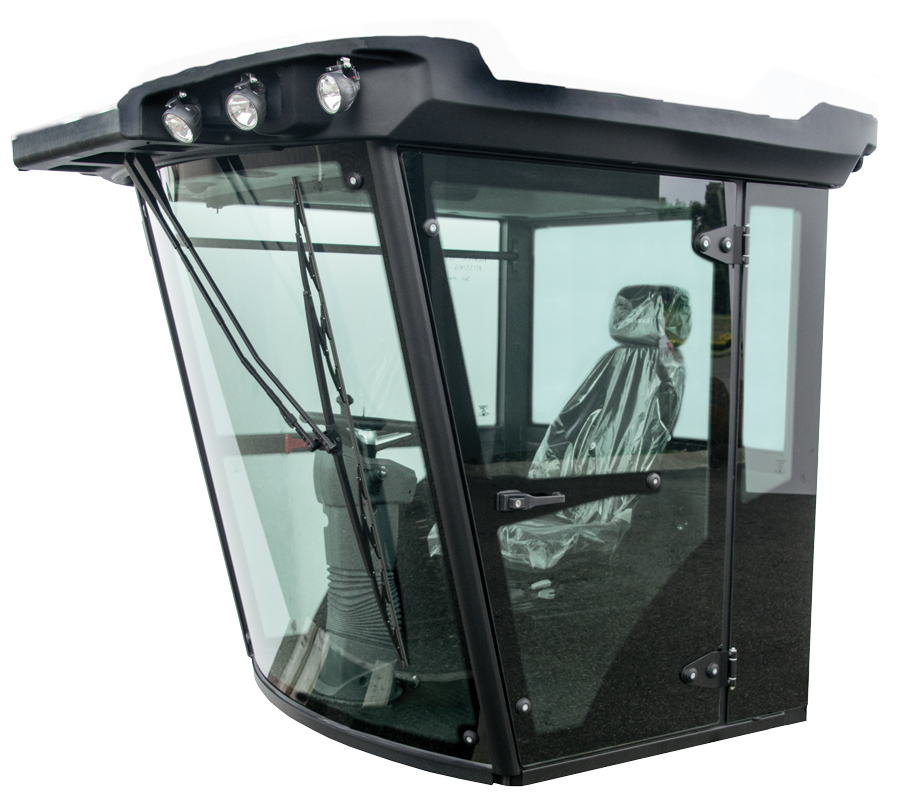

Goldacres offer a premium cabin with essential features and comforts to help you get through the most demanding days. These cabins are fitted to our most popular medium-frame Crop Cruiser sprayer range come with many practical features.

The cabins can be used for applications from spraying to harvesting as well as many industrial and agricultural situations.



Operator Seat
Operator Seat

Our cabin is fitted with a Grammer fully adjustable air-ride seat which features a lap-sash seat belt and left-hand armrest for added comfort.

No. Feature Function
1 Fore / Aft adjustment By lifting this lever the seat can be slid backwards or forward to the desired position.
2 Height adjustment By lifting this lever, air will be pumped into the airbag suspension. By lowering this lever, air is exhausted from the airbag
3 Seat pan angle adjustment To adjust the angle of the seat pan, pull the handle upwards. By exerting pressure on or off the front or rear part of the seat pan it can be moved to the desired position.
4 Absorber The cushioning effect can be adjusted for on and off-road driving conditions. 1-Soft, 2-Medium, 3-Hard.
5 Seat Depth adjustment To adjust the depth of the seat cushion, pull the handle upwards. By moving the seat cushion backwards the desired seating position can be reached.
6 Tilt The lever on the right-hand side of the seat allows the backrest to be tilted forward or rearward. Pulling the lever upwards releases the backrest so it can be repositioned. Release to lock.
7 Arm Rest Adjust By turning this knob the armrest can be angled to suit. The cover on the side can be removed and loosen the nut, and adjust the armrest up/down to the desired position.
8 Fore/Aft isolator Shock impacts in the driving direction can be better absorbed by the driving seat. Position 1 Off / Position 2 On
9 Seat Belt Operator lap seat belt must be fitted whenever the operator is seated in the cabin.

Overhead Components
Overhead Components

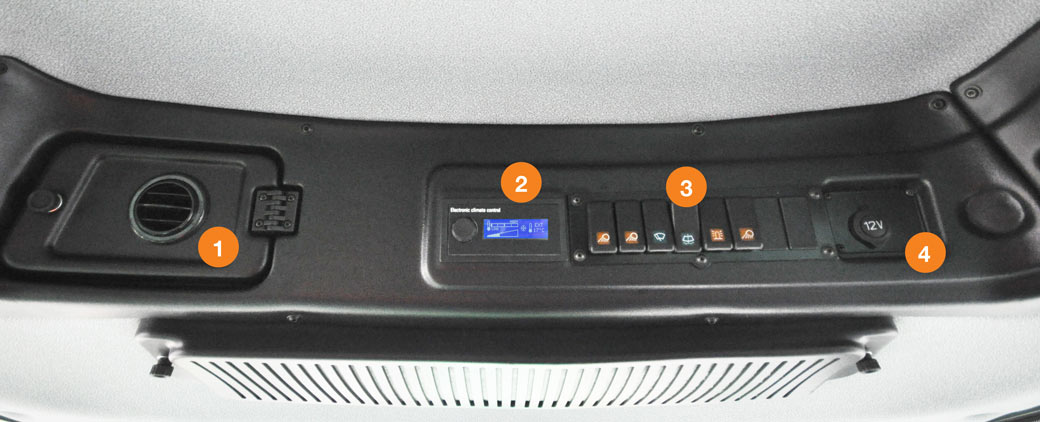

Overhead cabin switches control the air conditioning and heating systems, external temperature display, light and wiper functions as well as a 12-volt power outlet.

No. Feature
1 Cooler bottle storage cooled from the air conditioner
2 Electronic climate control / air conditioner
3 Lights & wiper switches – Outer front work lights, Inner front work lights, wipers, windscreen washers, rotating beacon, rear cabin work lights
4 12-volt outlet



Overhead Components
Overhead Components

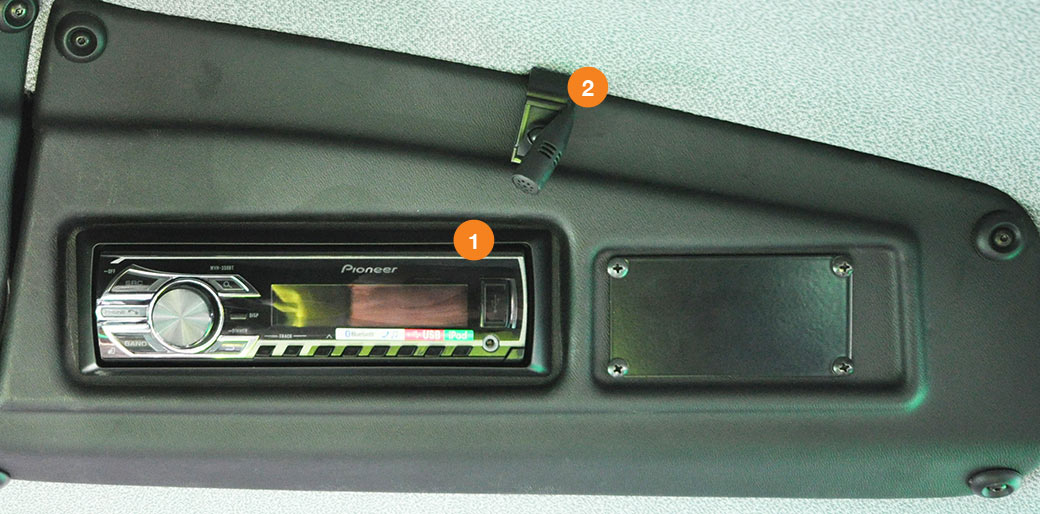

No. Feature
1 AM / FM Radio – CD player
2 Bluetooth microphone

Steering Column
Steering Column

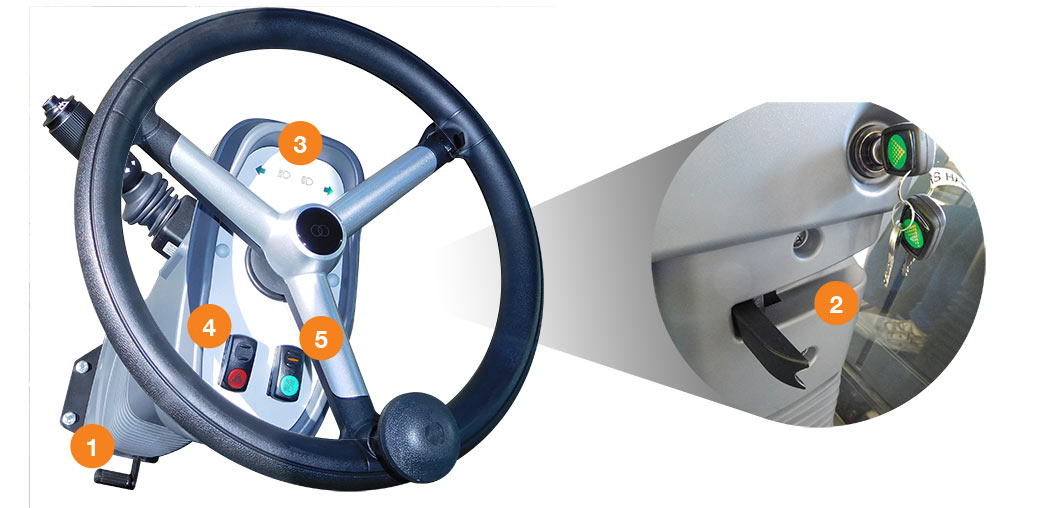

An adjustable steering column is fitted for optimum operator comfort and easy access throughout the cab.

No. Feature
1 Tilt adjustment
2 Height adjustment
3 Signal indicators, low and high beam indicator
4 Hazard light switch
5 Park light and low beam switch

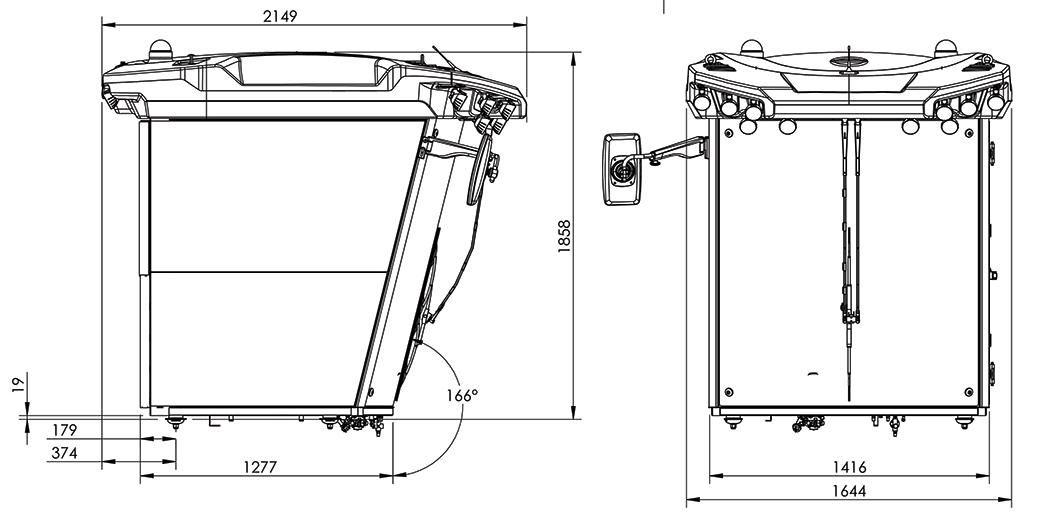

Cabin Dimensions
Cabin Dimensions
Length Width Height
2149mm 1644mm 1858mm

Cabin mounting points
Length Width Bolt
780mm 1170mm 16mm

Specifications & weight
Feature Description
Cabin construction Black powder paint of cab with Cataforesi treatment against corrosion
Curved front and rear glass and full length side glass
Access door on left side
4 mounting vibration isolator blocks
Right hand side cabin mounted mirror
Seating Grammer air ride seat with adjustable arm rests and seat belt
Fold away passenger seat
Steering Two way tilt adjustable and telescopic steering column.
Lighting 6 front work lamps 12v 55w
2 rear work lamps 12v 55w
2 rotating beacons
Interior light 12v
Heating / Cooling Air conditioning and heater 12v with electronic climate control; (cabin parts only extra parts needed to complete the system)
Air filter Carbon filter (Pressurised cabin)
Cool box
Front sun visor (Roll down front blind)
Audio / Electrics Twin USB charge points plus 12v power take off point for electronic accessories
Bluetooth AM/FM, USB Radio
Speakers for radio
Complete electric cables and switches 12v
Wiper 12v with screen washer and water tank
Fuse box 12v
Full wiring diagram
Insulation High quality soft touch interior trim with Sound insulation fitted to reduce noise
Floor with rubber mat (with cut outs for foot pedals)
