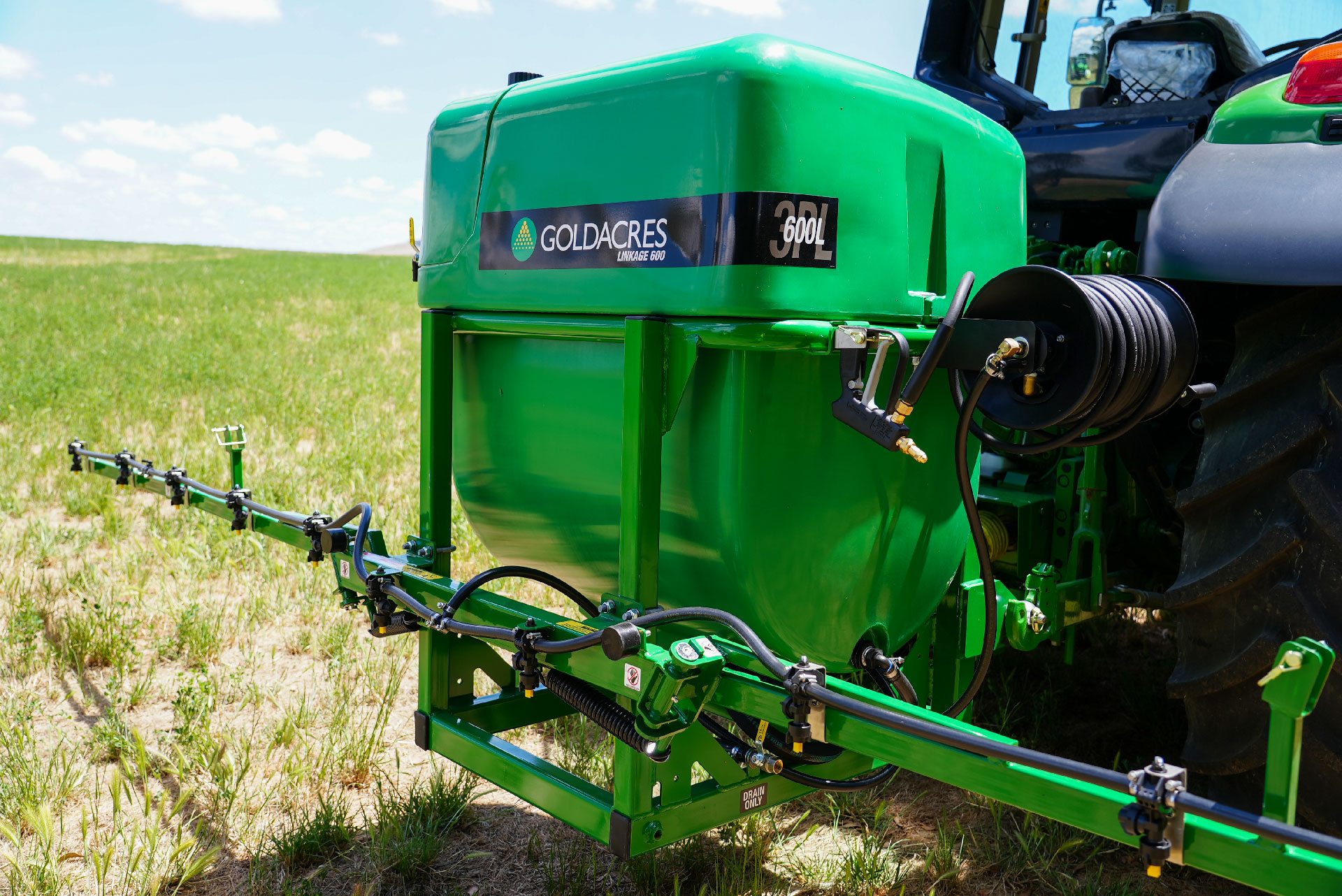

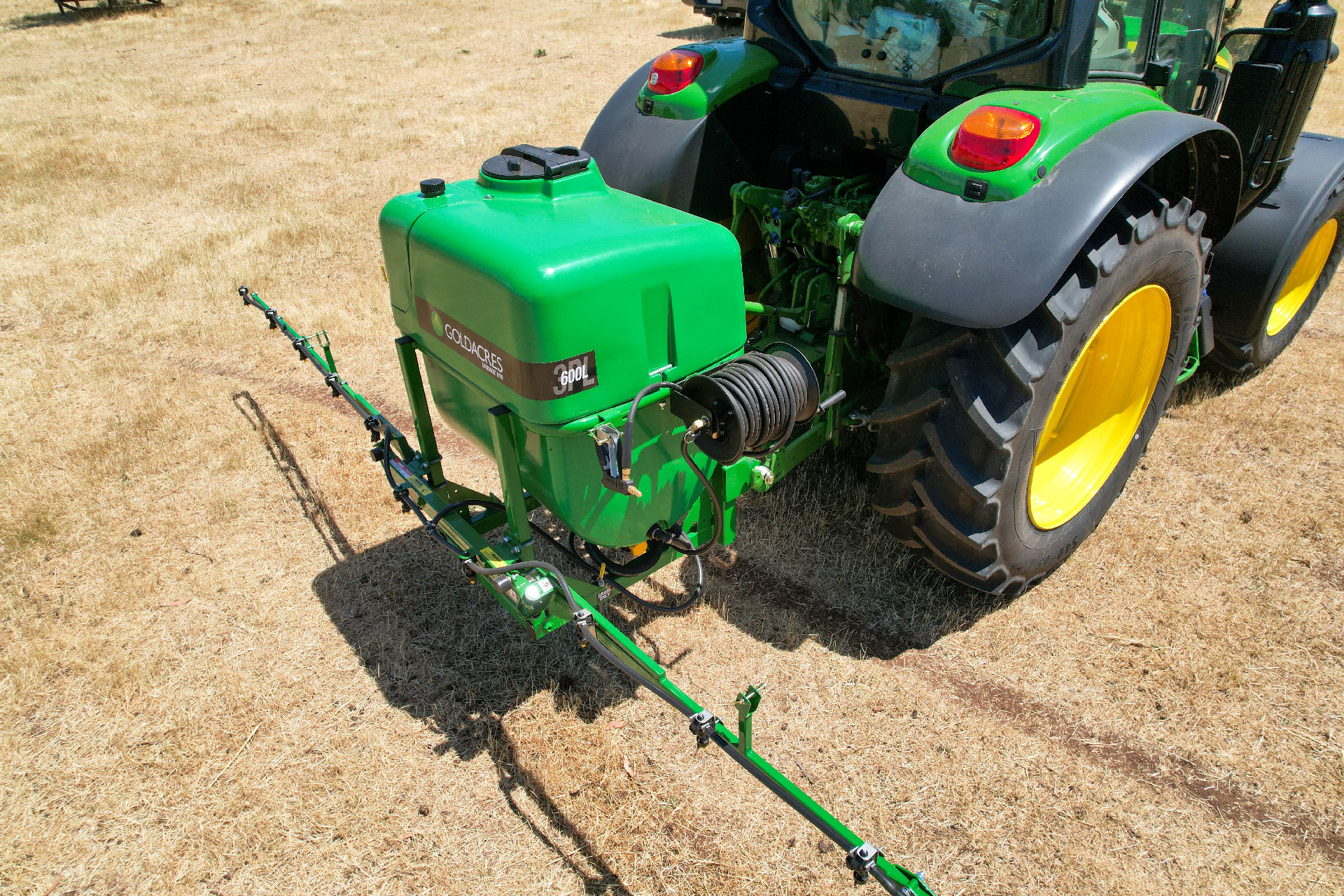

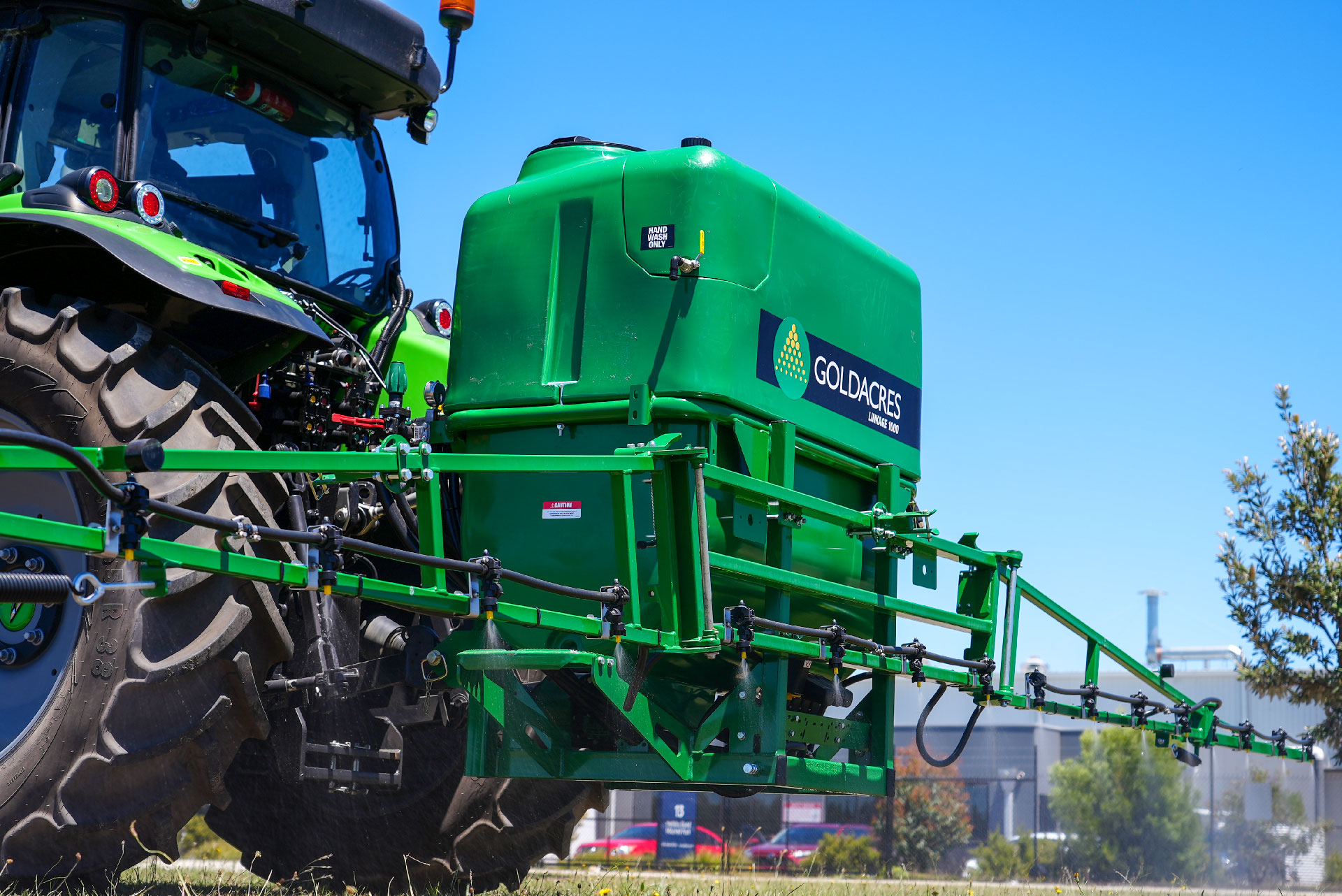

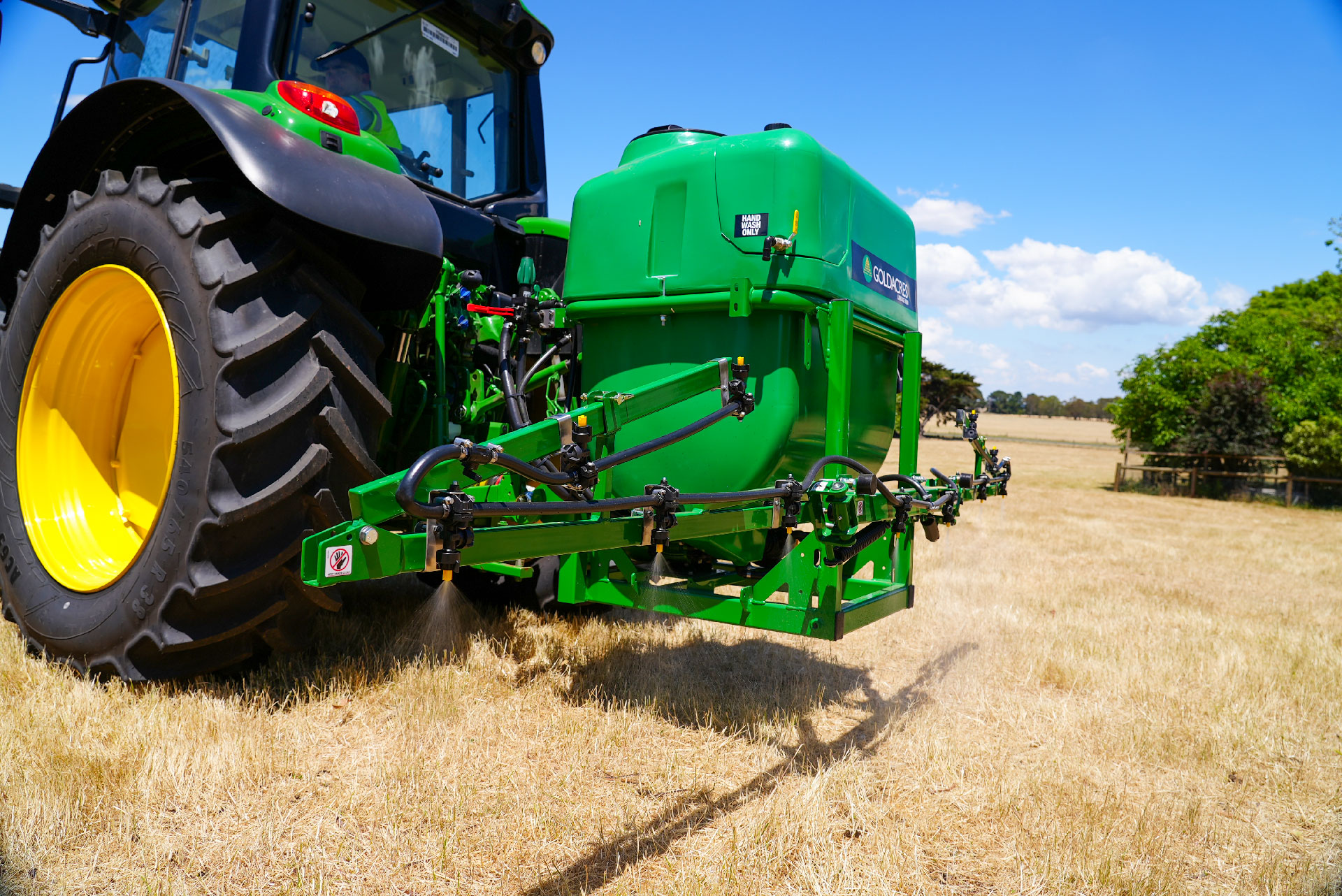

3PL Sprayer – Small Frame – 600-1000L

The small frame range of 3PL sprayers are the perfect blend of function and style with a wide range of models and options to suit just about every spraying situation.

Packed with quality components and features these sprayers are designed for operators who rely on their equipment to get the job done, year after year.

Typical uses

Features

1. The small frame 3PL chassis utilizes metric size Australian made steel to create a light yet extremely strong structure. The key to its strength is the combination of square hollow sections (SHS), rectangle hollow sections (RHS), pipe members and precision laser cut plates placed in strategic locations. All these sections are fully welded into a cube like structure which helps share the loads evenly around the frame.
2. Goldacres four stage paint process. 1. Grit blasting which cleans and prepares the steel surface for the ultimate paint adhesion. 2. High build primer / filler flattens out the surface and is key to giving the top coat not only an optimum substrate to adhere to but that smooth “wet” look. 3. Wet top coat using the highest quality Australian made paint. Specially formulated for Goldacres, the top coat provides a finish which has excellent mar resistance (the resistance to abrasive action like scratching) and also a very high tolerance to aggressive chemicals. 4. High temperature baking which cures the paint
3. Australian made rotationally moulded thick wall UV stable tank with an extra deep centre sump design. Smooth internal wall aids rinsing and decontamination. Sizes in 600, 800 & 1000L

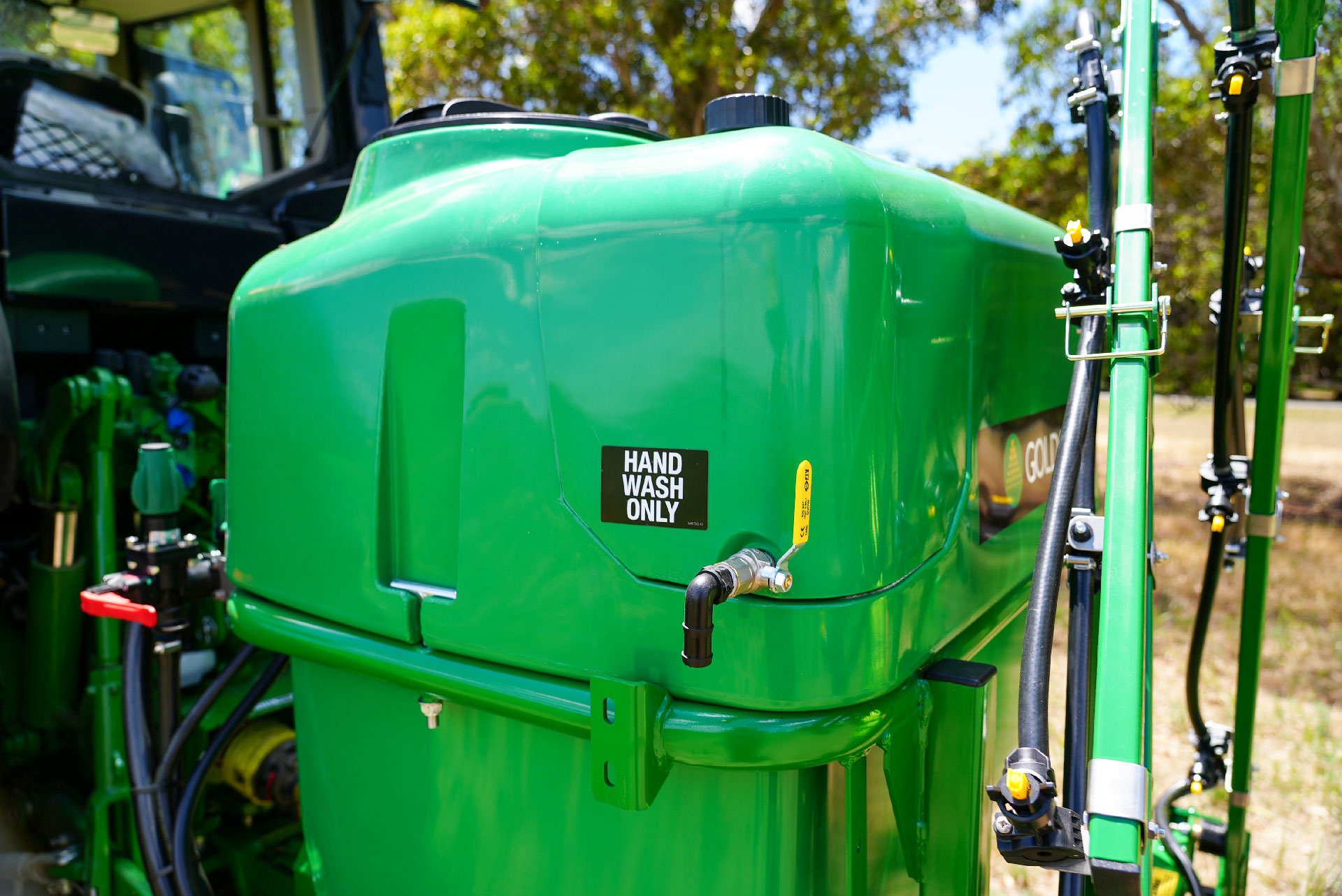

4. A 23L handwash tank is incorporated into the main tank, yet completely separated. This eliminates the possibility of any cross contamination between the clean water and the main tank mix .
5. Extra large hinged lid makes pouring in liquid or powder chemicals mess free.

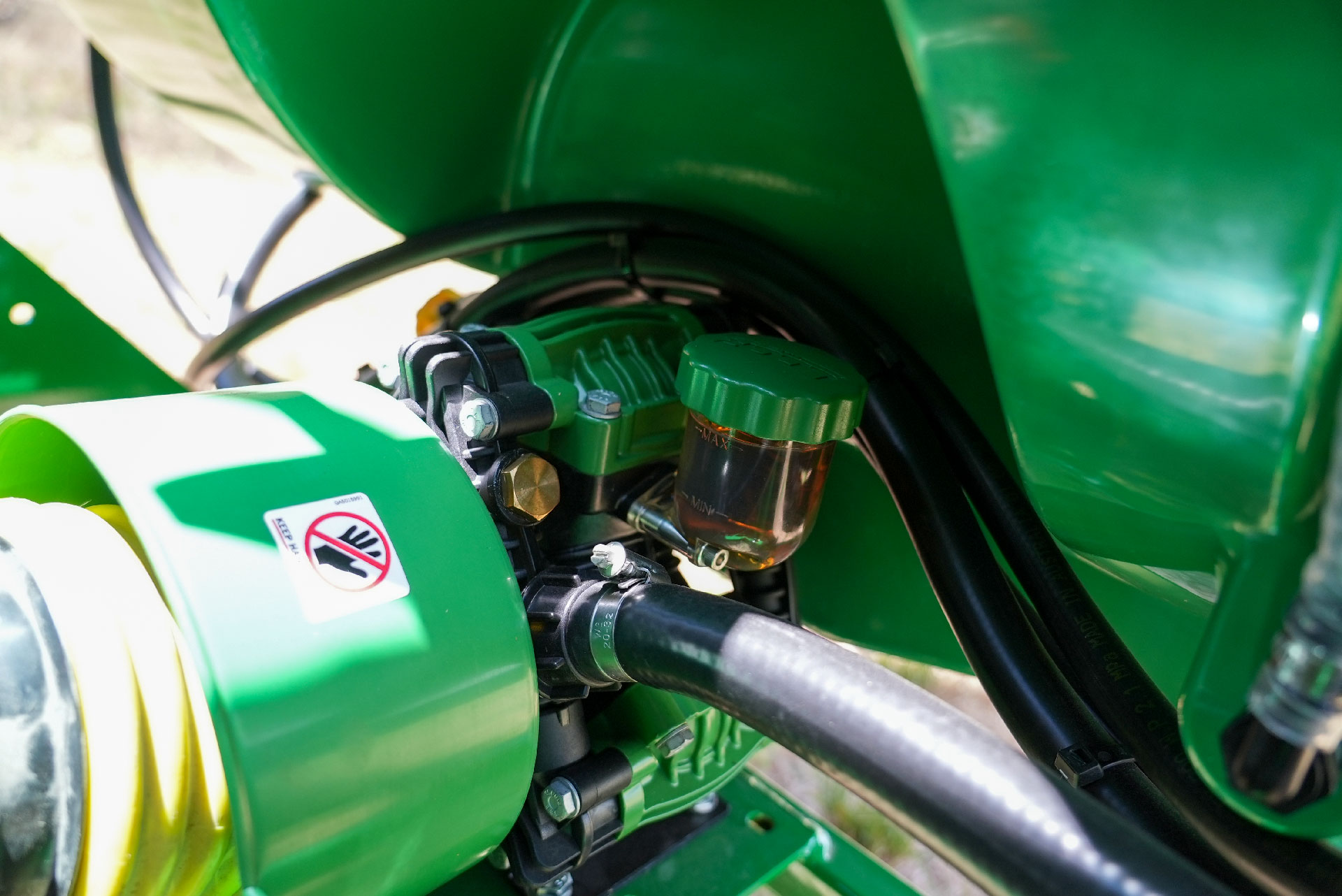

6. High volume high pressure three piston diaphragm pump with 540 rpm PTO shaft provides smooth consistent water flow to the boom or spray gun.

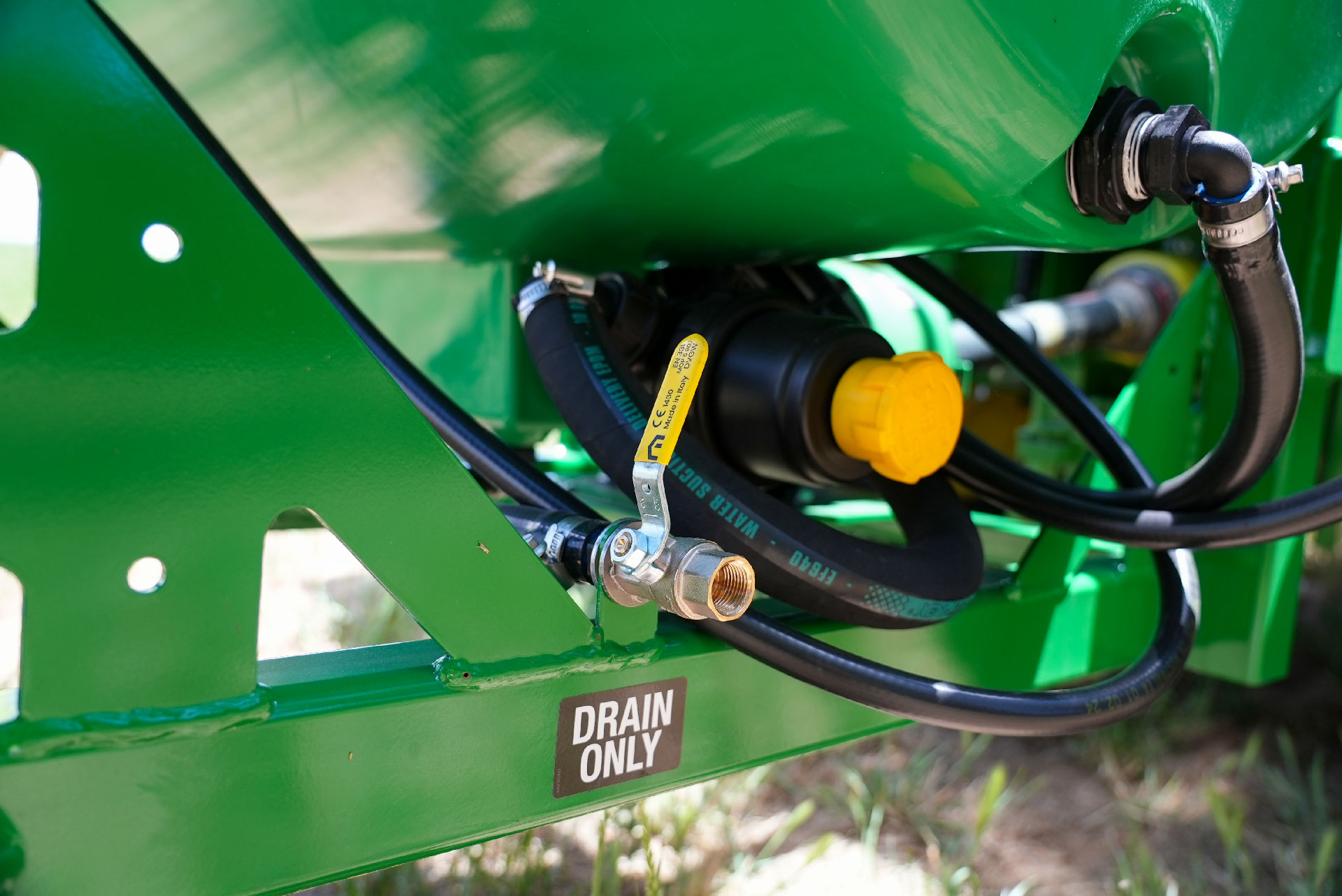

7. A pump suction filter with shut off allows the operator to remove and clean the strainer even when the sprayer tank is full. Suction filter stops contaminates entering the pump and greatly reduces the chances of nozzle blockages.

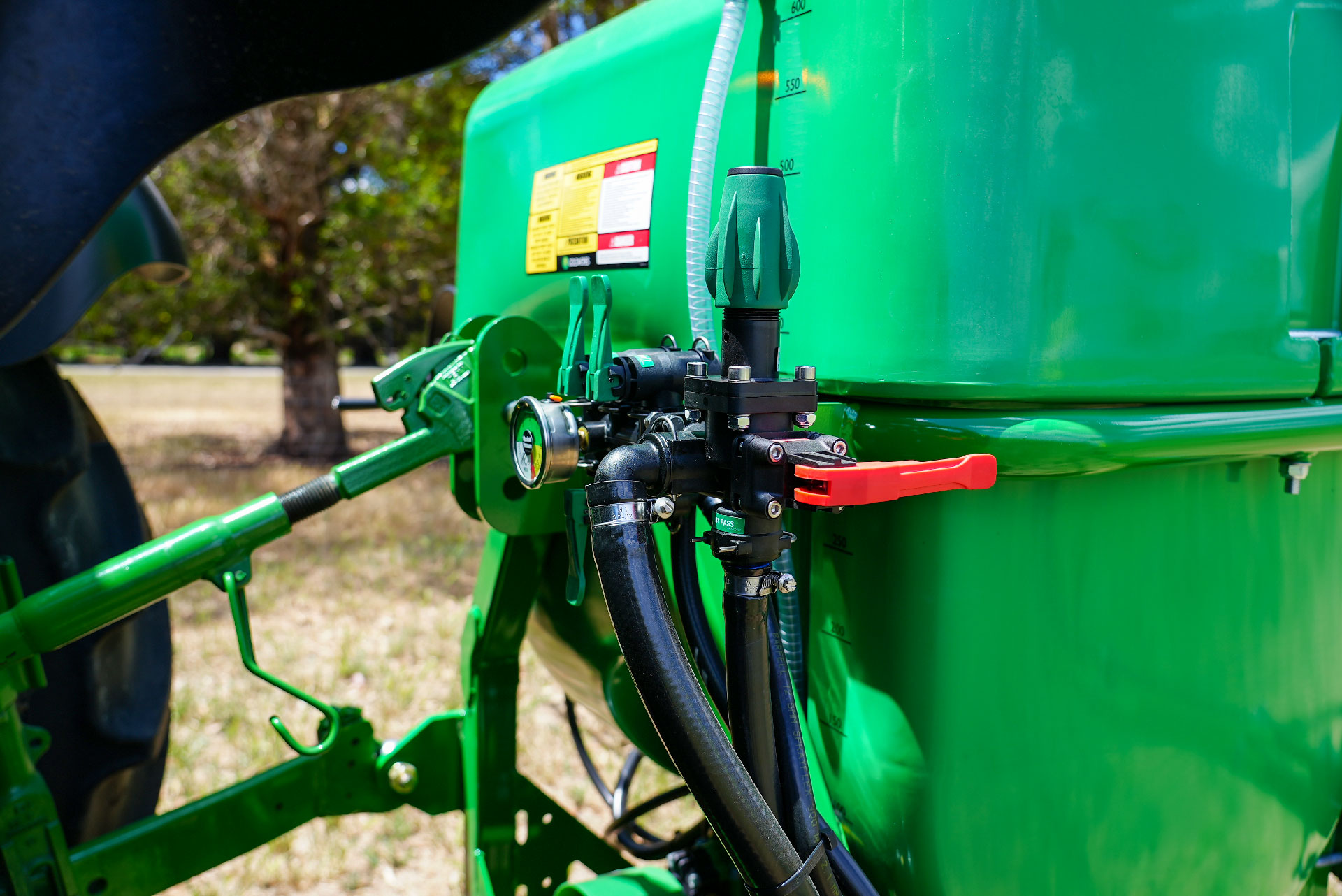

8. A three section manual control valve with master dump feature controls the flow to the spray gun plus left and right boom nozzles. An adjustable pressure regulator valve is fitted to set the maximum system pressure for precise spot or boom spraying control. Electric section and pressure regulation control can also be fitted for easy in cab adjustment.
9. All spray hoses are constructed using a Nitrile liner. This liner helps resist the effects of the most aggressive chemicals from damaging the hose.
10. Front mounted tank level sight tube allows the operator to visually check from within the tractor.

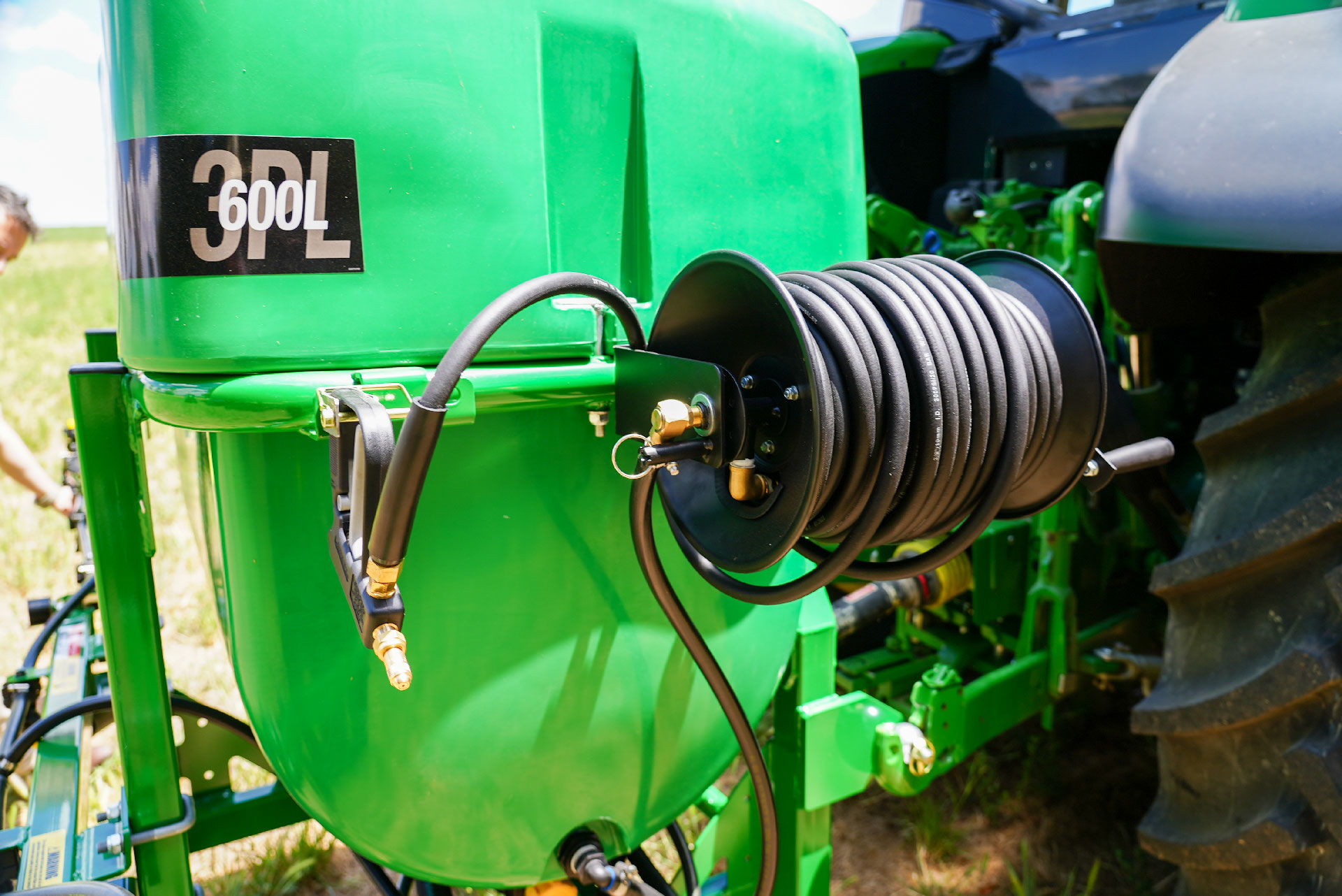

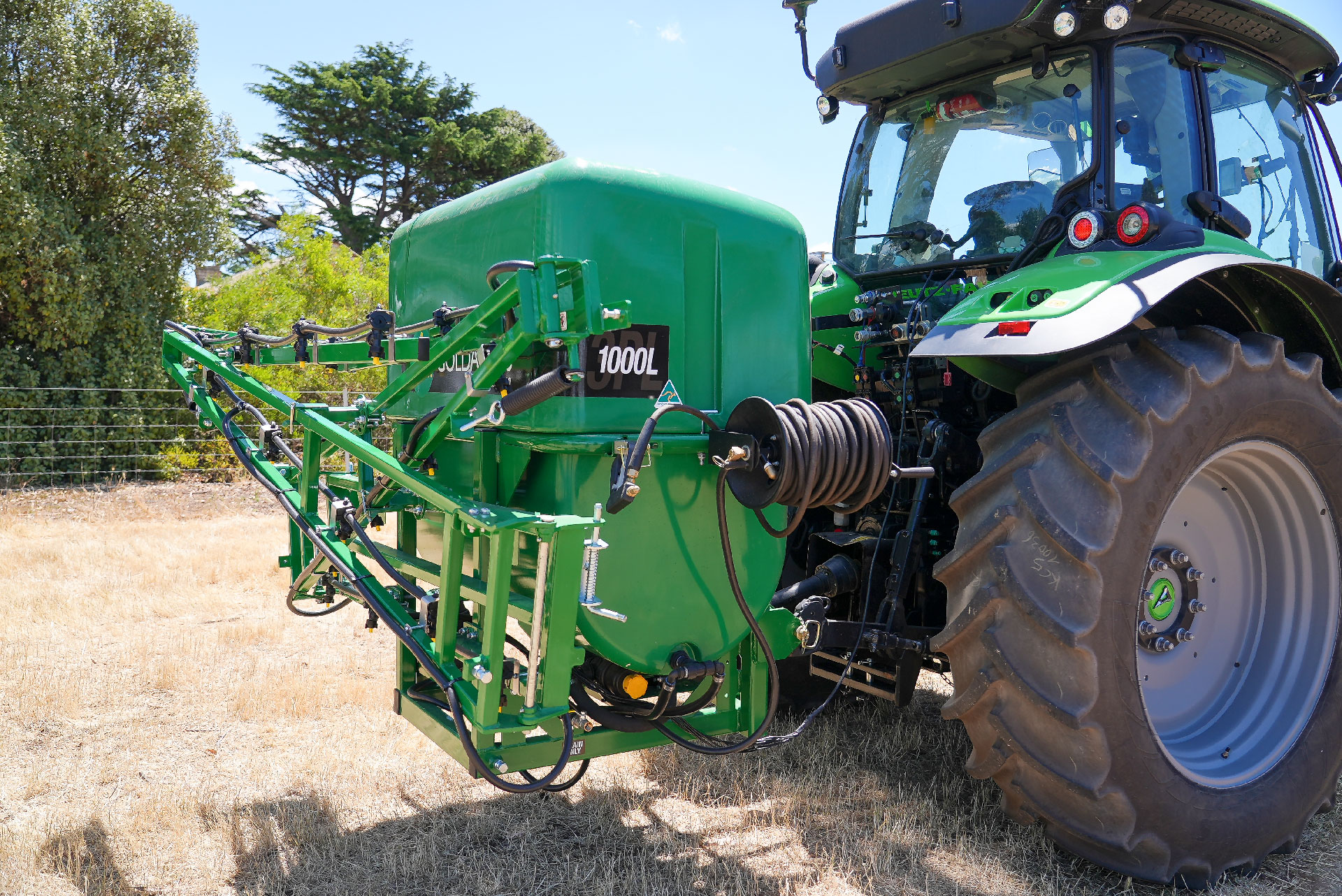

11. 30m hose reel (600 & 800L) and pistol grip spray gun with adjustable nozzle. 1000L has hose reel mounted to the side for easy access.

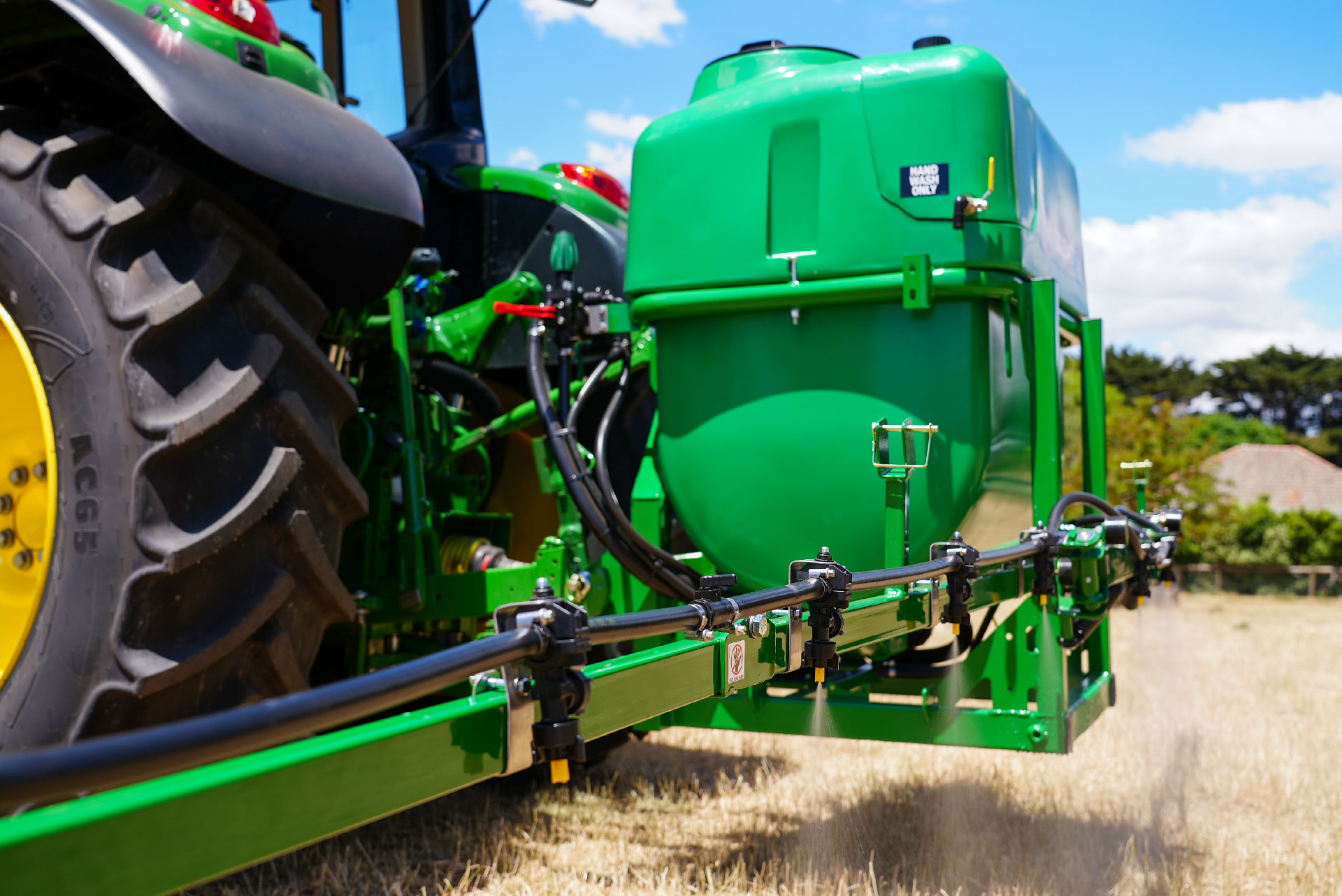

12. Booms, choose from 14 models ranging from 4m through to 12m in width.

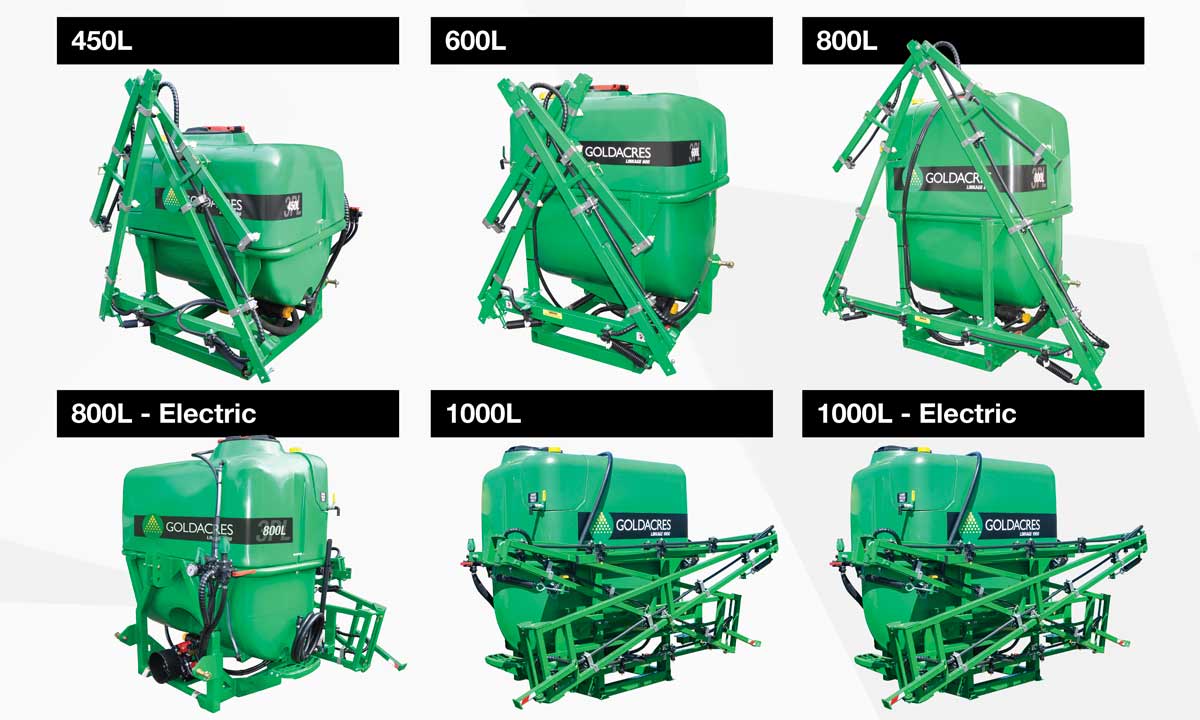

"Work Ready" Specifications

Features	600L GA4907155	800L GA4907160	1000L GA4907165	1000L electric GA4907175
Diaphragm pump 70l/min	Standard
Manual control 3 way	Standard		Standard	N/A
Electric control 3 way	N/A		N/A	Standard
Suction filter with shutoff	Standard
23L handwash tank	Standard
Side mounted 30m hose reel	Standard
AA30 gunjet	Standard
Access step	N/A		Standard
Maximum width boom that can be fitted	10m	12m

Configurable specifications

Features	600L	800L	1000L
70 l/min pump	Standard
85 l/min pump	Option
3 way manual contro l& regulator	Option
4 way manual control & regulator	Option
Electric section & regulator upgrade	Option
Automatic rate control SCS440	N/A		Option
Top mounted bottom fill	N/A	Option
Venturi Probe	Option
Foam marker doublesided 22L	Option
Single sided manual fenceline jet	Option
Single sided electric fenceline jet	Option
4m manual fold	Option
6m manual fold	Option
8m manual fold	Option
10m manual flatfold (galvanized)	N/A	Option
10m manual crossfold	Option
10m manual crossover	Option
10m hydraulic vertical fold	Option
12m manual flatfold	Option
12m manual crossover	Option
12m Krono hydraulic fold	Option
Lift kit to suit Krono boom	Option
Slant kit to suit Krono boom	Option
Vine boom 7 nozzle	Option
Vine boom double sided 8 nozzle	Option
Vine boom doublesided 12 nozzle	Option
Trijet nozzle bodies	Option

Weights

	600L	800L	1000L	1000L – Electric
Weights (kg)	189	210	261	265
