48m – TriTech V Series Hydraulic Boom

The all-new Goldacres TriTech 48m boom is a product of two years development, with over 40 years of boom manufacturing experience.

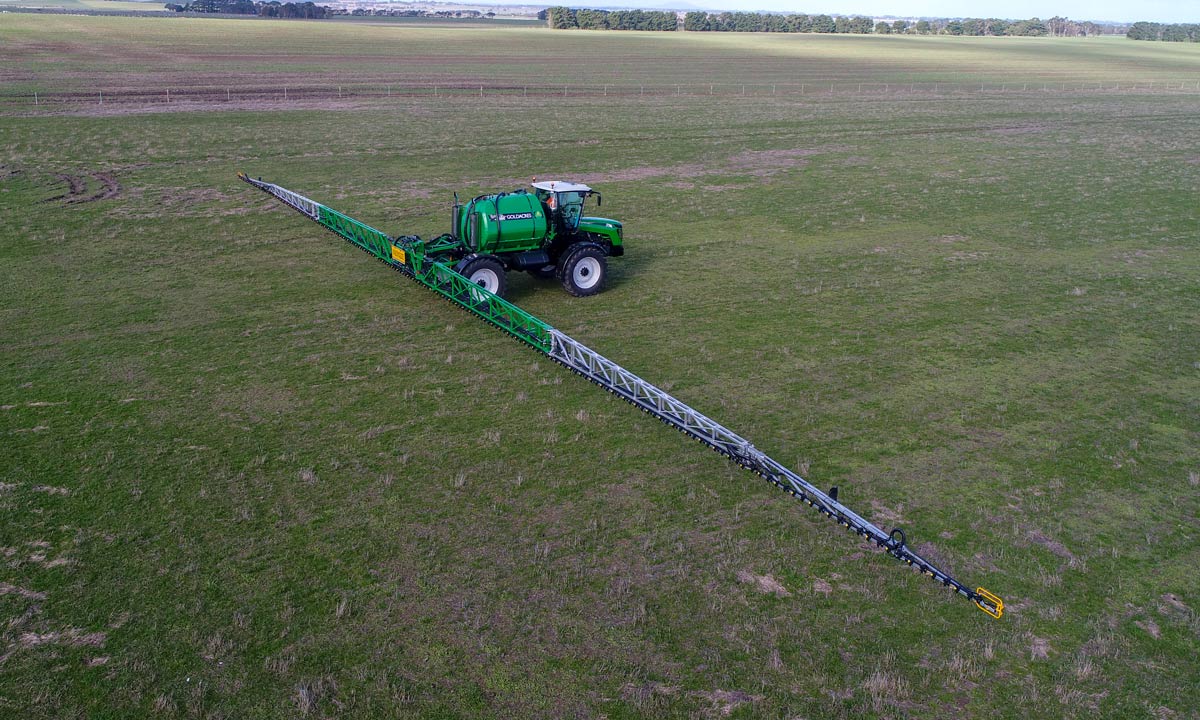

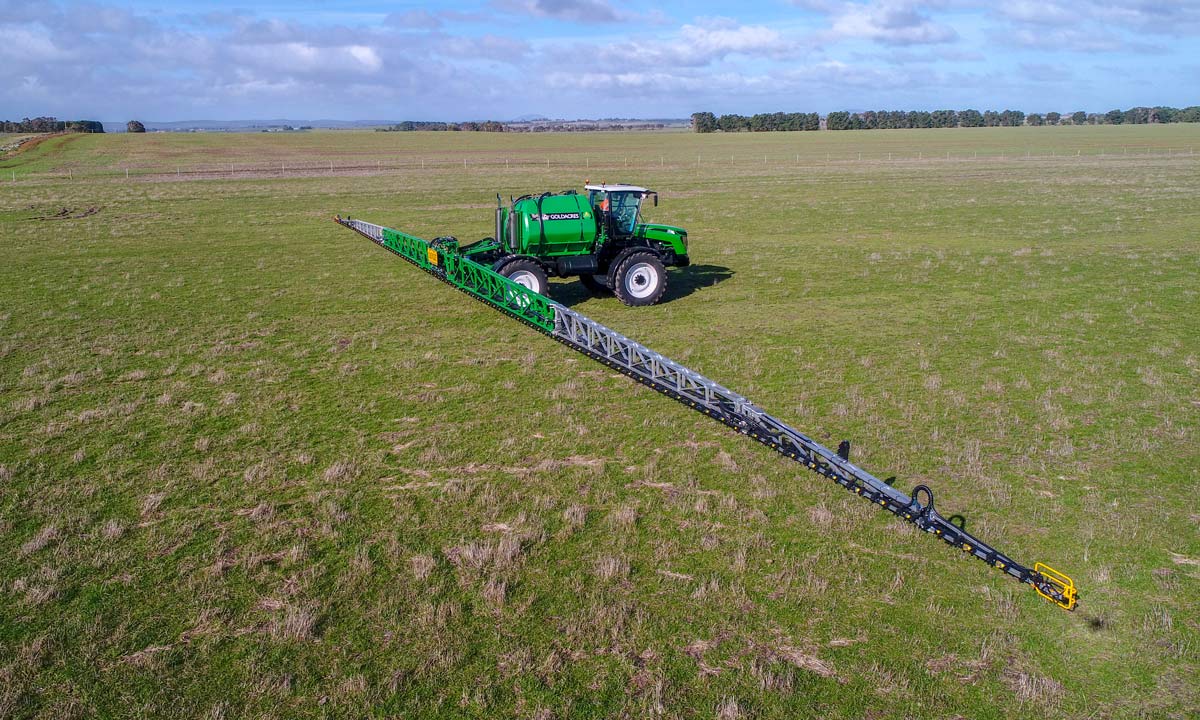

  • The design of the boom allows three working spray widths to be achieved; All open 48m overall width. Outer section folded back to give 36m width, midsection folded back gives 20m. (48/36/20)

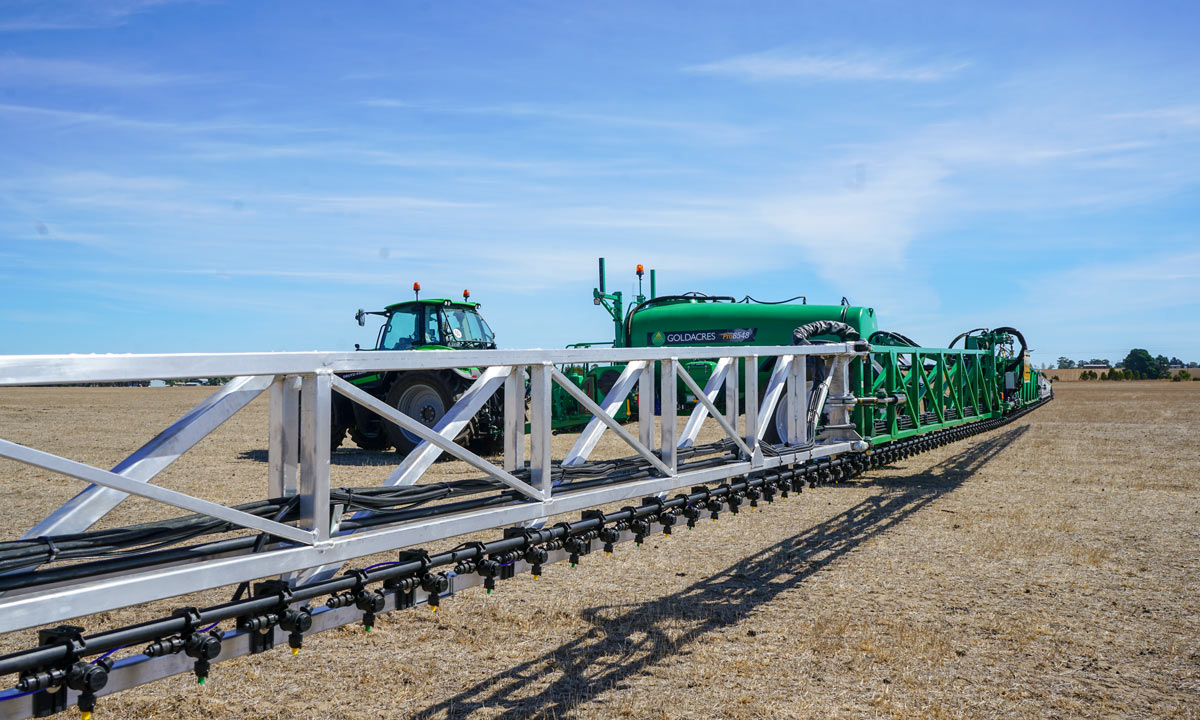

  • Exceptional strength using a lightweight trussed construction with the use of steel and aluminium and clever hydraulics for precise yaw and breakaway control with a frame design to allow a myriad of nozzle combinations to be used.
  • A deep and wide boom truss structure reduces stresses while increasing overall strength.
  • Outer wings feature a unique hydraulic break back and break forward function to help fight the forces of yaw boom while also providing security in the chance of a boom collision.

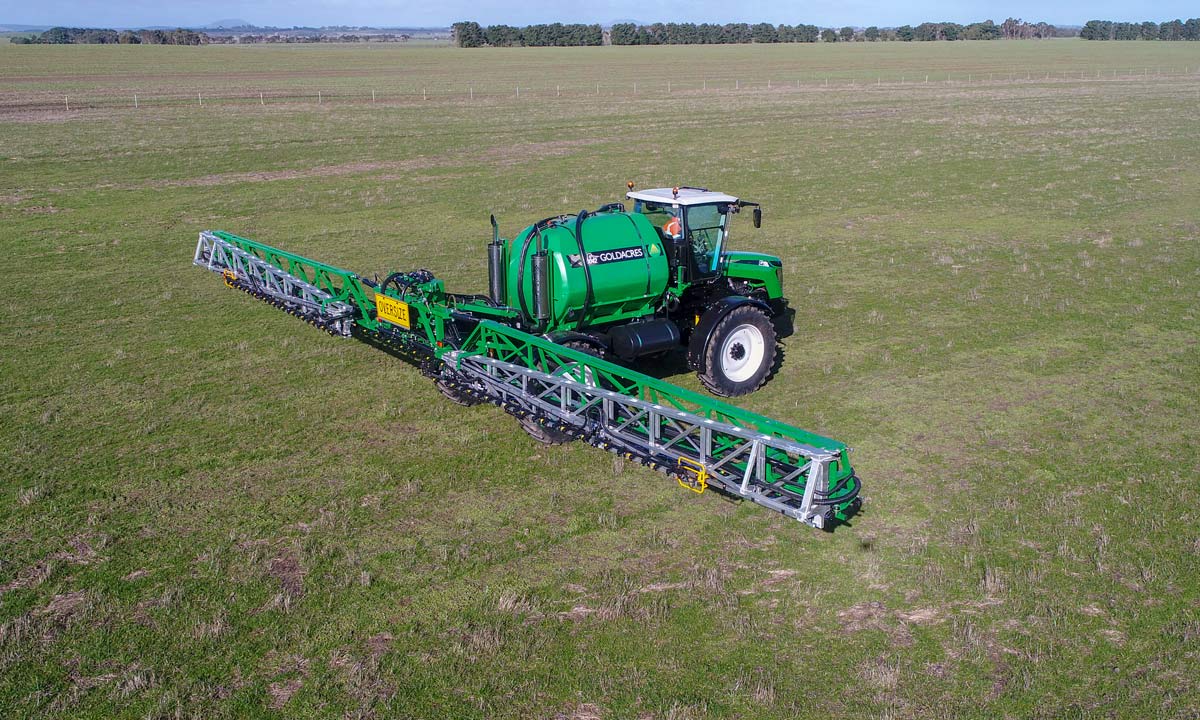

  • While using the boom in the folded 20m position the middle wing features a hydraulic latch to secure the outer and inner wing for increased boom rigidity and longevity.
  • Inner wings also feature forward and rearward hydraulic dampening as well as full yaw control.
  • The design incorporates a single spray bar that puts all spray nozzles in perfect alignment, allowing virtually any nozzle combination or configuration to be mounted on the boom.
  • Plumbing is increased to 1” poly tubing for reduced pressure drop resulting in more even nozzle flowrates.
3 spray widths
3 spray widths

Due to its tri-fold design, the 48m TriTech boom can be operated at three spraying widths, all wings folded out 48m, outer wings folded in to give a 36m spray width and outer and second boom section folded in to give a 20m spray width.

Available on these sprayers
Trifold 48, 36 & 20m Standard
Hydraulic yaw Standard
Boom wing tilt standard Standard
Centre level lock Standard
500mm broadacre nozzle plumbing Standard
Automatic height controlol Standard
Boom plumbed in 7 sections Standard
Boom plumbed in 8, 9, 10 or 16 sections Option
