Hawkeye® (PWM)

PWM technology uses a small electrically operated solenoid mounted to the nozzle body to control the flow rate delivered to each nozzle. The system rapidly pulses the nozzle on and off at rates of 10hz (10 times per second) whilst also adjusting the amount of time the nozzle is opened and closed (this is called the duty cycle). The spray line is set to maintain a constant liquid pressure, whilst the computer adjusts the duty cycle to vary the application rate. The system allows the selected nozzle to operate at a target droplet size independent of the forward speed (within the system and nozzle capacity)

Using the PWM technology also provides a method of providing turn compensation. When making a turn the inner wing tip speed slows and the outer wing tip speeds up, which in turn over and under applies chemical to the target. As each nozzle is controlled independently it is possible to adjust the duty cycle to either decrease or increase the application rate across the entire width of the boom.

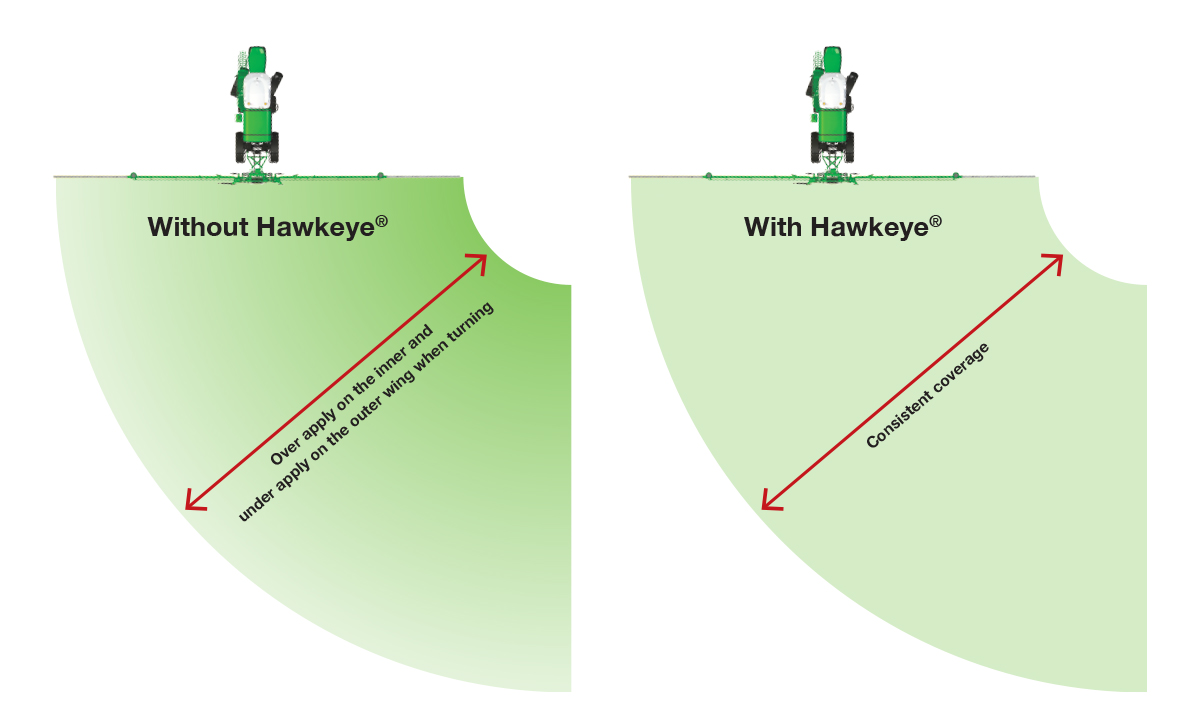

1 Without Hawkeye®

Over apply on the inner and under apply on the outer wing when turning.

2 With Hawkeye®

Consistent coverage when turning. Note: within nozzle parameters.
