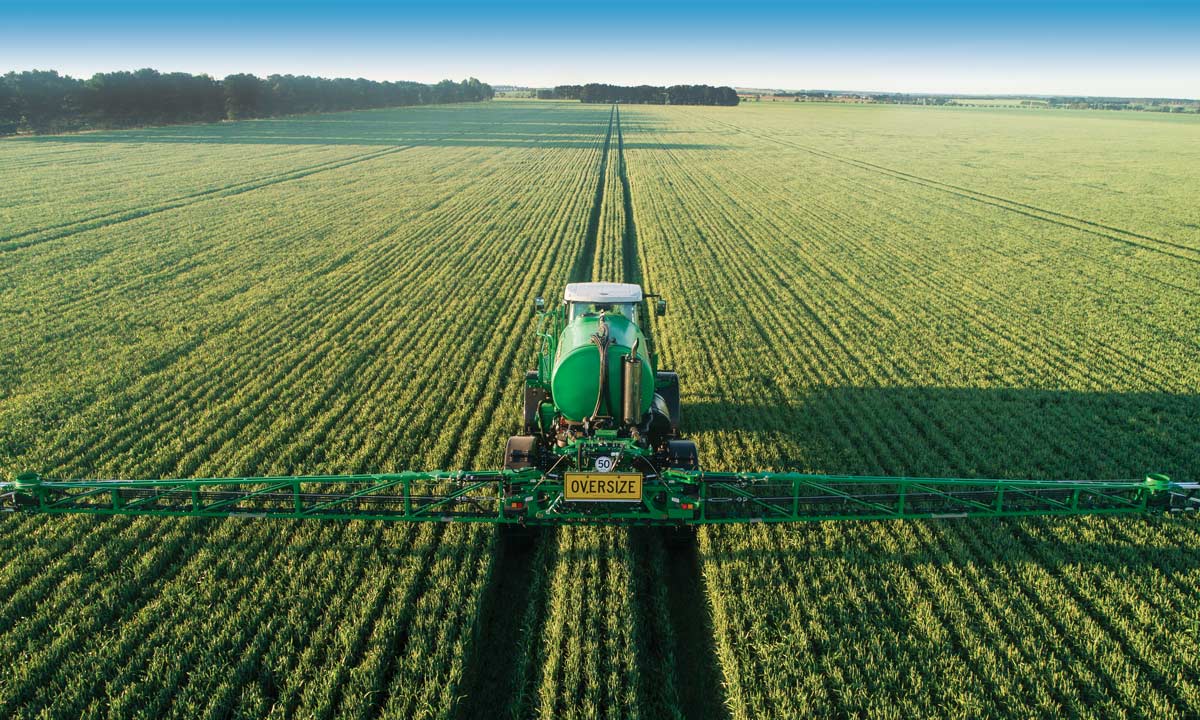

24, 28, 30, 33 & 36m – TriTech Hydraulic Booms

Strength, Stability, Reliability & Control.

The TriTech boom range is designed for operators who demand the utmost performance, reliability, and control. Time and time again the TriTech boom has been named “No.1 for boom stability”* which at the end of the day, results in a superior spray result.

Features such as hydraulic yaw which precisely controls the forwards and backward movement of the boom wings to minimise the under and over applying of chemical is now standard on all widths.

The strategically placed centre section suspension links help isolate the sprayer chassis movement over rough terrain. Combined with the tuned damping characteristics allows precise roll control enabling an optimal and consistent nozzle height to be maintained, even without the use of electronic height control systems.**

All TriTech booms are constructed using lightweight trussing techniques, which allows for a stronger design without weight, the enemy of boom agility.

*Kondinin group’s Farming Ahead magazine 2012, 2014 & 2017. **Height control systems may be required in some extreme situations. ^42m TriTech boom

Multiple boom widths
Sprayer 24m 28m 30m 33m 36m
3PL Large Frame
Prairie Special (4000-5000L)
Prairie Pro
G4 Crop Cruiser
G6 Crop Crusier
G8 Super Cruiser ✓*

*TriTech V Series boom fitted

Boom Suspension
Boom Suspension

Why is boom ride and stability so important?

A boom which bounces, sways or yaws deposits chemical unevenly on the target. This can result in weed escapes and may even contribute to resistant weeds.

The Goldacres TriTech suspension system has been developed to provide you with the best boom ride possible and assist in an accurate application. Working in conjunction with the chassis airbags the boom features three-way suspension that works to reduce boom pitch, roll, and yaw – the three enemies of accurate application. A combination of springs and shock absorbers, as well as hydraulic cylinders and accumulators all work together to provide the best boom ride possible. The TriTech suspension system has contributed to Goldacres consistently having the best boom ride when measured against competitor machines.

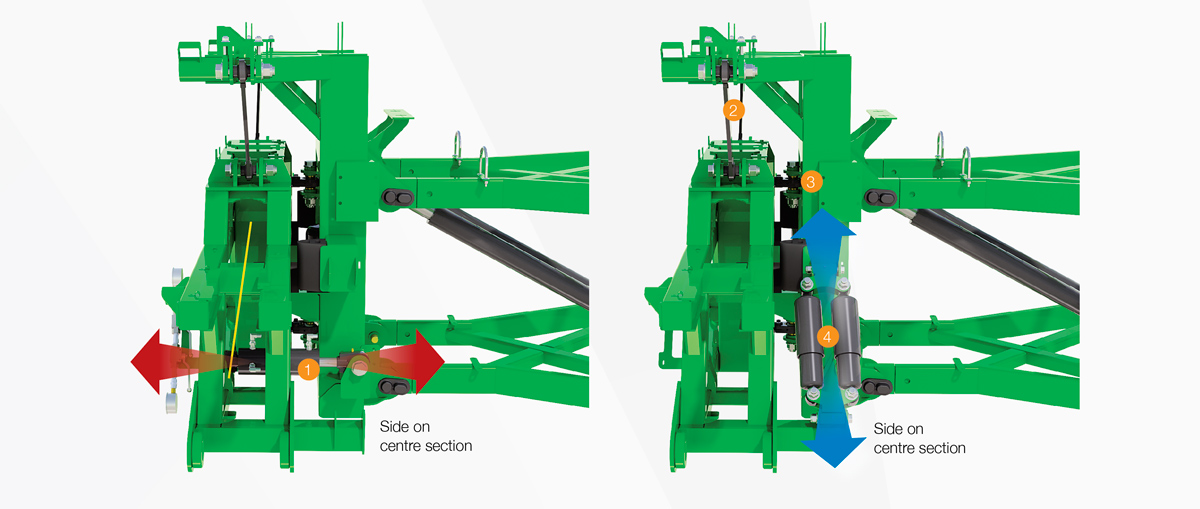

Hydraulic yaw
1. Two opposing hydraulic cylinders are mechanically connected together either side of the pivoting boom centre section. As the centre yaws, one cylinder is retracted, the other is extended. This results in oil movement which compresses in a nitrogen-charged accumulator. The result is precise boom yaw control.

Roll
2. Delta links – The key to the superior boom ride is the strategically placed delta links. In all, there are four links. Each link features spherical ball ends which allow the centre to move in all directions.
3. Roll centre point – The roll centre point is the location at which the boom pivots around, both in roll & yaw.
4. Roll dampeners – Reduces high-frequency oscillation of the boom roll.

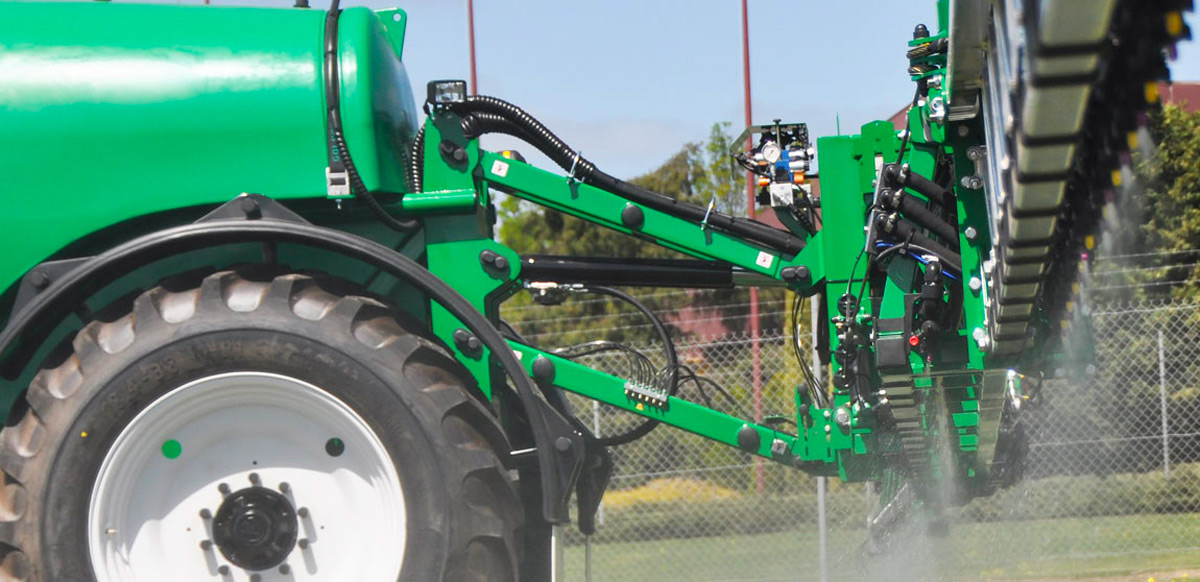

Parallelogram
The boom parallelogram lift provides 1200mm of boom height adjustment as well as the vertical boom suspension. The system is constructed of three heavy walled torque tubes and diagonal bracing to ensure less flexing which increases boom roll and yaw stability.

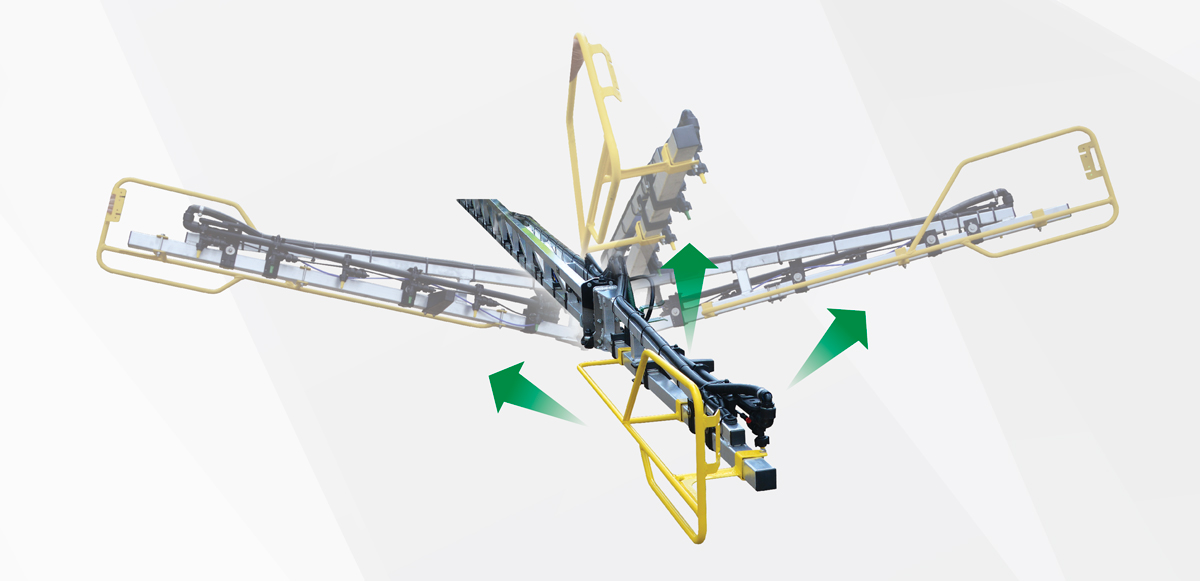

3D Breakaway
The end breakaway section protects the boom from stress damage if a ground, fence or tree strike occurs. The end section can break forwards, backwards and upwards. The spring mechanism uses an eccentric mounted sprocket and chain to provide maximum breakout force in the neutral position, then reduces the force the further the breakout.

Boom Options

Boom height control
The system will keep the boom at an entered preset height, allowing chemicals to be applied in an optimum spray pattern maximizing your inputs through consistent application and reduced spray drift.

Bi-fold
Spray with a boom folded into a narrower width when conditions are not suited to a wide boom.

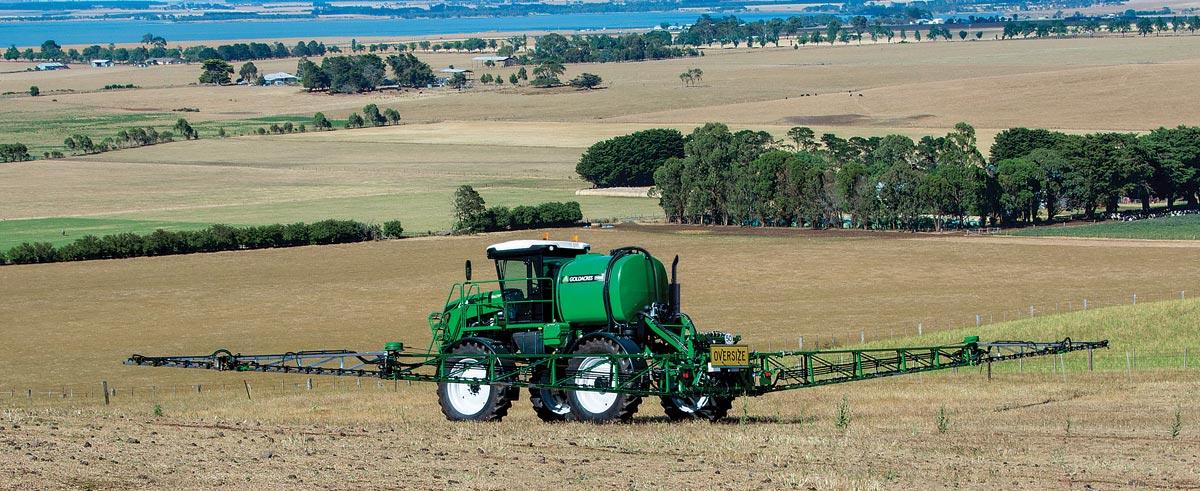

Wing Tilt
Handle undulating terrain with ease by adjusting the left or right wing with individual hydraulic tilt. This feature allows the wings to be raised or lowed to clear obstacles and maintain a consistent spray height

Application technology

RapidFire
Over the last several years there has been a greater shift to precision farming technologies, such as auto steering and automatic boom section control. Both of these technologies are aimed at reducing spray overlaps and unsprayed areas, the former potentially causing crop burning and overuse of chemical. Depending on the field size and shape the wastage can be quite substantial.
Goldacres have developed these practices further by introducing RapidFire air controlled nozzle shut off capability.

Traditional systems use motorised boom section valves to control water flow to the nozzles. Wider booms in conjunction with increased number of spray sections means a substantial amount of plumbing is required, thus increasing the delay in spray on and off times. In addition, the further the nozzle is from the centre of the boom the longer the delay becomes. RapidFire overcomes these problems by putting the switching capability right at the nozzle.

Small airlines at each nozzle switch the flow on and off in a fraction of a second, and more evenly across the boom width. Boom line plumbing is also greatly reduced, which quickens line priming and flushing as well as simplifies plumbing.

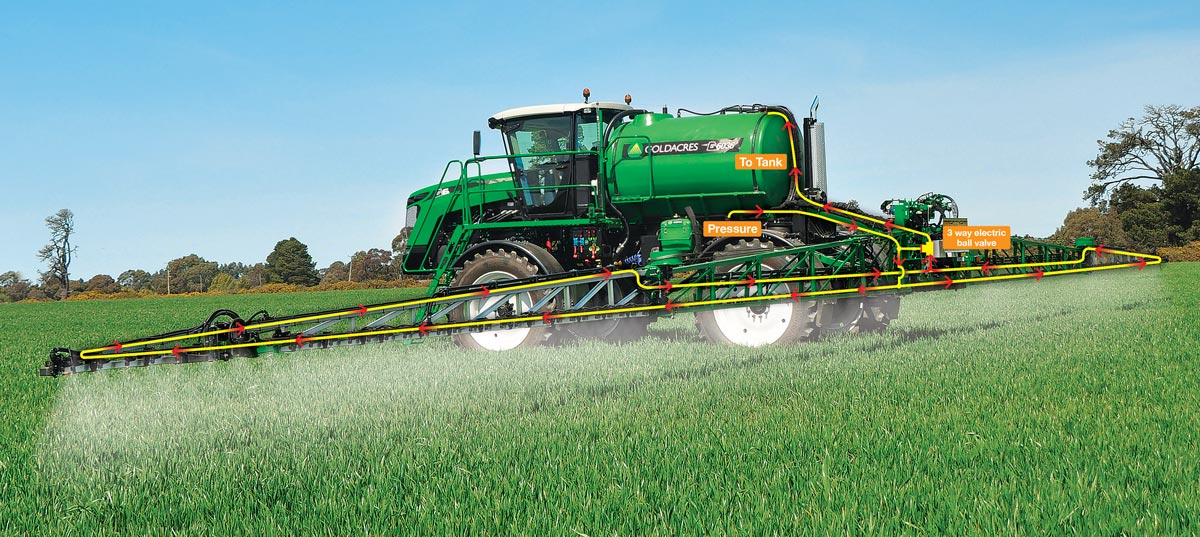

RapidFlow (Boom Recirculation)
RapidFlow – Boom Recirculation allows the sprayer boom lines to be fully primed from the driver’s seat without spraying a single drop. This reduces wastage at the start of a tank load or when switching chemicals. RapidFlow can also be used to thoroughly flush out the boom lines without the need to physically spray on the ground.

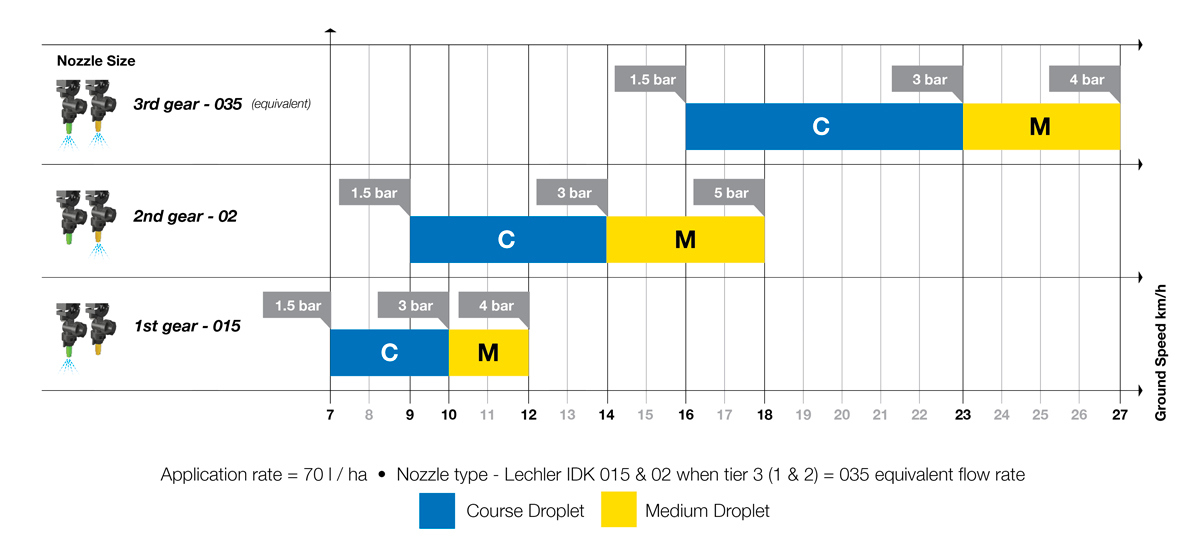

3TS (Three Tier System)
The spray nozzles operating pressure range and size determine the application rate and speed band at which the driver must adhere to. This band is usually quite narrow. To overcome this Goldacres offer a 3 tier system (3TS) which effectively gives the driver a much wider operating band whilst still maintaining optimum droplet size. Think of 3TS as a three-step gearbox. Each nozzle type has an operating pressure band for a given droplet size. As the first nozzle reaches the top of the pressure band it switches off and the next larger size nozzle switches on. When that nozzle reaches the top of that pressure band the first nozzle will switch on again, effectively giving three operating bands.



3TS Pro
The 3TS – Pro is our 3TS system with an extra nozzle added to give a total of 3 nozzles. This allows seven nozzle combinations to be used, which offers many flow rates and speed variations without manually changing the nozzles.
3 different nozzle sizes working on a tiered system can give the operator virtually any flow rate and desired speed range.

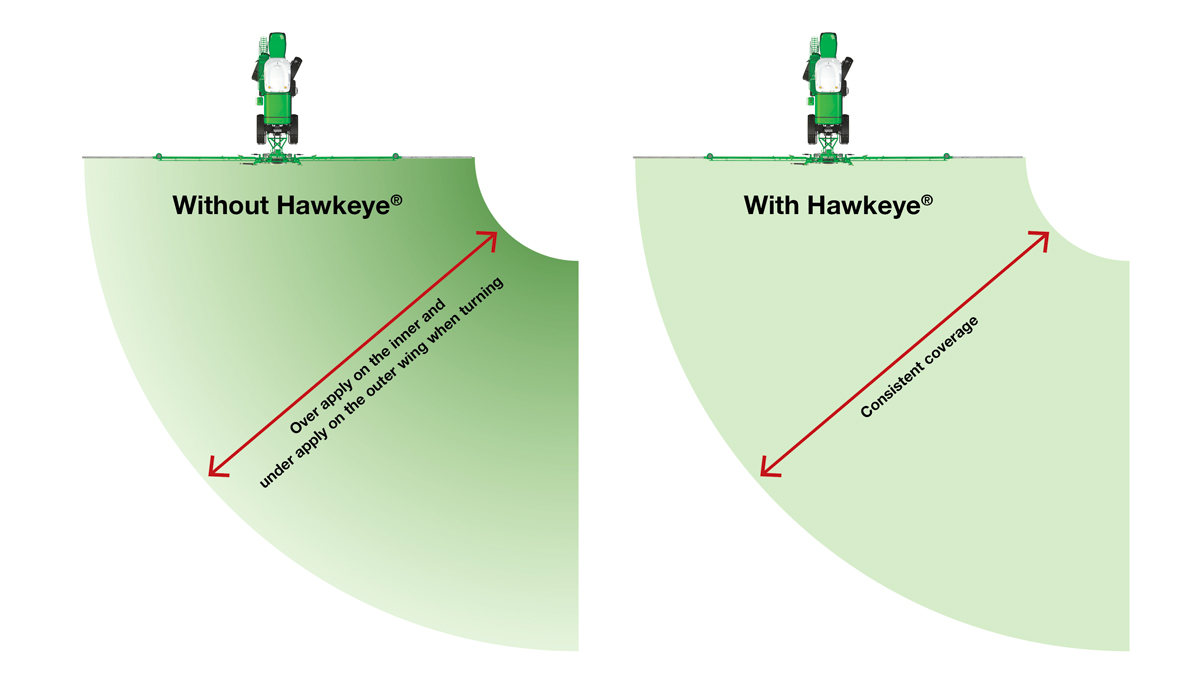

Raven Hawkeye® HD nozzle control
The Hawkeye HD Nozzle Control System is a pressure based product control system which allows for precise sprayer application in a variety of conditions, reducing spray drift and getting the most out of every nozzle.

Each nozzle is controlled by its own individual pulsing valve giving you a consistent spray pattern as speed and conditions change.

The Hawkeye System is built on the ISOBUS communication platform which allows it to work with ISO Task Controllers, including the Viper® 4+. Hawkeye has also been tested for shock, vibration, impact, and weather resistance in rugged terrain and extreme temperatures. Its durability is unparalleled.

Benefits & Features

  • Precise application rate in a variety of conditions
  • Consistent coverage
  • Wide speed range
  • Ability to manage drift and off-target applications
  • Accurate droplet size and placement
  • Nozzle-by-nozzle turn compensation standard
  • Extended range out of each nozzle
  • Blended pulse application
  • Mapping and data logging of each nozzle for more accurate record-keeping
  • Adjustable pressure on the fly including 2 preset pressures
    – Provides individual nozzle on/off with a simple software unlock, no change in hardware required
    – Reduces costly skips or overlaps
    – Individual nozzle shut-off
Sprayer RapidFlow RapidFire 3TS 3TS Pro Hawkeye
3PL Large Frame N/A N/A N/A N/A N/A
Prairie Special (4000-5000L) N/A N/A N/A N/A N/A
Prairie Pro Option Option Option N/A N/A
G4 Crop Cruiser Option Option Option Option N/A
G6 Crop Cruiser Option Option Option Option Option
G8 Super Cruiser Option Option Option Option Option
Plumbing options
Availability 3PL Large Frame Prairie Special (4000-5000L) Prairie Pro G4 Crop Cruiser G6 Crop Crusier G8 Super Cruiser
TriJets
Clock face 500mm spacing
TriJets
Clock face 250mm spacing
TriJets
Turret design 500mm spacing
TriJets
Turret design 250mm spacing
RapidFire with RapidFlow
500mm spacing
RapidFire with RapidFlow
250mm spacing
3TS, RapidFire with RapidFlow
500mm spacing
3TS, RapidFire with RapidFlow
250mm spacing
RapidFire with RapidFlow
500mm spacing with TriJets
RapidFire with RapidFlow
250mm spacing with TriJets
3TS, RapidFire with RapidFlow
250mm spacing (staggered) with TriJets on tier 1
3TS, RapidFire with RapidFlow
250mm spacing (staggered) with TriJets on tier 1 & 2
